OEM System Circuits: Clock: Notes

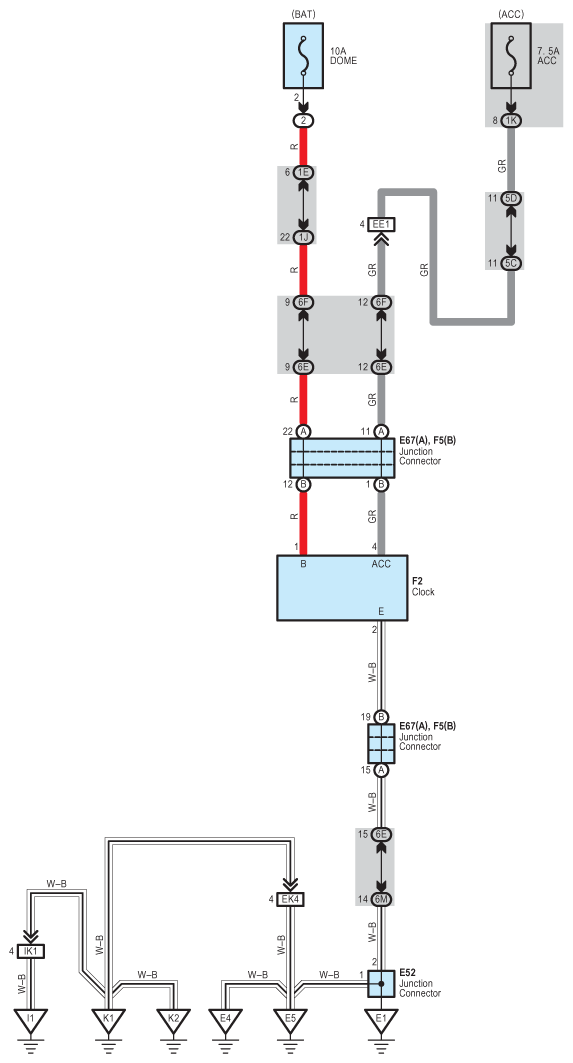

Fig 1: Clock System Wiring Diagram

G08843638

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
