FJ Cruiser 4WD, Part Time T/Case Control
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Rear Differential Lock
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Rear Differential Lock: Notes

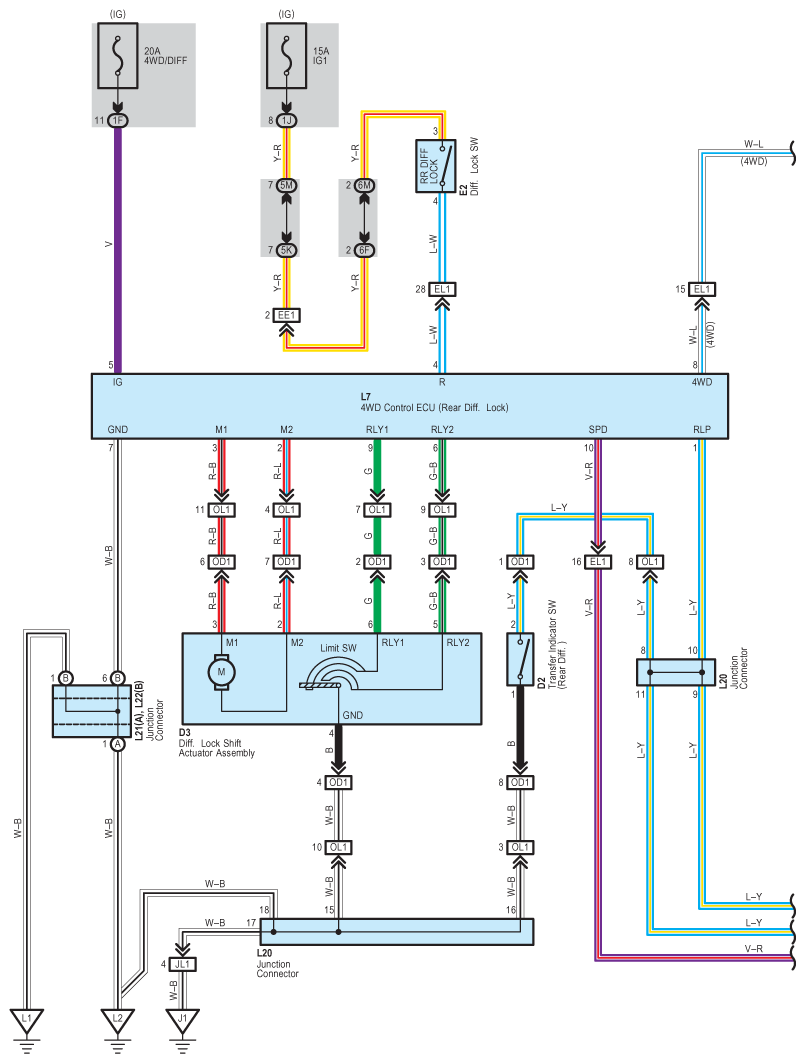

Fig 1: Rear Differential Lock System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

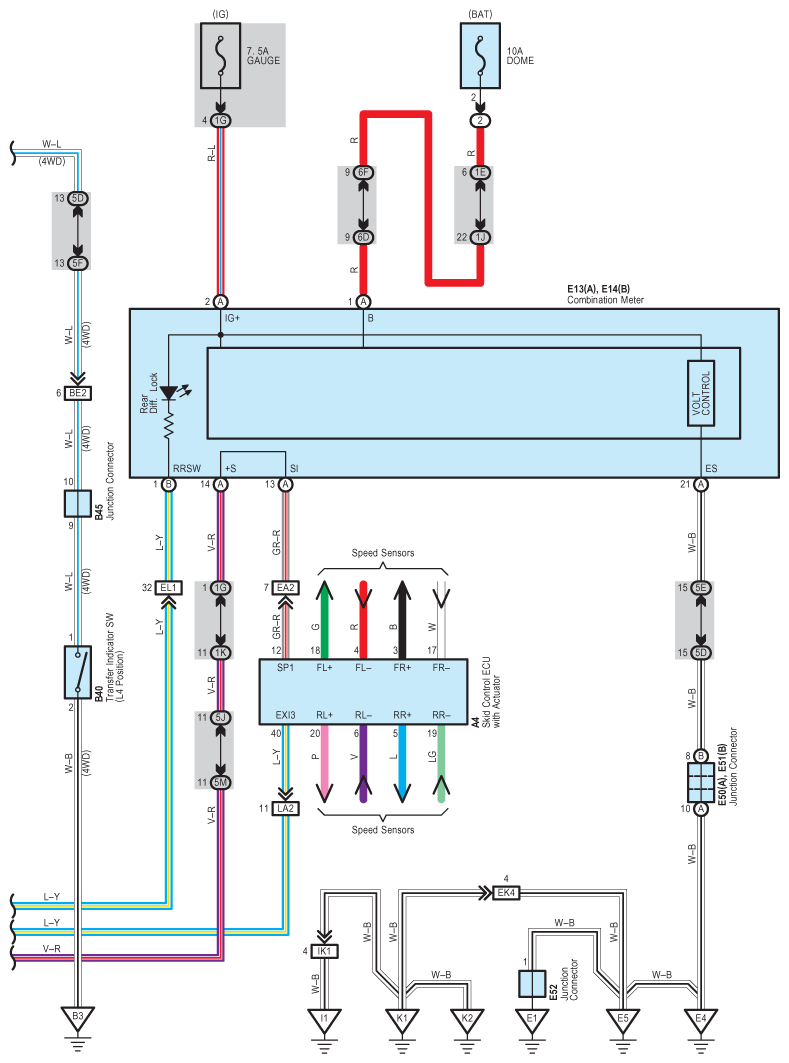

Fig 2: Rear Differential Lock System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
