Fuel Pump: Components: Illustration

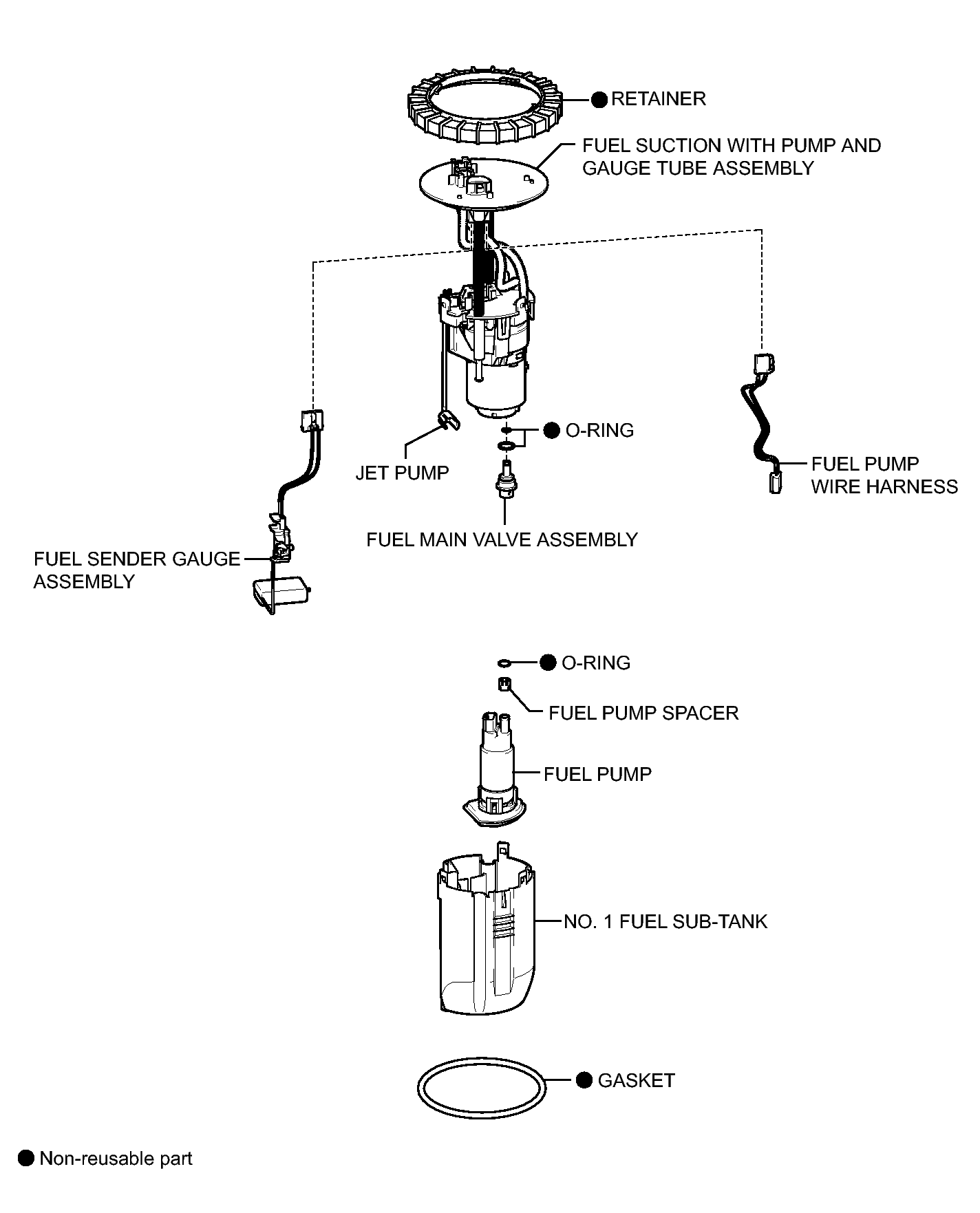

Fig 1: Exploded View Of Fuel Pump Replacement Components
GTY309266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
