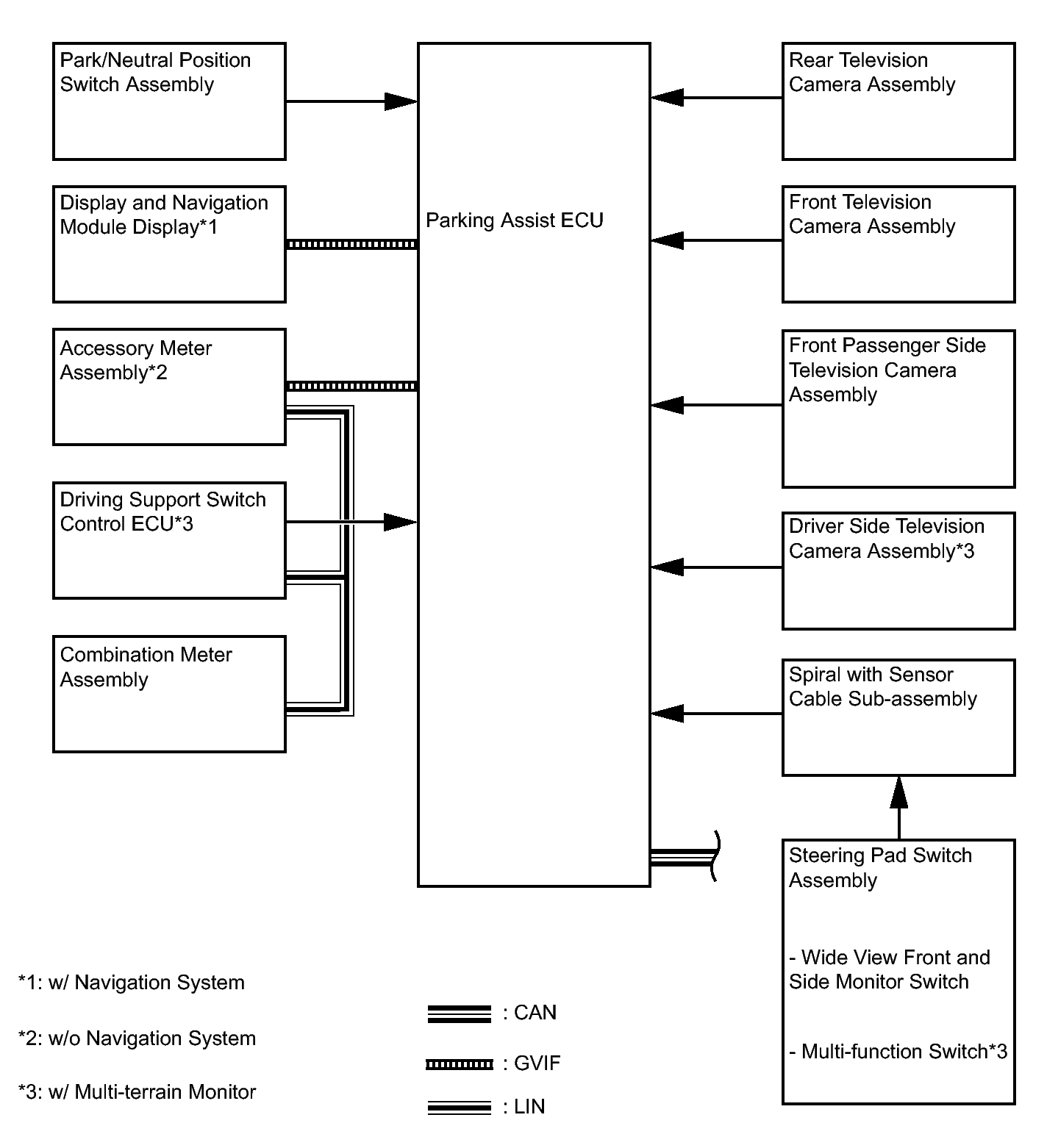

System Diagram
WARNING: This page is about a different car, the 2012 Lexus GX 460. However, it is still accessible from the selected car via links, so may be relevant.
COMMUNICATION TABLE
| Sender | Receiver | Signal | Line |
|---|---|---|---|
| Parking Assist ECU |
|
Display signal | GVIF |
| Driving Support Switch Control ECU |
|
Operation information received from the multi-function switch of the steering pad switch assembly which is displayed on multi-information display in the combination meter assembly and accessory meter assembly*2 | LIN |
| Skid Control ECU | Parking Assist ECU | Vehicle speed signal | CAN |
| Main Body ECU | Parking Assist ECU | Back door courtesy light switch signal | CAN |
| ECM | Parking Assist ECU |
|
CAN |
- *1: w/ Navigation System
- *2: w/o Navigation System
