Parts Location: Illustration

WARNING: This page is about a different car, the 2012 Lexus GX 460. However, it is still accessible from the selected car via links, so may be relevant.

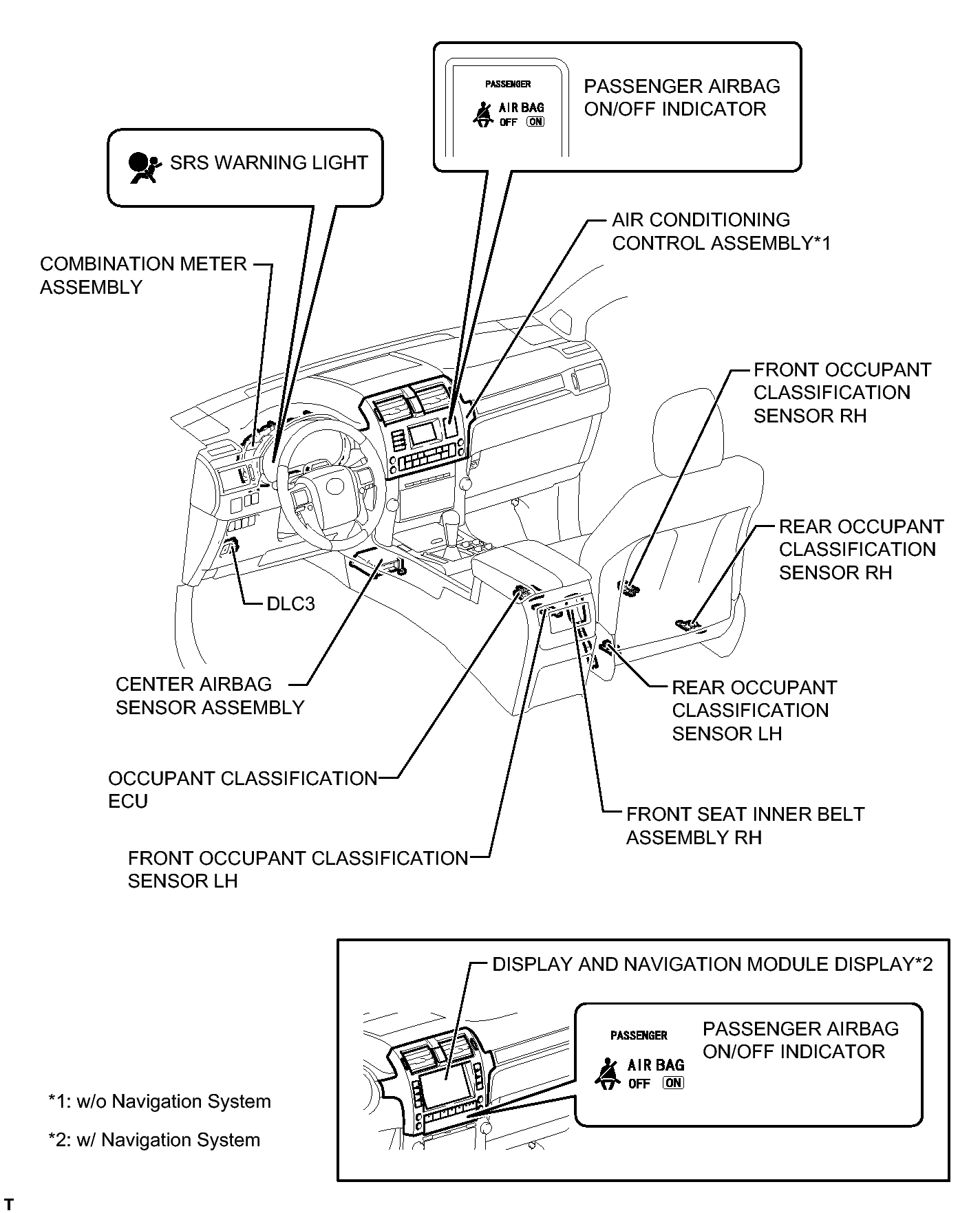

Fig 1: Identifying Occupant Classification System Component Location
GTY266172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
