Air Fuel Ratio Sensor: Installation: Installation
WARNING: This page is about a different car, the 2012 Lexus GX 460. However, it is still accessible from the selected car via links, so may be relevant.

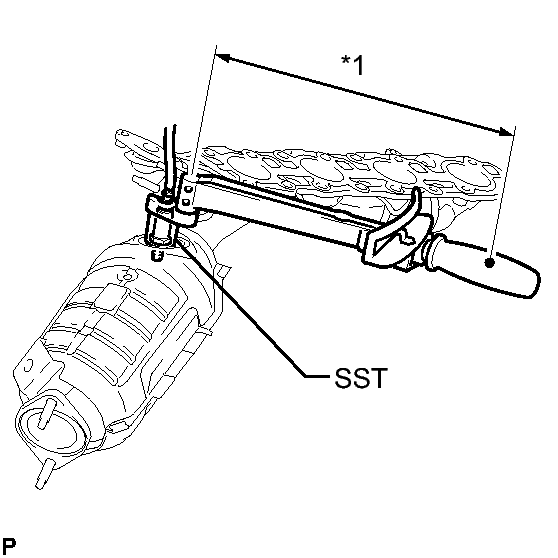

- INSTALL AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)
- Temporarily install the air fuel ratio sensor to the exhaust manifold RH by hand.
- Using SST, tighten the air fuel ratio sensor.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- SST: 09224-00010
without SST
Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)
with SST
Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)
TEXT IN ILLUSTRATION*1 Fulcrum Length HINT:
- Use a torque wrench with a fulcrum length of 30 cm (11.8 in.). When using a torque wrench with a fulcrum length that is not 30 cm (11.8 in.), calculate the torque specification for the torque wrench and SST based on the "without SST" torque specification. Refer to PRECAUTION .
- Make sure SST and the wrench are connected in a straight line.

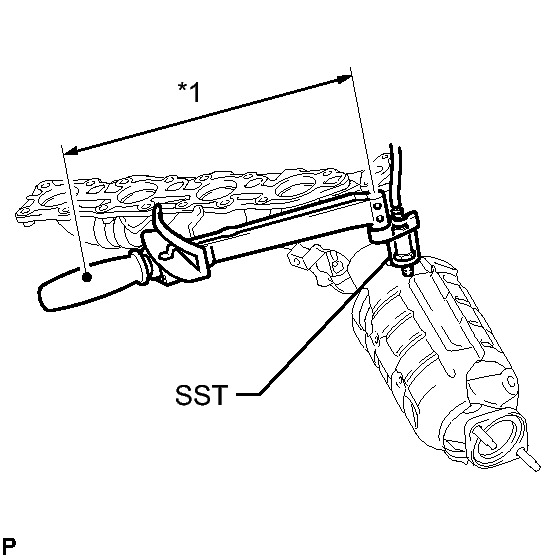

- INSTALL AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)
- Temporarily install the air fuel ratio sensor to the exhaust manifold LH by hand.
- Using SST, tighten the air fuel ratio sensor.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- SST: 09224-00010
without SST
Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)
with SST
Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)
TEXT IN ILLUSTRATION*1 Fulcrum Length HINT:
- Use a torque wrench with a fulcrum length of 30 cm (11.8 in.). When using a torque wrench with a fulcrum length that is not 30 cm (11.8 in.), calculate the torque specification for the torque wrench and SST based on the "without SST" torque specification. Refer to PRECAUTION .
- Make sure SST and the wrench are connected in a straight line.
- INSTALL EXHAUST MANIFOLD ASSEMBLY
- Install the exhaust manifold. Refer to INSTALLATION .
- INSPECT FOR EXHAUST GAS LEAK . Refer to INSTALLATION - Step 17
