Parts Location: Illustration

WARNING: This page is about a different car, the 2012 Lexus GX 460. However, it is still accessible from the selected car via links, so may be relevant.

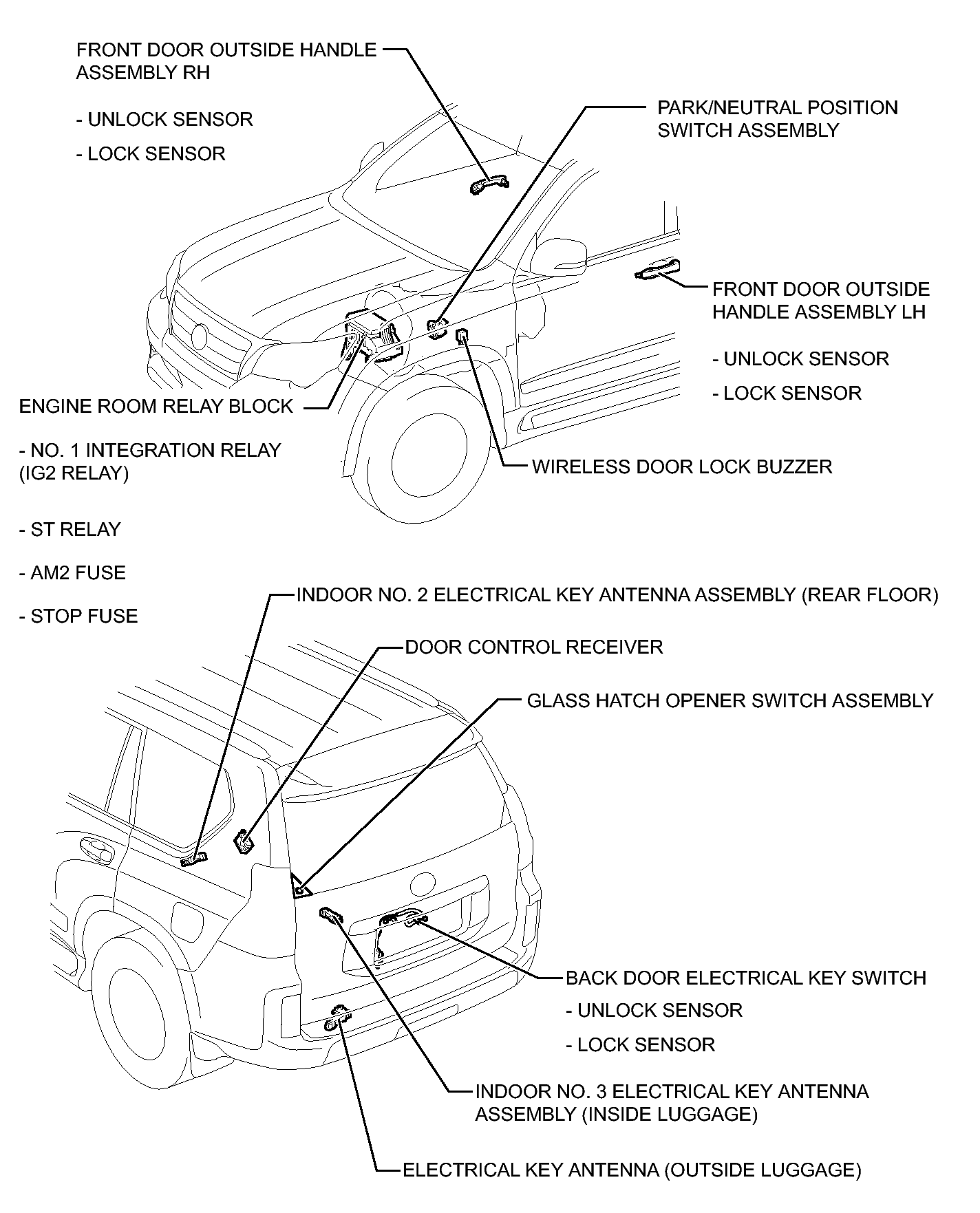

Fig 1: Identifying Smart Access System With Push-Button Start (For Start Function) Components Location (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

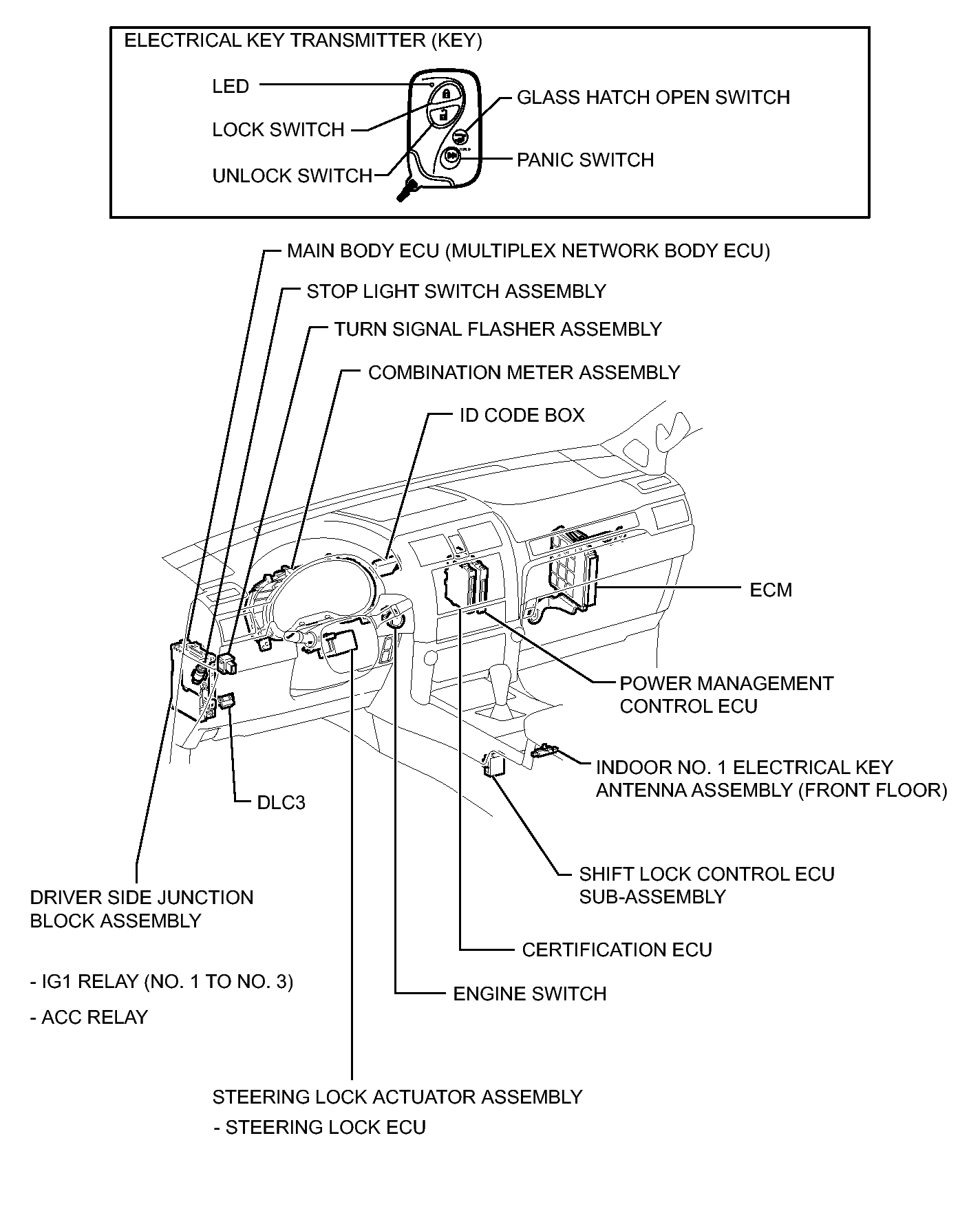

Fig 1: Identifying Smart Access System With Push-Button Start (For Start Function) Components Location (2 Of 3)

Fig 1: Identifying Smart Access System With Push-Button Start (For Start Function) Components Location (3 Of 3)
