Rear Airbag Sensor: Components: Illustration

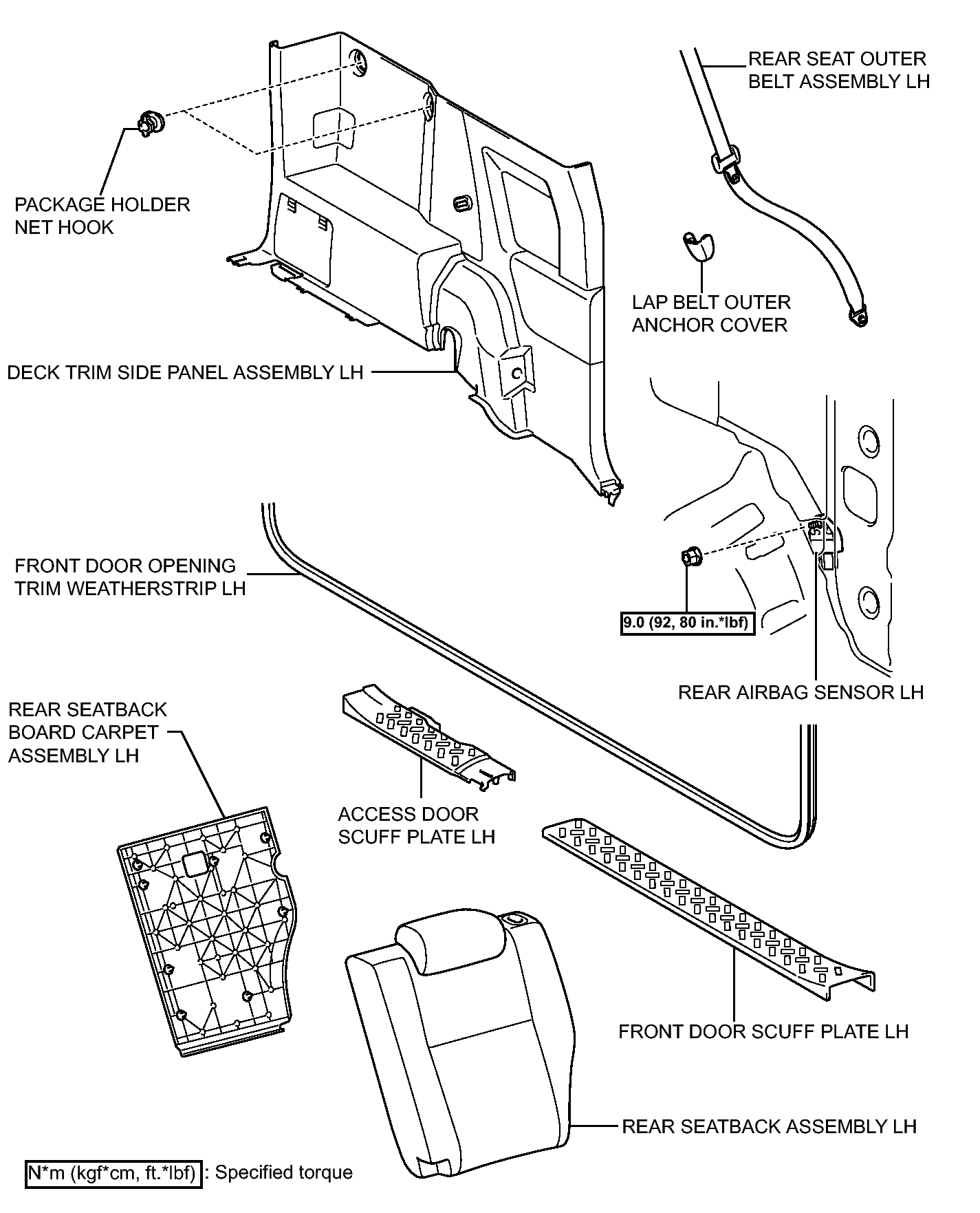

Fig 1: Identifying Rear Airbag Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY202440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

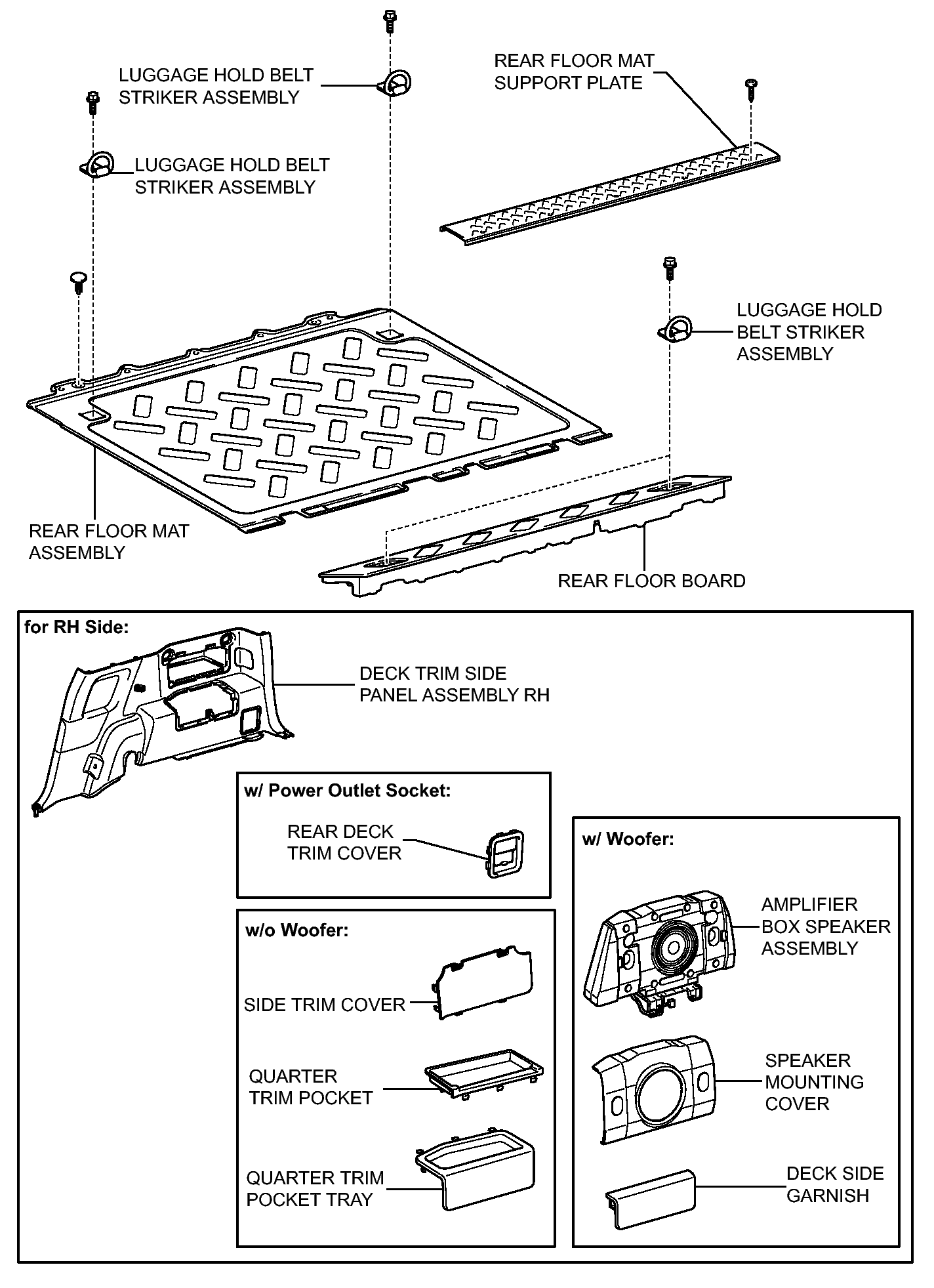

Fig 1: Identifying Rear Airbag Sensor Replacement Components (2 Of 2)
GTY201555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
