Power Steering Link: Reassembly: Reassembly

1. Temporarily install the steering rack end sub-assembly to the steering rack.
2. Fill up the ball joint of the steering rack end sub-assembly with MP grease.
3. Using SST, install the steering rack end sub-assembly while holding the steering rack.

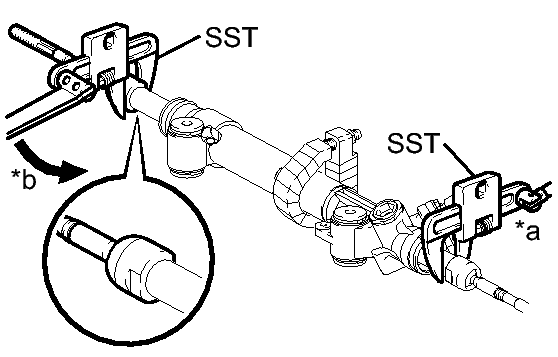

   Fig 1: Installing Steering Rack End Sub-Assembly LH Using SST

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *a	Hold
   *b	Turn

   • SST: 09922-10010

   without SST

   Torque: 105 N*m (1071 kgf*cm, 77 ft.*lbf)

   with SST

   Torque: 77 N*m (783 kgf*cm, 57 ft.*lbf)

   NOTE:

   • Be sure to rotate SST in the correct direction.
   • Be sure to keep the steering rack fixed in place with SST.

   HINT:

   • This torque value is effective when SST is parallel to the torque wrench.
   • This torque value can be obtained by using a torque wrench with a fulcrum length of 345 mm (13.6 in.) and SST with a fulcrum length of 126.5 mm (4.98 in.).
   • If using a torque wrench with a length that is not 345 mm (13.6 in.), calculate the torque specification for the torque wrench and SST based on the "without SST" torque specification. Refer to PRECAUTION .

1. Temporarily install the steering rack end sub-assembly to the steering rack.
2. Fill up the ball joint of the steering rack end sub-assembly with MP grease.
3. Using SST, install the steering rack end sub-assembly while holding the steering rack.
   Fig 2: Installing Steering Rack End Sub-Assembly RH Using SST

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *a	Hold
   *b	Turn

   • SST: 09922-10010

   without SST

   Torque: 105 N*m (1071 kgf*cm, 77 ft.*lbf)

   with SST

   Torque: 77 N*m (783 kgf*cm, 57 ft.*lbf)

   NOTE:

   • Be sure to rotate SST in the correct direction.
   • Be sure to keep the steering rack fixed in place with SST.

   HINT:

   • This torque value is effective when SST is parallel to the torque wrench.
   • This torque value can be obtained by using a torque wrench with a fulcrum length of 345 mm (13.6 in.) and SST with a fulcrum length of 126.5 mm (4.98 in.).
   • If using a torque wrench with a length that is not 345 mm (13.6 in.), calculate the torque specification for the torque wrench and SST based on the "without SST" torque specification. Refer to PRECAUTION .

1. Apply lithium soap base glycol grease to the inside of the small opening of the No. 2 steering rack boot.

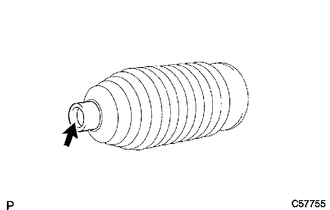

   Fig 3: Applying Silicon Grease To Inside Of Small End Of Rack Boot

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   Lithium soap base glycol grease

2. Install the No. 2 steering rack boot to the groove on the rack housing.
   NOTE:

   • Be careful not to damage or twist the steering rack boot.
   • Make sure that the steering rack boot is free of rust and foreign matter.

HINT:

Use the same procedure as for the No. 2 steering rack boot.

1. Using SST, tighten a new steering rack boot clamp (LH side) as shown in the illustration.

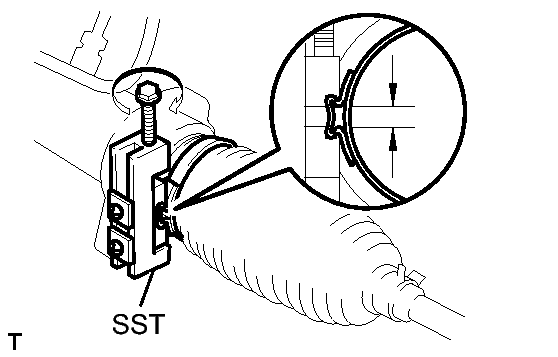

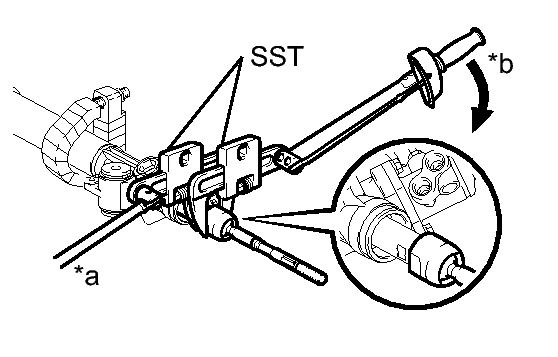

   Fig 4: Installing New Boot Clamp Using SST LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   • SST: 09521-24010

   Standard clearance

   3.0 mm (0.118 in.) or less

   NOTE:

   Be careful not to damage the steering rack boot.

HINT:

Use the same procedure for the RH side as for the LH side.

1. Using pliers, install the steering rack boot clip.

HINT:

Use the same procedure for the RH side as for the LH side.

1. Temporarily install the lock nut and the tie rod end sub-assembly LH to the steering rack end sub-assembly until the matchmarks and length A are aligned, then temporarily tighten the lock nut.

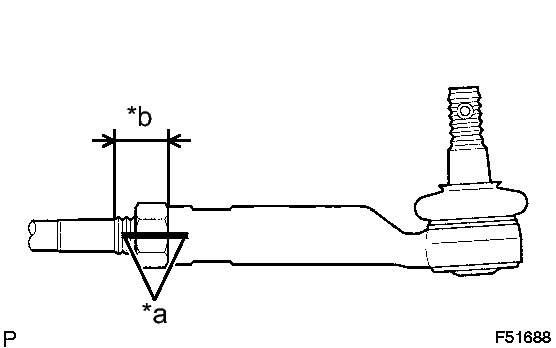

   Fig 5: Matching Tie Rod and Steering Rack End Matchmarks (LH)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *a	Matchmark
   *b	Length A

   HINT:

   After adjusting toe-in, fully tighten the lock nut.

HINT:

Use the same procedure for the RH side as for the LH side.

1. Using a union nut wrench (17 mm), install the steering gear outlet return tube to the power steering link assembly.

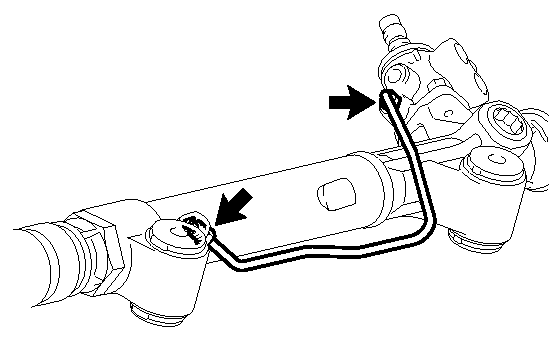

   Fig 6: Identifying Steering Gear Outlet Return Tube

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

   NOTE:

   Use the formula to calculate special torque values for situations where a union nut wrench is combined with a torque wrench. Refer to PRECAUTION .

1. Apply power steering fluid to 2 new O-rings.
2. Install the 2 O-rings to the turn pressure tube RH.
3. Using a union nut wrench (12 mm), install the turn pressure tube RH.

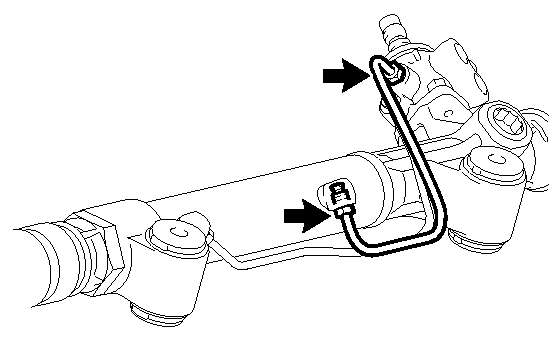

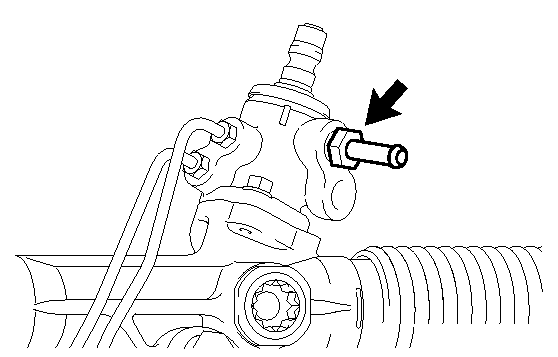

   Fig 7: Identifying Turn Pressure Tube RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

   NOTE:

   Use the formula to calculate special torque values for situations where a union nut wrench is combined with a torque wrench. Refer to PRECAUTION .

1. Apply power steering fluid to 2 new O-rings.
2. Install the 2 O-rings to the turn pressure tube LH.
3. Using a union nut wrench (12 mm), install the turn pressure tube LH.
   Fig 8: Identifying Turn Pressure Tube LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

   NOTE:

   Use the formula to calculate special torque values for situations where a union nut wrench is combined with a torque wrench. Refer to PRECAUTION .
