Rear Lateral Control Rod: Components: Illustration

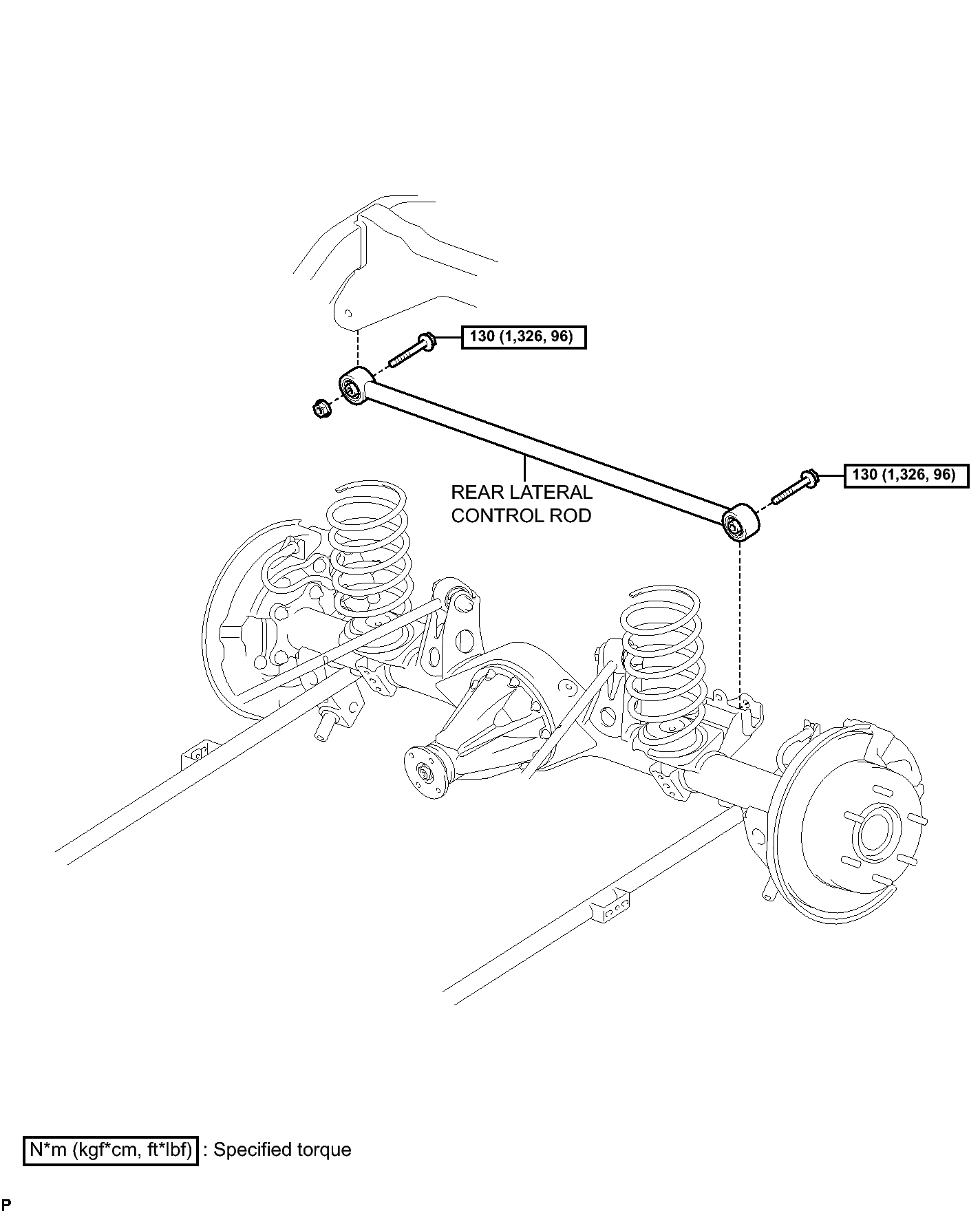

Fig 1: Identifying Rear Lateral Control Rod Replacement Components With Torque Specifications
GTY201905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
