System Description

  1. GENERAL
    1. Airbag for Frontal Collision
      1. The dual-stage SRS driver and front passenger airbags deploy simultaneously in the event of a frontal impact collision as supplements to the seat belts. The dual-stage SRS airbag system controls the airbag inflation output by judging the extent of the impact, the seat position and whether the seat belt is fastened.

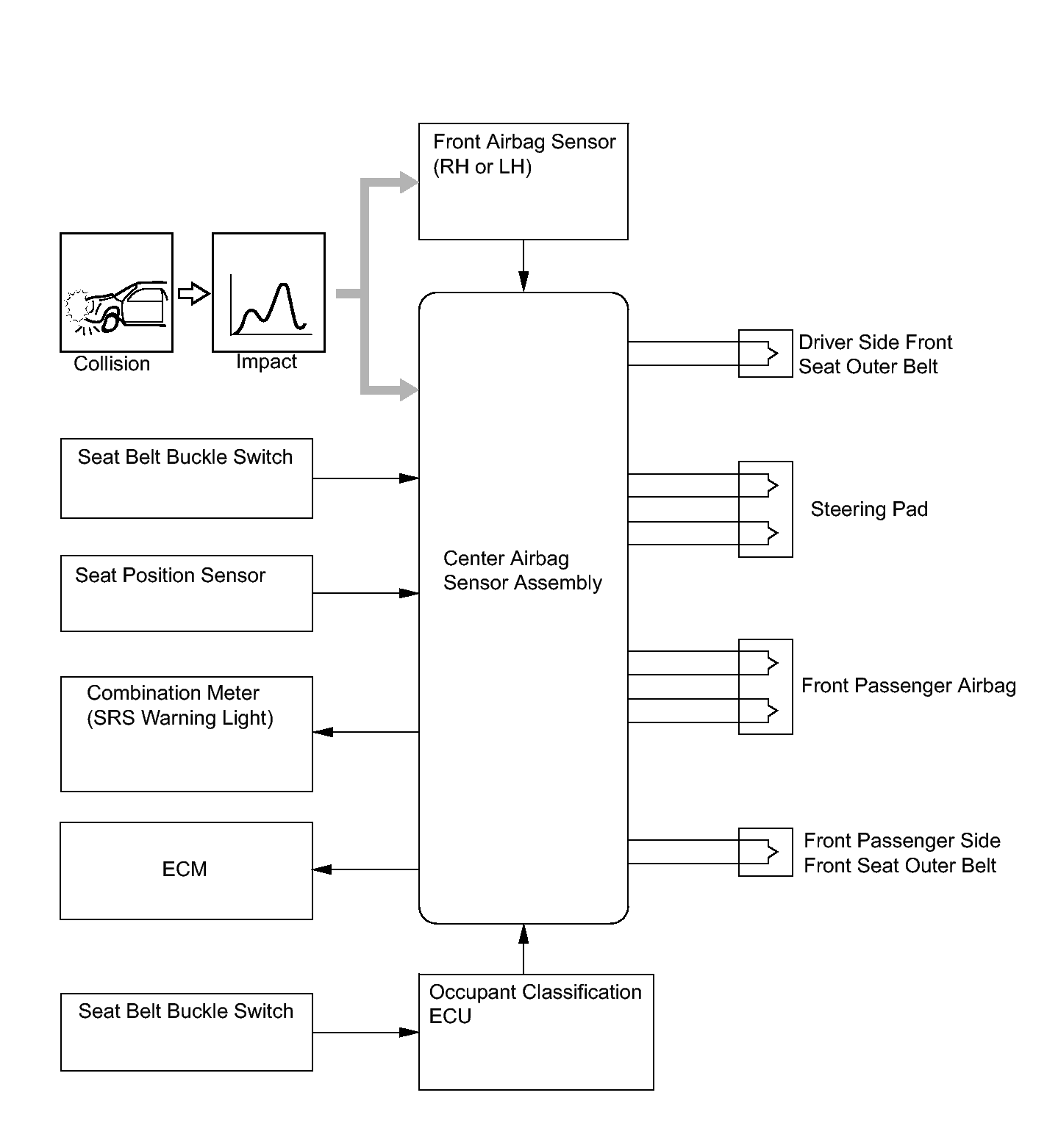

        Fig 1: Identifying Dual-Stage SRS Airbag System Communication Diagram (Front LH & RH Sides)
        GTY201502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Airbag for Side/Rear Side Collision
      1. SRS side and curtain shield airbags deploy simultaneously in the event of a side collision. Only the curtain shield airbag deploys in the event of a rear side collision.

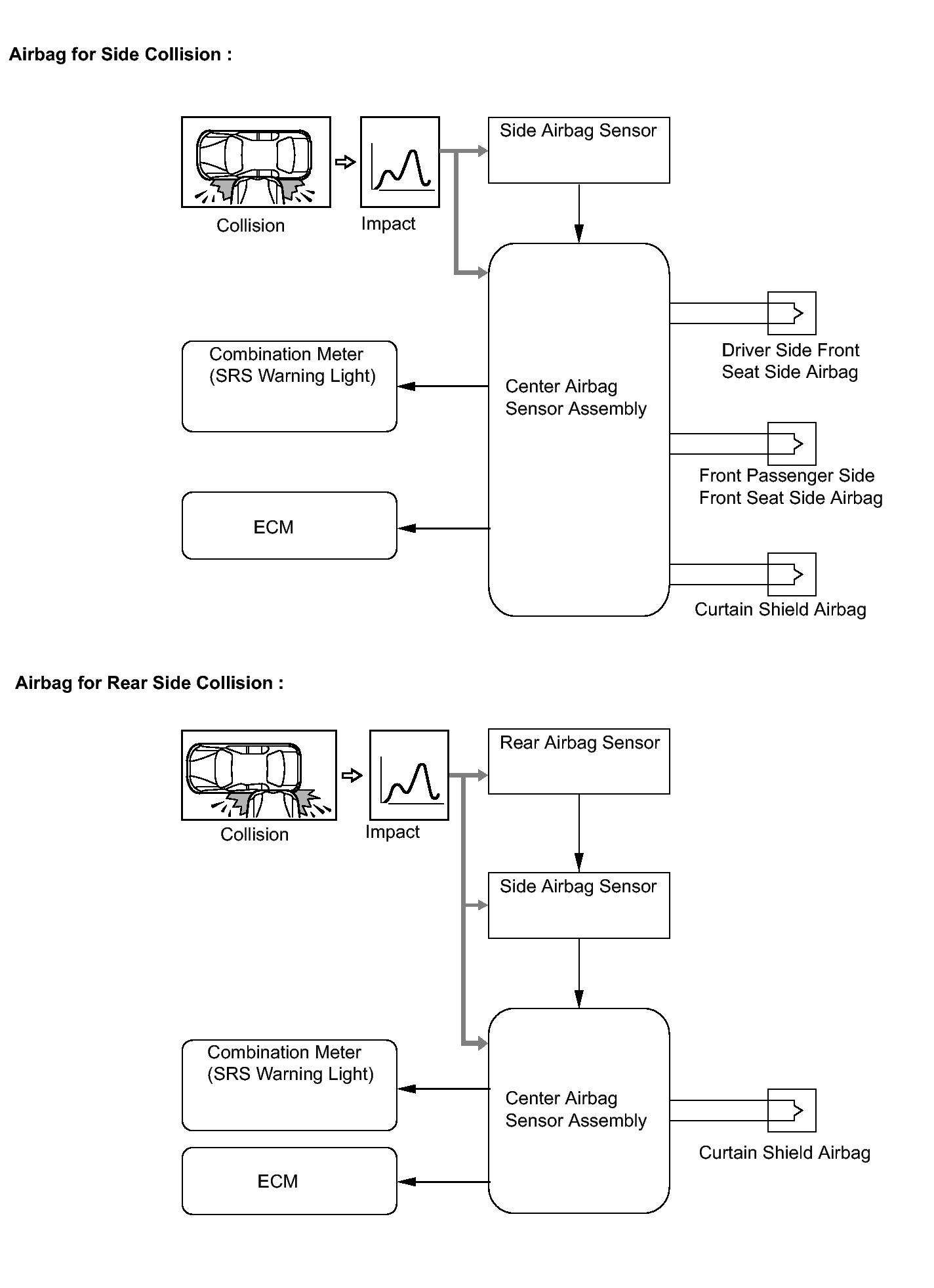

        Fig 2: Identifying Center Airbag Sensor Assembly Communication Diagram (Airbag For Side/Rear Side Collision)
        GTY201503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. MAIN COMPONENTS
    Component Description
    SRS Driver & Front Passenger Airbags Help reduce shocks to heads and chests of driver and front passenger in event of frontal impact collision as supplements to seat belts
    Front Airbag Sensor Converts distortion created in sensor into electrical signal based on deceleration of vehicle during front collision
    Seat Belt Buckle Switch Integrated into front seat inner belt assembly and detects whether seat belt fastened (for driver seat)
    Seat Position Sensor Detects sliding position of seat (for driver seat)
    Front Seat Side and Curtain Shield Airbags Help reduce shocks to heads and chests of driver, front passenger and outer rear passengers in event of side or rear side collision
    Side Airbag Sensor and Rear Airbag Sensor Convert distortion created in sensor into electrical signal based on deceleration of vehicle during side or rear side collision
