Removal

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent airbag deployment Service Precautions.

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE LOWER NO. 3 STEERING WHEEL COVER Removal

3. REMOVE LOWER NO. 2 STEERING WHEEL COVER Removal

4. REMOVE STEERING PAD Removal

5. REMOVE CRUISE CONTROL MAIN SWITCH

(a) Remove the 2 screws.





(b) Disconnect the connector.

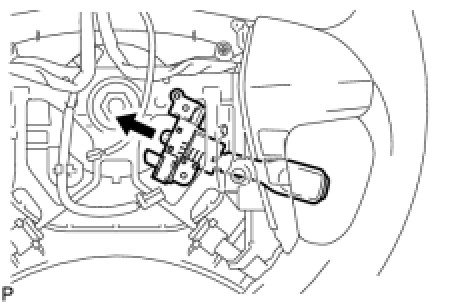

(c) Remove the cruise control main switch as shown in the illustration.
