Installation

1AR-FE STARTING: IGNITION SWITCH: INSTALLATION

1. INSTALL IGNITION SWITCH ASSEMBLY

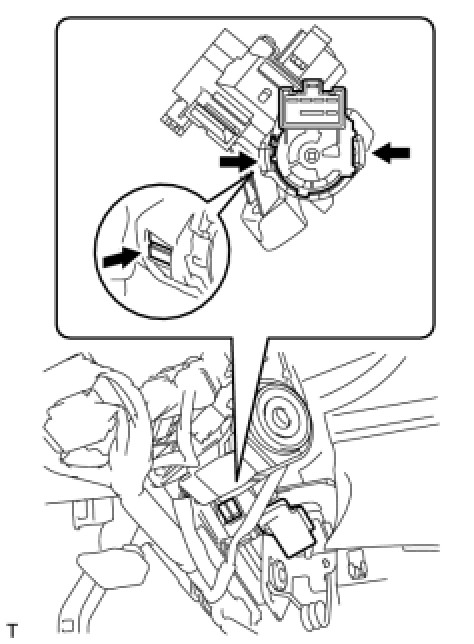

(a) Engage the 2 claws to install the ignition switch.

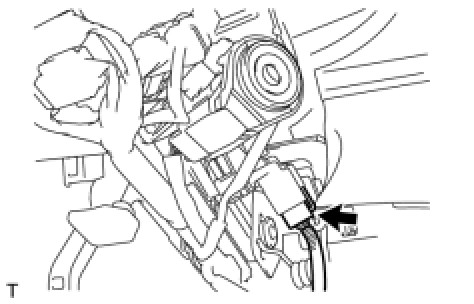

(b) Connect the ignition switch connector.





2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Installation

3. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH Installation

4. INSTALL FRONT DOOR SCUFF PLATE LH Installation

5. INSTALL STEERING COLUMN COVER LOWER

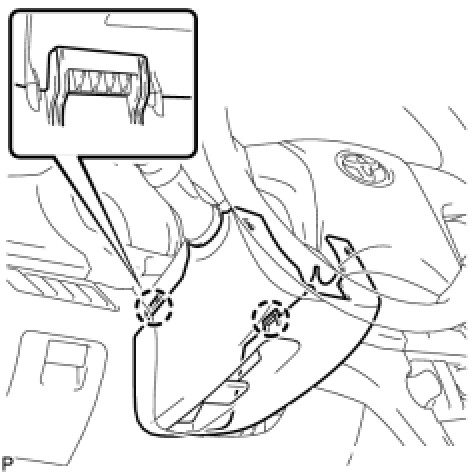

(a) Engage the 2 claws to install the steering column cover lower.





(b) Insert the key into the ignition key cylinder and release the steering lock.

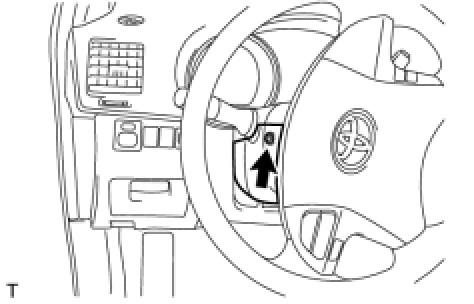

(c) Turn the steering wheel counterclockwise and install the screw.

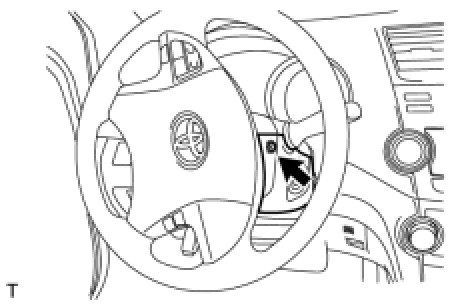

(d) Turn the steering wheel clockwise and install the screw.





6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
