Display Signal Circuit between Navigation Receiver Assembly and Television Camera Assembly: Wiring Diagram

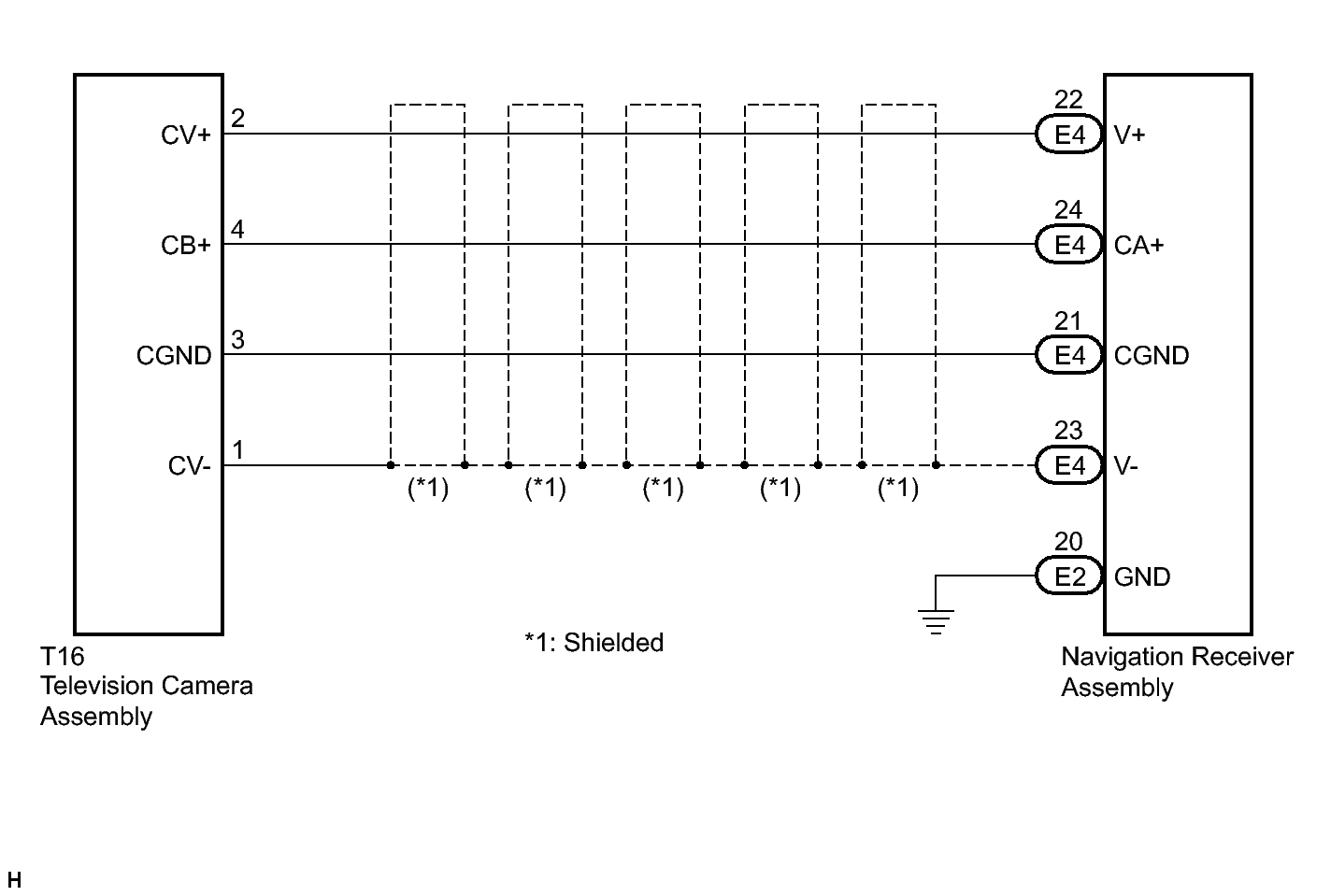

Fig 1: Identifying Display Signal Circuit Between Navigation Receiver Assembly And Television Camera Assembly Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
