Integration Relay: Installation: Installation

  1. INSTALL ENGINE ROOM JUNCTION BLOCK ASSEMBLY
    1. Connect the 4 connectors.

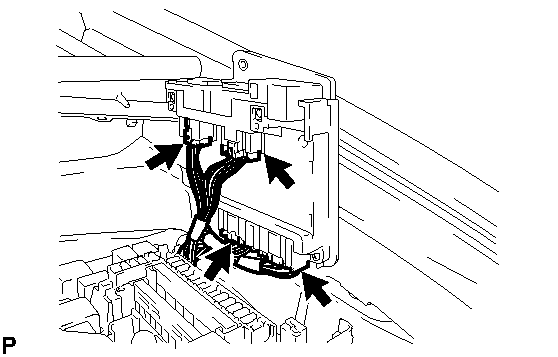

      Fig 1: Locating Engine Room Junction Block Assembly Connectors
      GTY193978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the engine room junction block assembly.
  2. INSTALL NO. 1 RELAY BLOCK COVER
    1. Install the No. 1 relay block cover.

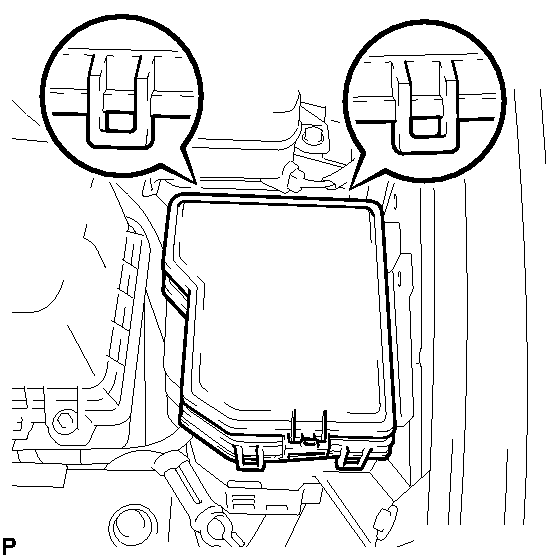

      Fig 2: Identifying No. 1 Relay Block Cover
      GTY189732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL RESERVOIR BRACKET  . Refer to INSTALLATION - Step 61
  4. INSTALL BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY  . Refer to INSTALLATION - Step 62
