DTC U0073: Control Module Communication Bus OFF; DTC U0100: Lost Communication with ECM / PCM "A"; DTC U0129: Lost Communication with Brake System Control Module: Wiring Diagram

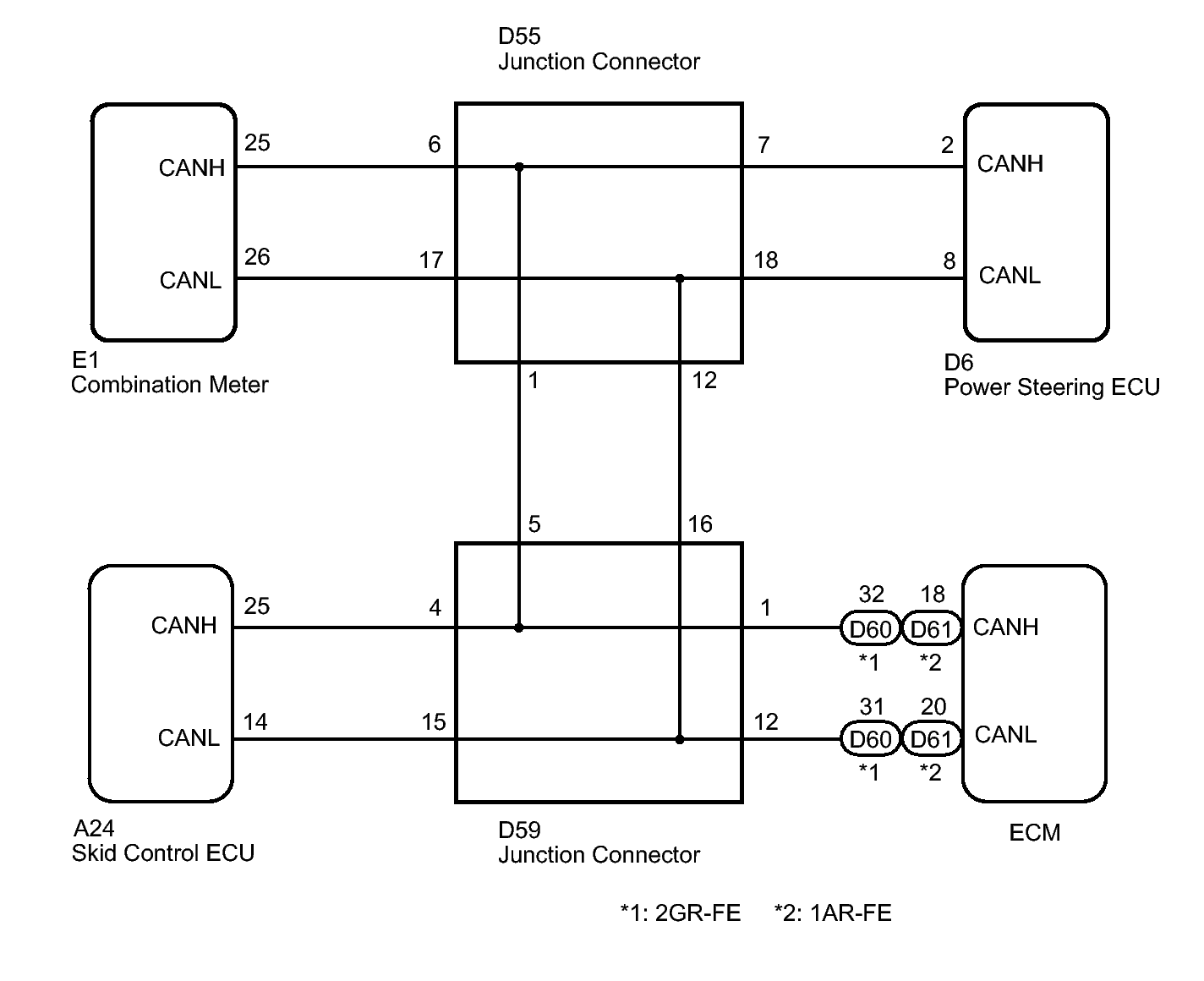

Fig 1: Power Steering ECU Communication Circuit Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
