Removal

THEFT DETERRENT / KEYLESS ENTRY: TRANSPONDER KEY ECU: REMOVAL

1. REMOVE AIR CONDITIONING UNIT

(a) Remove the air conditioning unit Removal.

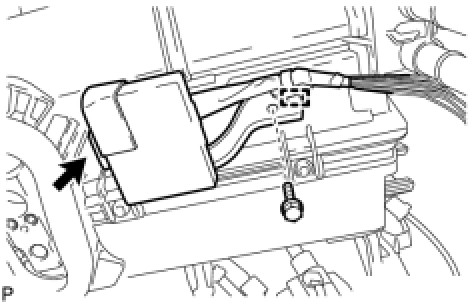

2. REMOVE TRANSPONDER KEY ECU

(a) Disconnect the connector.





(b) Disengage the clamp.

(c) Remove the bolt and the transponder key ECU.
