Installation

DOOR LOCK: BACK DOOR LOCK: INSTALLATION

1. INSTALL BACK DOOR LOCK ASSEMBLY

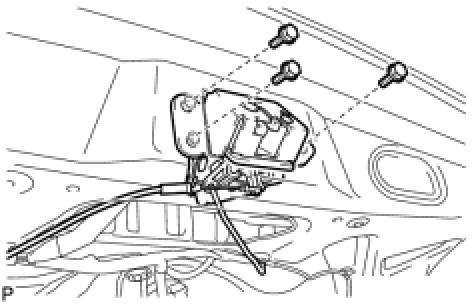

(a) Install the back door lock assembly with the 3 bolts.





Torque : 12 Nm (122 kgf-cm, 9 ft-lbf)

(b) Connect the connector.

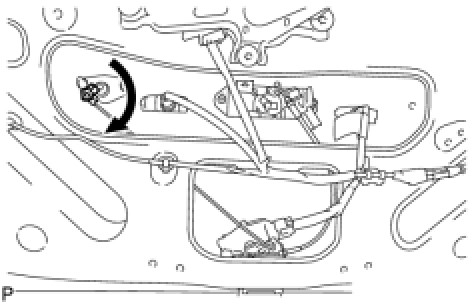

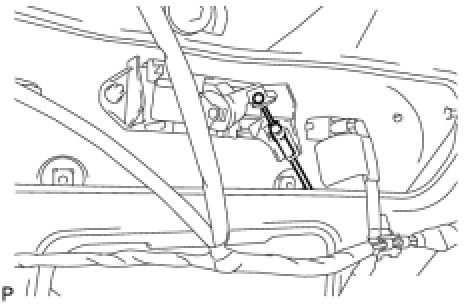

(c) Connect the rod as shown in the illustration.

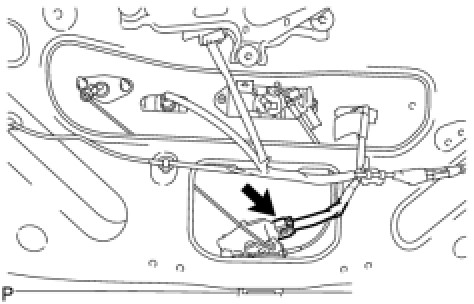

(d) Connect the back door lock control cable sub-assembly.





2. INSTALL BACK DOOR TRIM BOARD ASSEMBLY Reassembly

3. INSTALL BACK DOOR SIDE GARNISH LH Reassembly

4. INSTALL BACK DOOR SIDE GARNISH RH Reassembly

5. INSTALL BACK DOOR CENTER GARNISH Reassembly
