Installation

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: INSTALLATION

1. INSTALL CRUISE CONTROL MAIN SWITCH

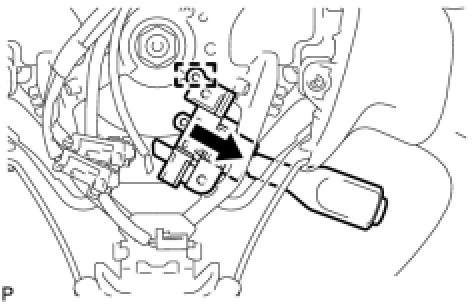

(a) Engage the pin and install the cruise control main switch as shown in the illustration.





(b) Connect the connector.

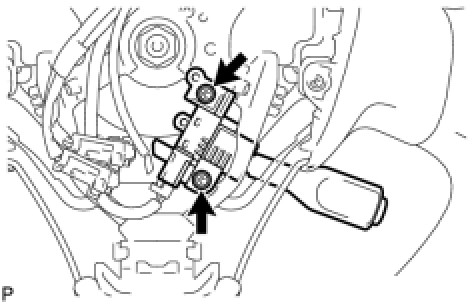

(c) Install the 2 screws.





2. INSTALL STEERING PAD Installation

3. INSTALL LOWER NO. 3 STEERING WHEEL COVER Installation

4. INSTALL LOWER NO. 2 STEERING WHEEL COVER Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

6. INSPECT STEERING PAD Installation

7. INSPECT SRS WARNING LIGHT

(a) Inspect the SRS warning light Diagnosis System.
