Installation

HEATING / AIR CONDITIONING: AMBIENT TEMPERATURE SENSOR: INSTALLATION

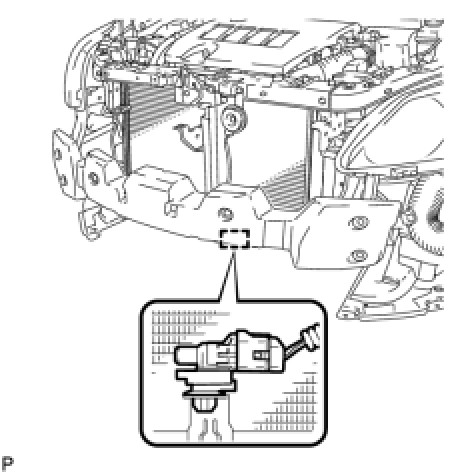

1. INSTALL AMBIENT TEMPERATURE SENSOR

(a) Engage the clamp to install the ambient temperature sensor.





(b) Connect the connector.

2. INSTALL FRONT BUMPER ASSEMBLY (except Sport Package) Installation

3. INSTALL FRONT BUMPER ASSEMBLY (for Sport Package) Installation

4. INSTALL RADIATOR GRILLE PROTECTOR Installation

5. INSTALL NO. 4 ENGINE UNDER COVER (for 2AZ-FE) Installation

6. ADJUST FOG LIGHT AIMING (w/ Fog Light)

Adjustments
