Installation

HEATING / AIR CONDITIONING: AIR CONDITIONING PANEL: INSTALLATION

1. INSTALL AIR CONDITIONING PANEL ASSEMBLY

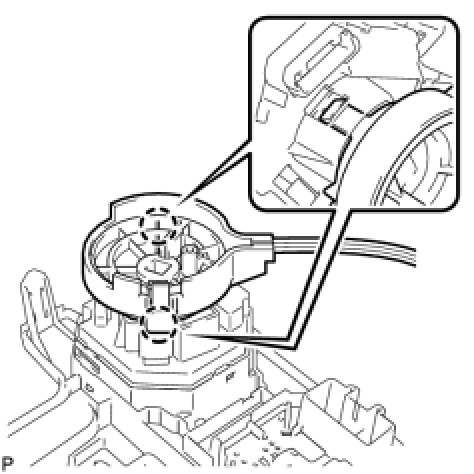

(a) Engage the 2 claws and the air mix damper control cable sub-assembly.

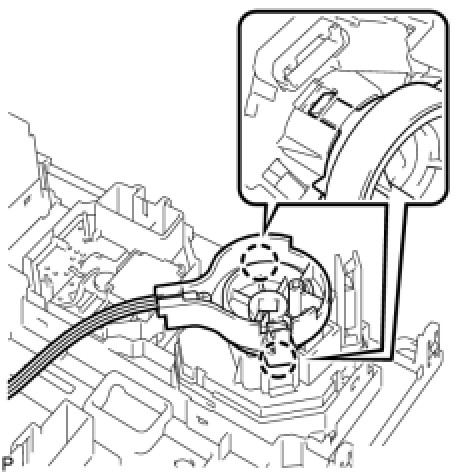

(b) Engage the 2 claws and the No. 2 heater control cable sub-assembly.





(c) Connect each connector.

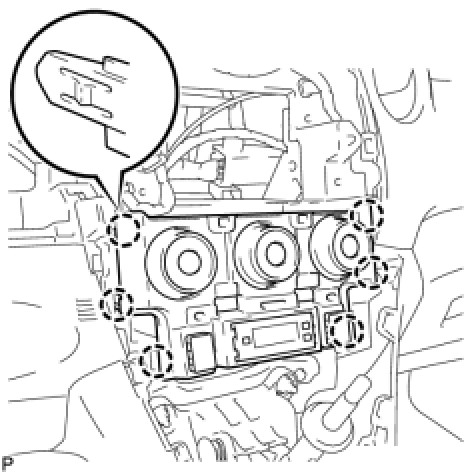

(d) Engage the 6 claws to install the air conditioning panel assembly.





2. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle) Installation

3. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle) Installation

4. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Installation

5. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle) Installation

6. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Installation
