Computers and Control Systems: Description and Operation

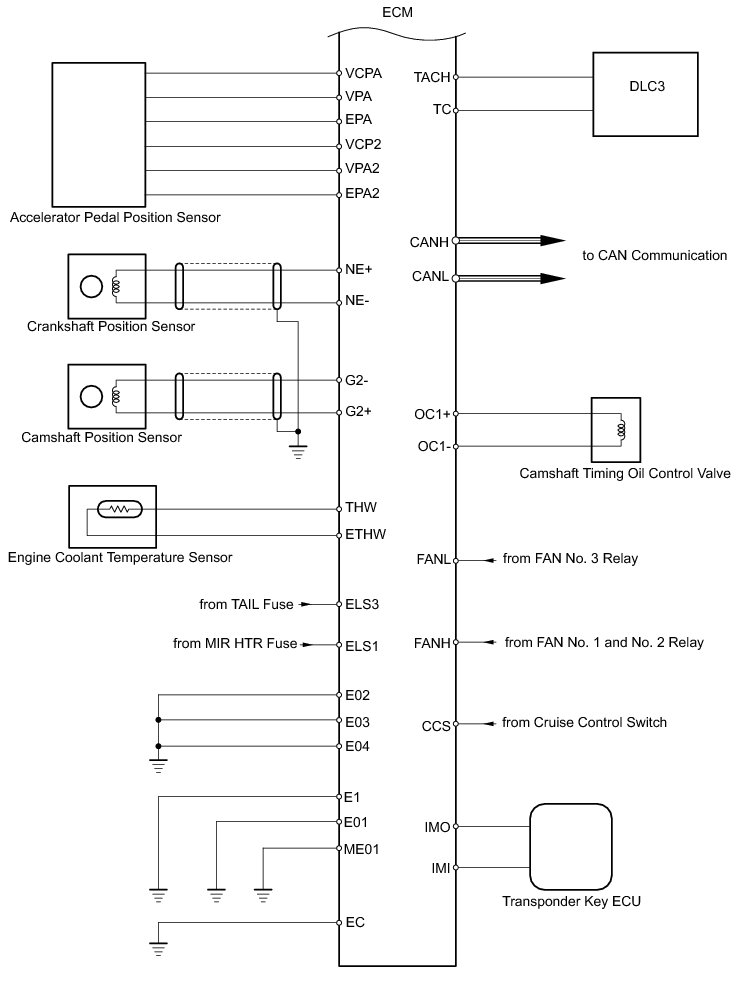

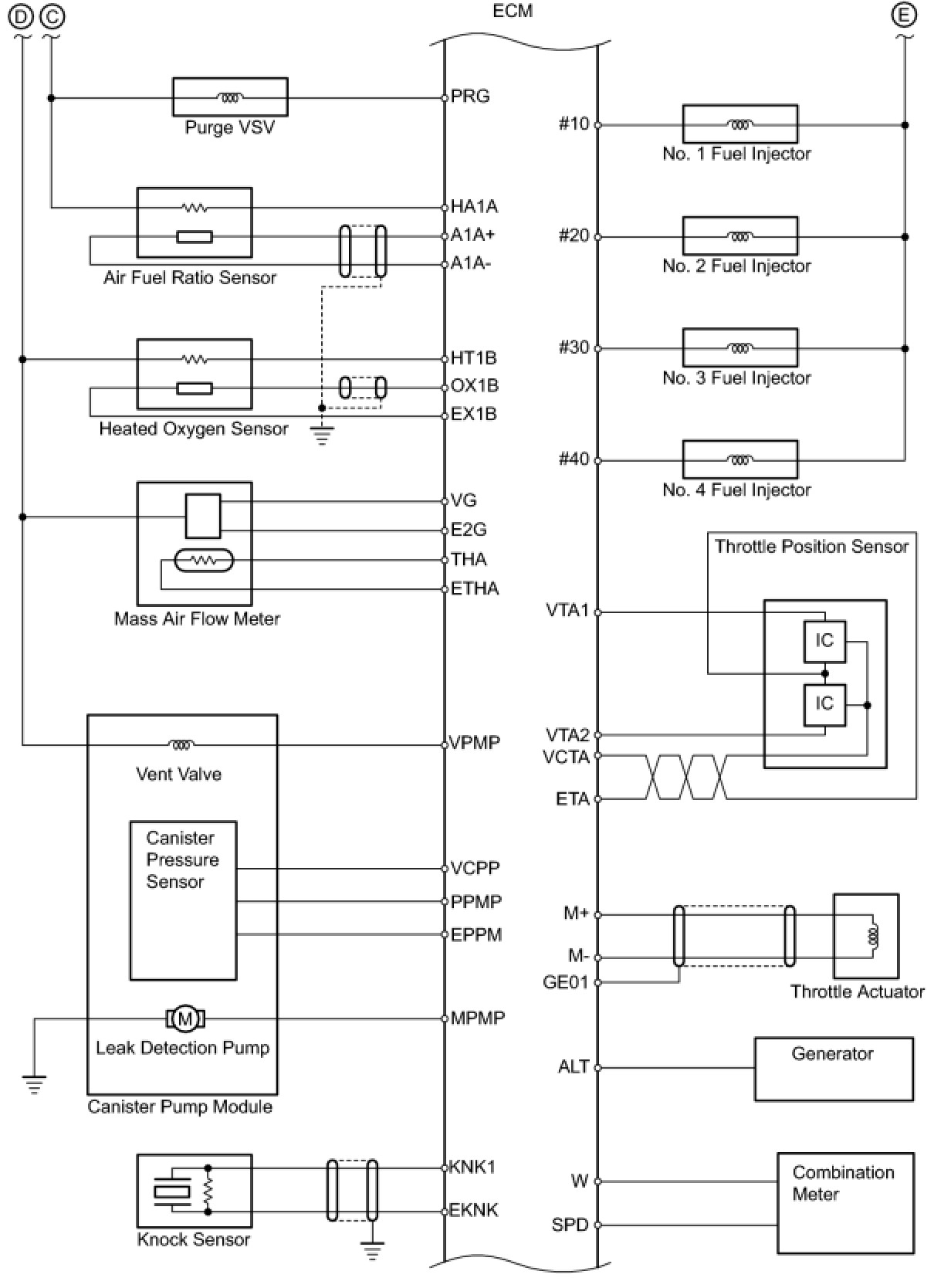

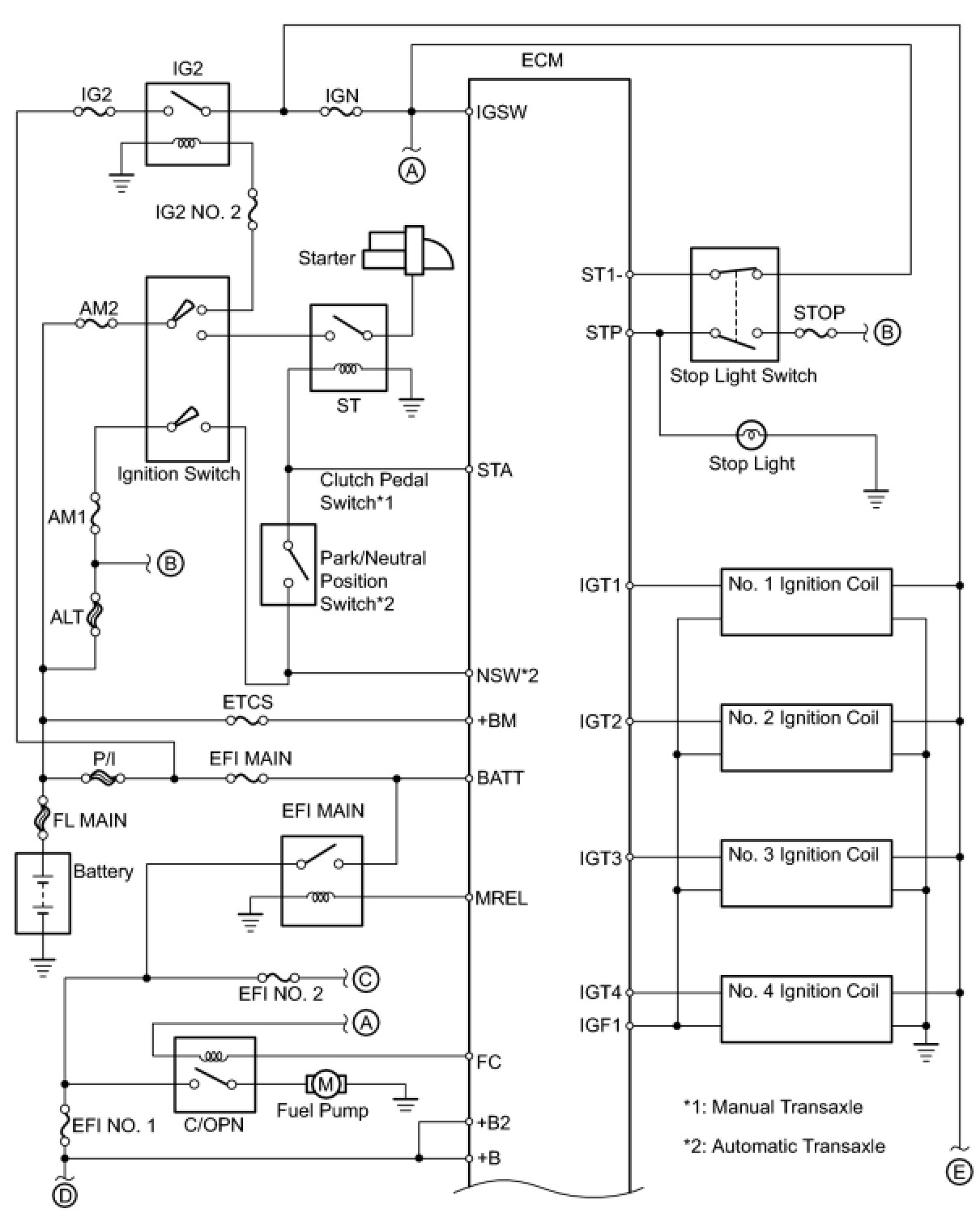

2AZ-FE ENGINE CONTROL: SFI SYSTEM: SYSTEM DIAGRAM
