Installation

2AZ-FE ENGINE CONTROL: ENGINE COOLANT TEMPERATURE SENSOR: INSTALLATION

1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR

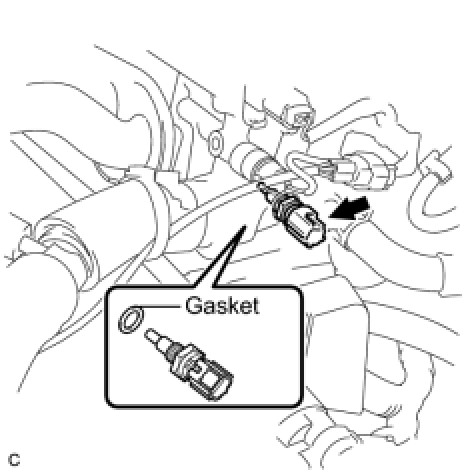

(a) Install the engine coolant temperature sensor through a new gasket.





Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)

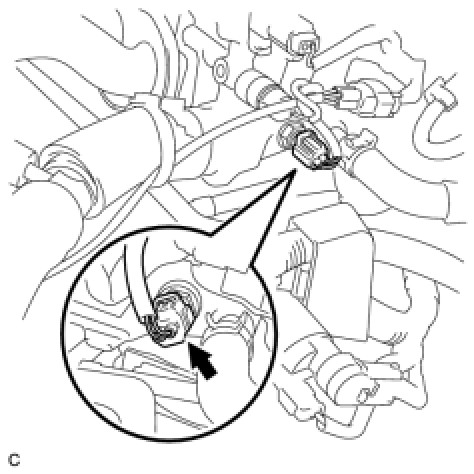

(b) Connect the engine coolant temperature sensor connector.





2. INSTALL AIR CLEANER CASE Installation

3. INSTALL AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE Installation

4. ADD ENGINE COOLANT Service and Repair

5. INSPECT FOR COOLANT LEAK Testing and Inspection

6. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation
