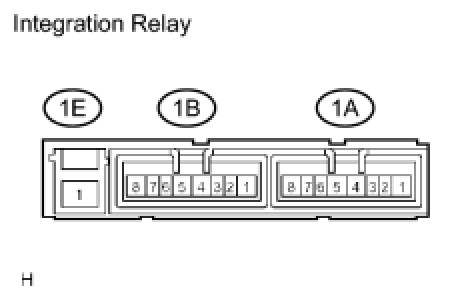

Integration Relay

2AZ-FE ENGINE CONTROL: INTEGRATION RELAY: INSPECTION

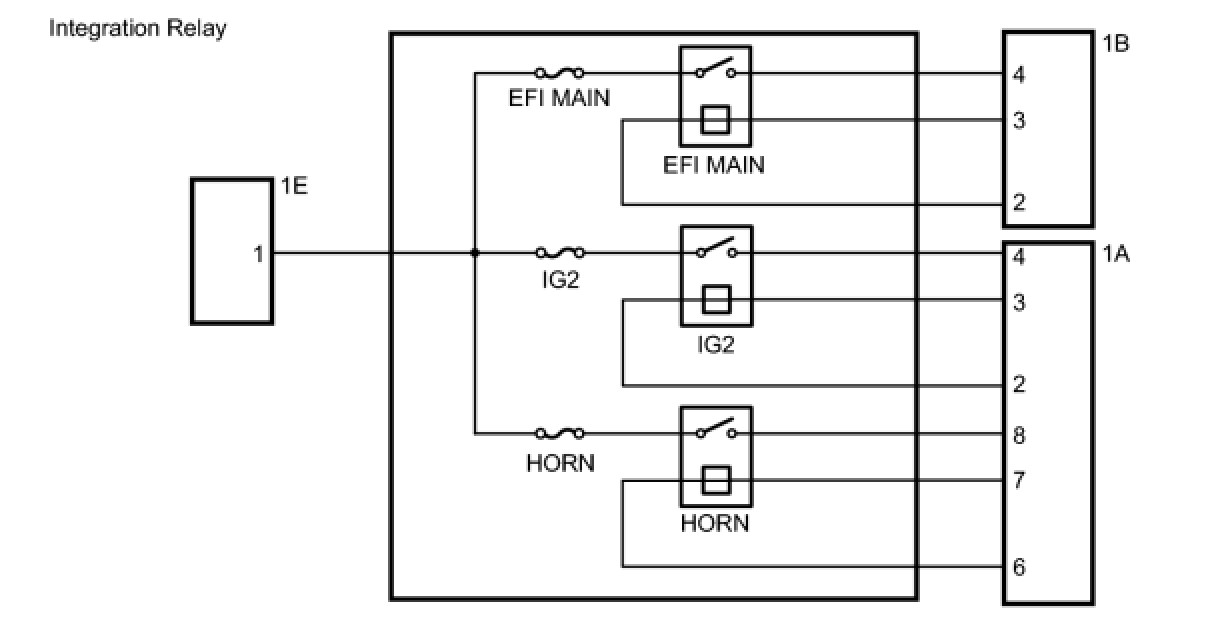

1. INSPECT INTEGRATION NO.1 RELAY





(a) EFI MAIN RELAY:

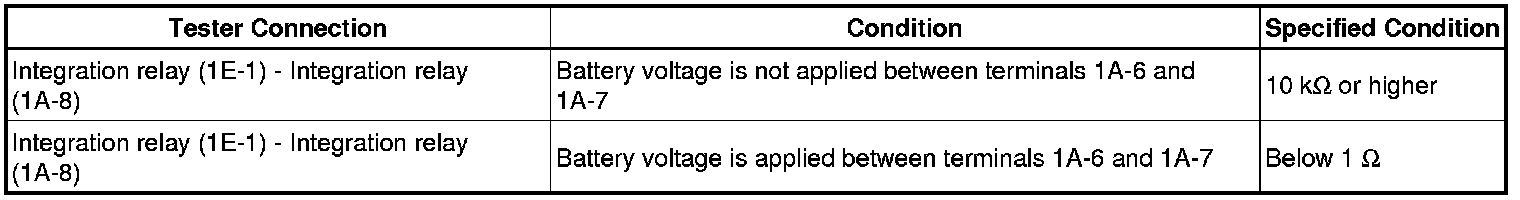

(1) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the resistance is not as specified, replace the integration relay.

(b) IG2 RELAY:

(1) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the resistance is not as specified, replace the integration relay.

(c) HORN RELAY:

(1) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the resistance is not as specified, replace the integration relay.
