Component Tests and General Diagnostics





U140F AUTOMATIC TRANSMISSION / TRANSAXLE: PARK / NEUTRAL POSITION SWITCH: INSPECTION

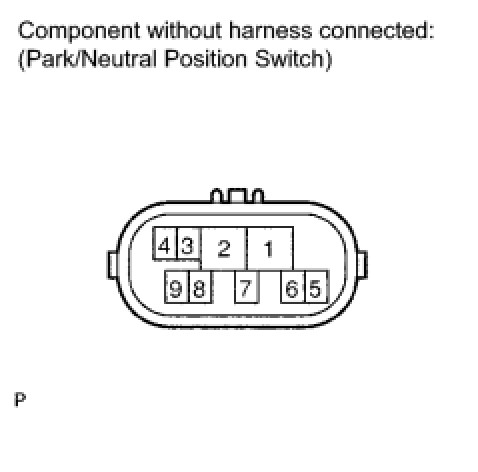

1. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

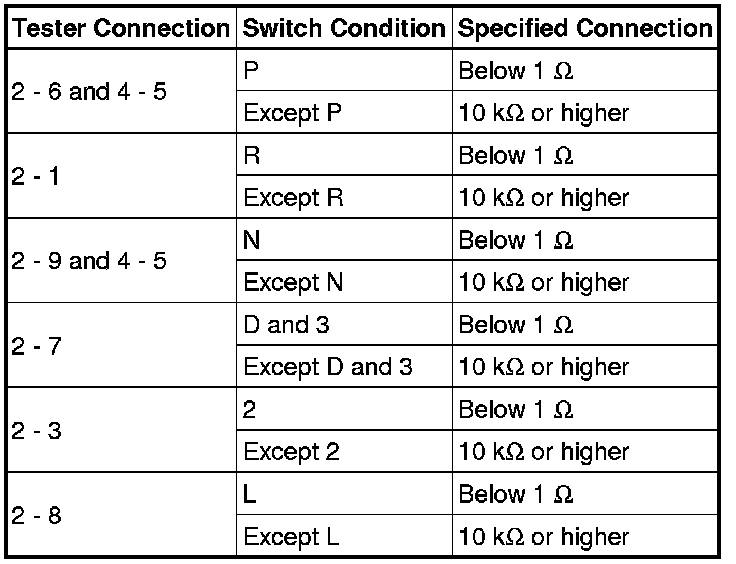

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the operation cannot be done as specified, replace the park/neutral position switch.
