Emission Control Systems: Locations

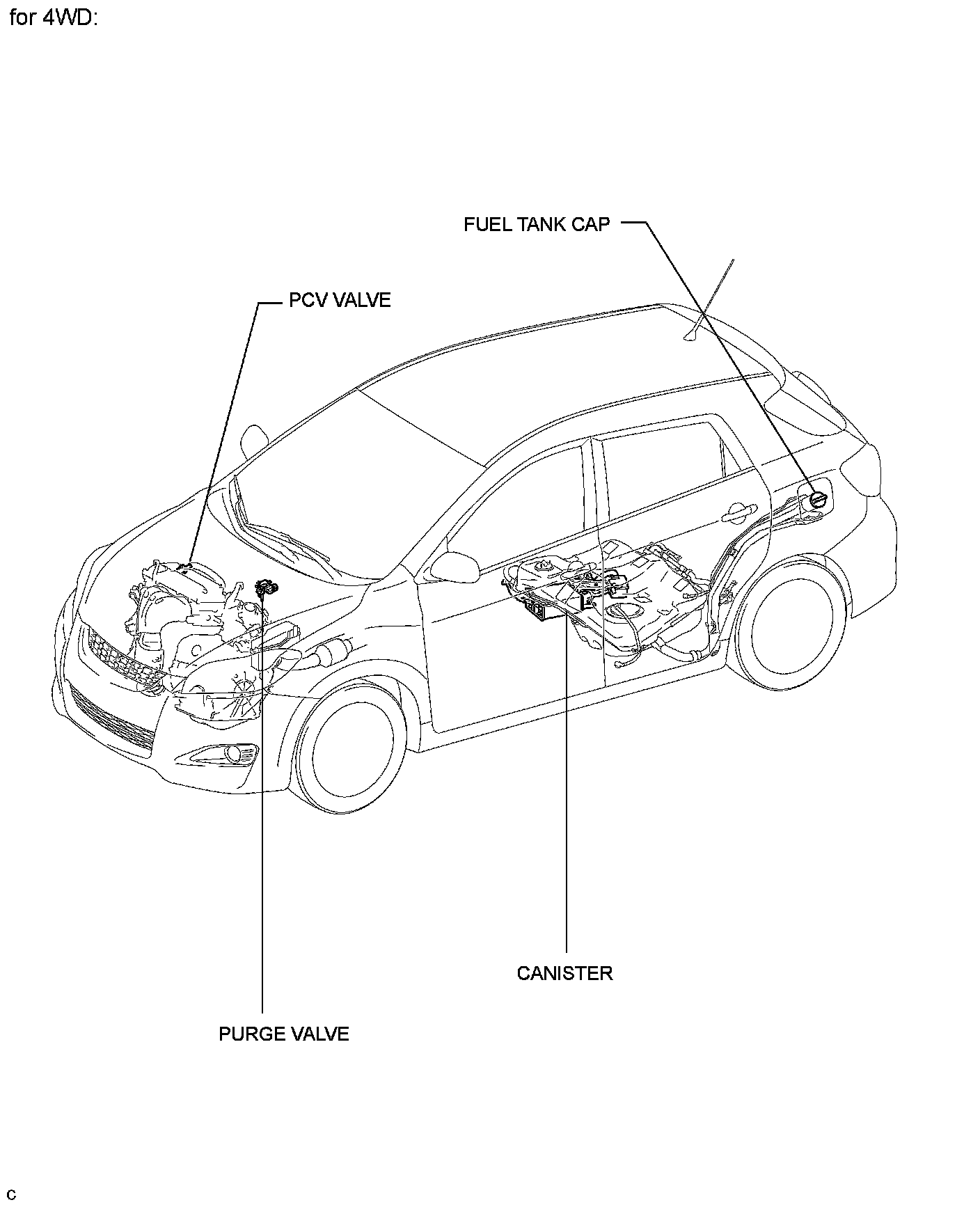

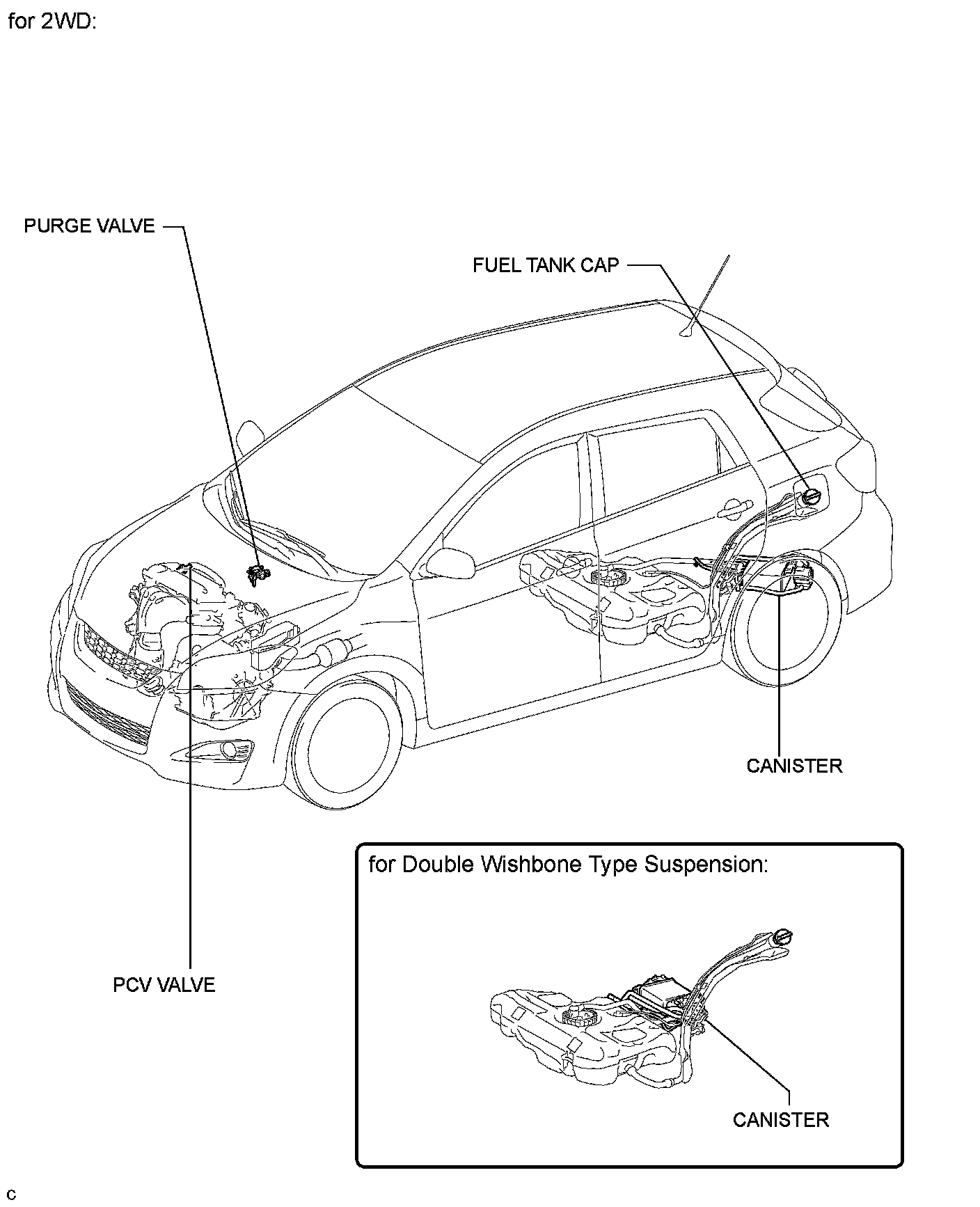

2AZ-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM: PARTS LOCATION
