Axle Shaft Assembly





PREPARATION: DRIVE SHAFT / PROPELLER SHAFT: LUBRICANT

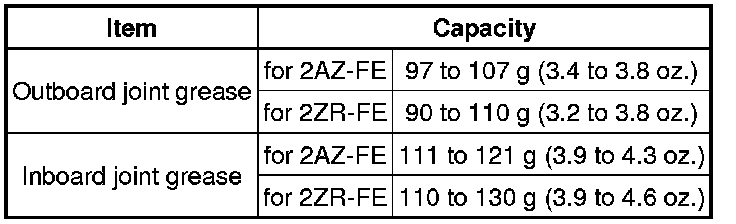

FRONT DRIVE SHAFT

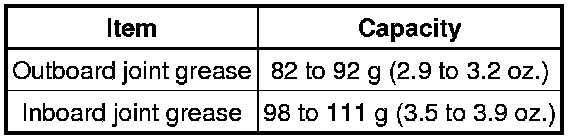

REAR DRIVE SHAFT
