Automatic Transmission/Transaxle

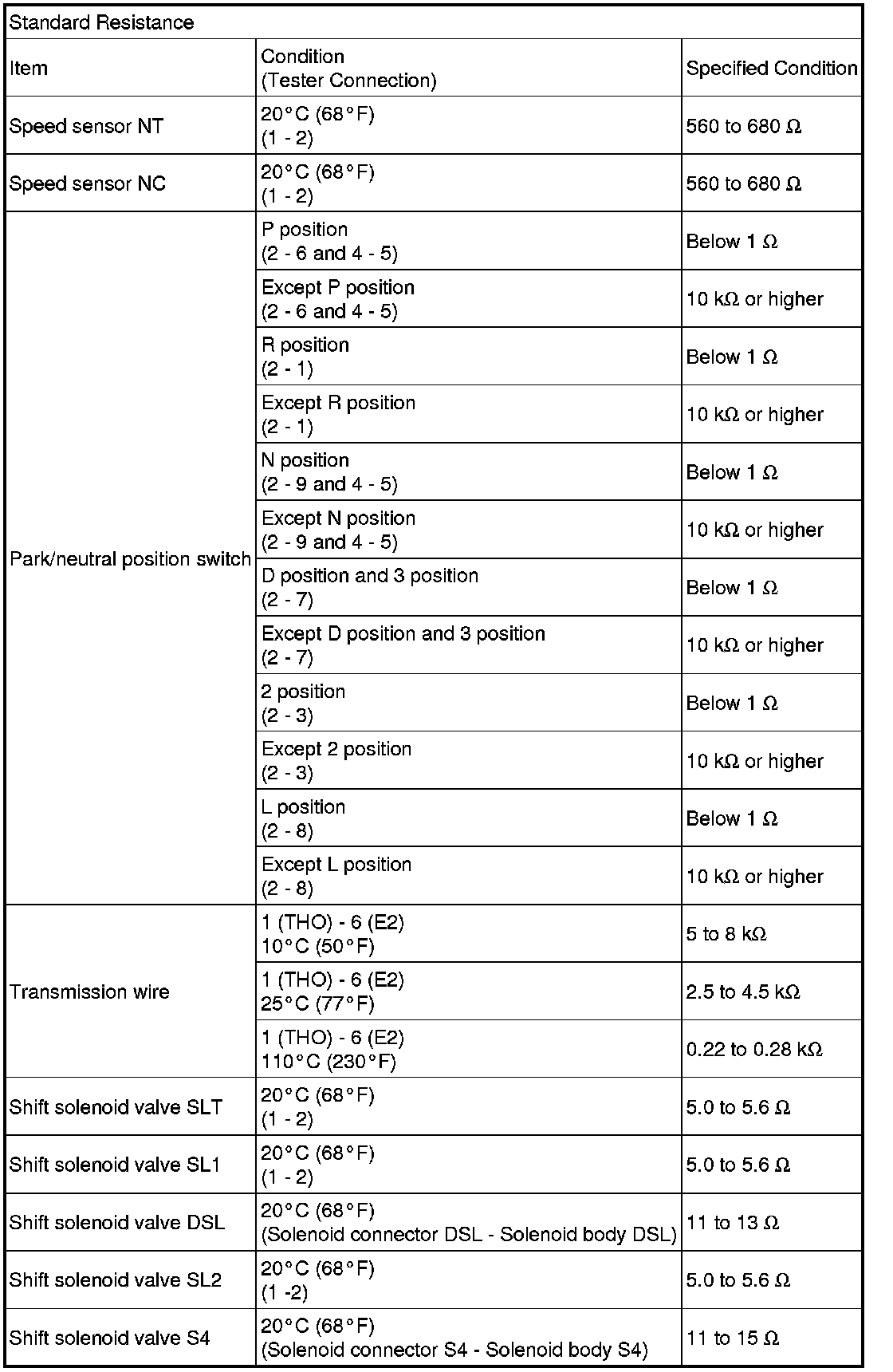

SPECIFICATIONS: U140F AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA
