Installation





WINDOW / GLASS: REAR POWER WINDOW SWITCH: INSTALLATION

1. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

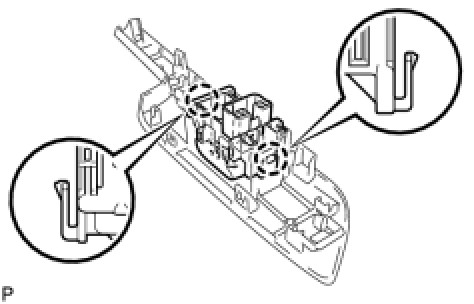

(a) Engage the 2 claws to install the rear power window regulator switch assembly.





2. INSTALL REAR DOOR ARMREST UPPER BASE PANEL Reassembly
