Cruise Control Main Switch: Installation: Installation

  1. INSTALL CRUISE CONTROL MAIN SWITCH
    1. Engage the pin and install the cruise control main switch as shown in the illustration.
      Fig 1: Installing Cruise Control Main Switch
      GTY247032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
    3. Install the 2 screws.

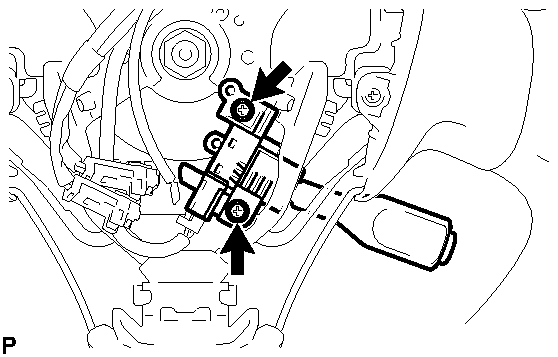

      Fig 2: Locating Cruise Control Main Switch Screws
      GTY247033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL STEERING PAD  . Refer to INSTALLATION - Step 1
  3. INSTALL LOWER NO. 3 STEERING WHEEL COVER  . Refer to INSTALLATION - Step 2
  4. INSTALL LOWER NO. 2 STEERING WHEEL COVER  . Refer to INSTALLATION - Step 3
  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  6. INSPECT STEERING PAD  . Refer to INSTALLATION - Step 5
  7. INSPECT SRS WARNING LIGHT
    1. Inspect the SRS warning light. Refer to DIAGNOSIS SYSTEM .
