Radio Receiver Power Source Circuit: Wiring Diagram

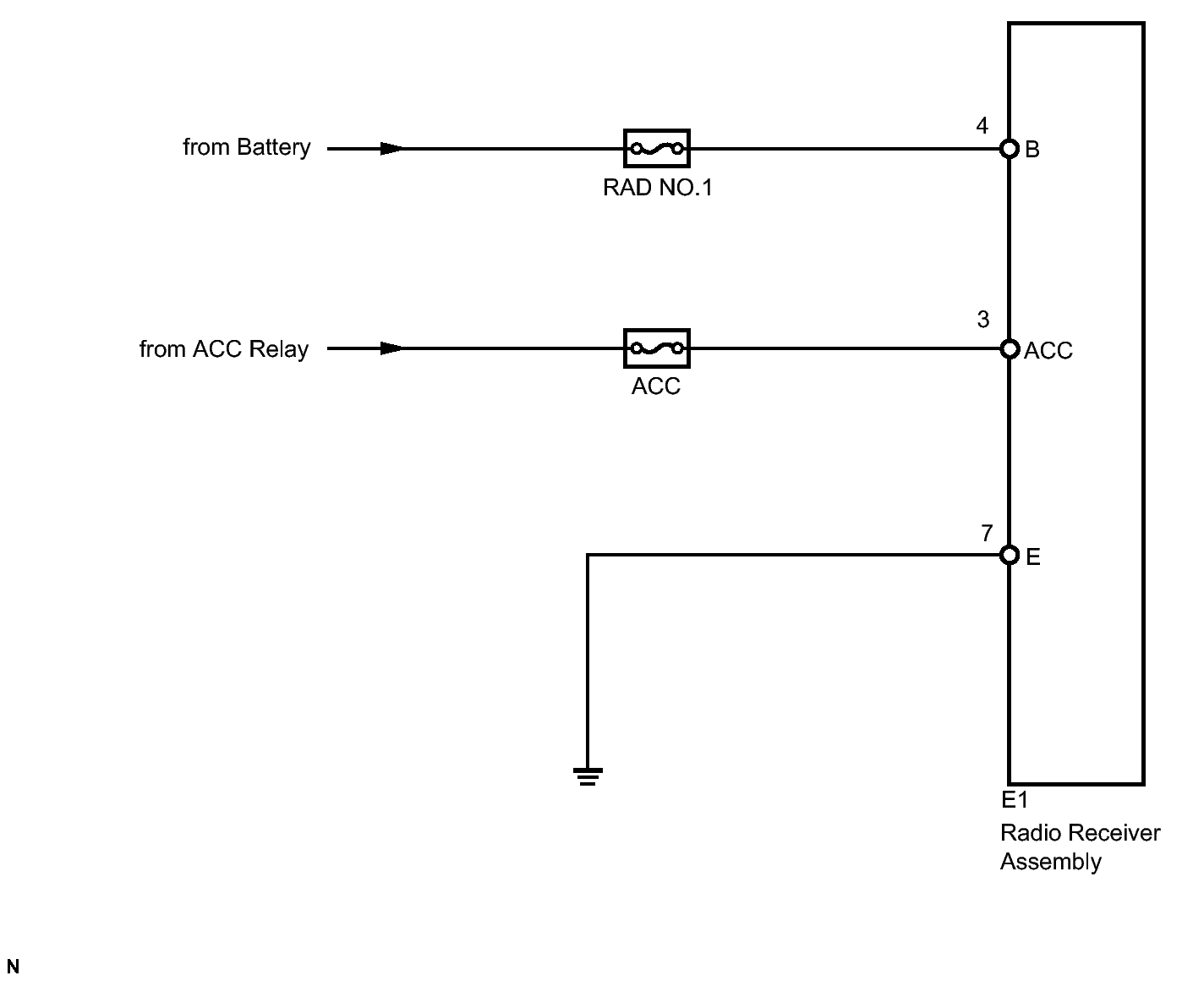

Fig 1: Radio Receiver Power Source Circuit - Wiring Diagram
GTY293016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
