Sound Signal Circuit between Multi-media Interface ECU and Stereo Jack Adapter: Wiring Diagram

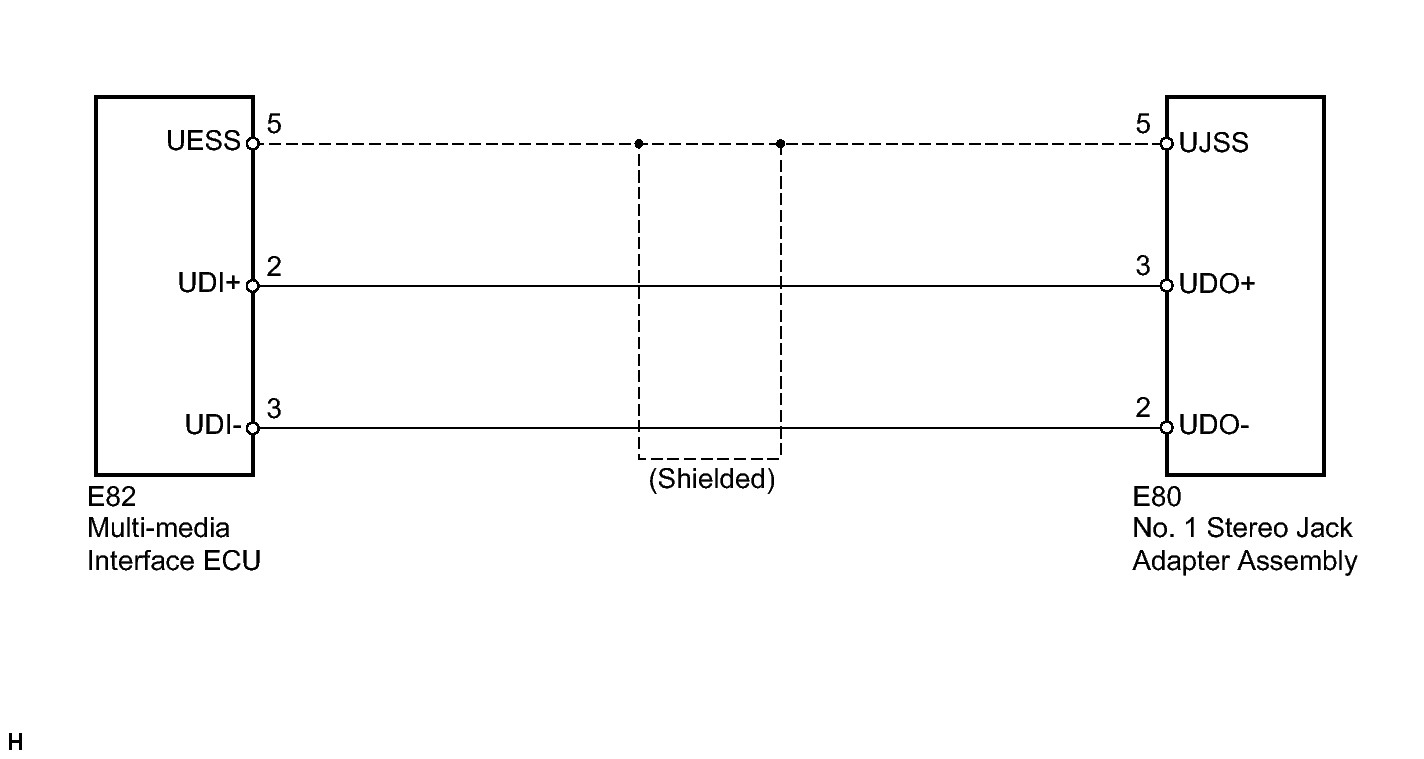

Fig 1: Sound Signal Circuit - Wiring Diagram
GTY293765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
