DTC CB-13: USB Over Current Detection: Procedure

1. Disconnect the USB device or "iPod" from the No. 1 stereo jack adapter assembly.
2. Turn the ignition switch off.

   HINT:

   When this DTC has been stored, it is necessary to turn off the ignition switch to make it possible for the vehicle to recognize a new device when it is connected.

3. Turn the ignition switch to ACC.
4. Connect a known good USB device or "iPod" to the No. 1 stereo jack adapter assembly.

NEXT: Go to next step

1. Clear the DTCs. Refer to DTC CHECK / CLEAR .

NEXT: Go to next step

1. Recheck for DTCs and check if the same DTC is output again.

   HINT:

   If DTCs are detected frequently, replace the multi-media interface ECU.

   OK

   No DTCs are output.

NG → See step   4

OK → USB DEVICE OR "iPod" WAS DEFECTIVE

1. Disconnect the No. 1 stereo jack adapter assembly connector.

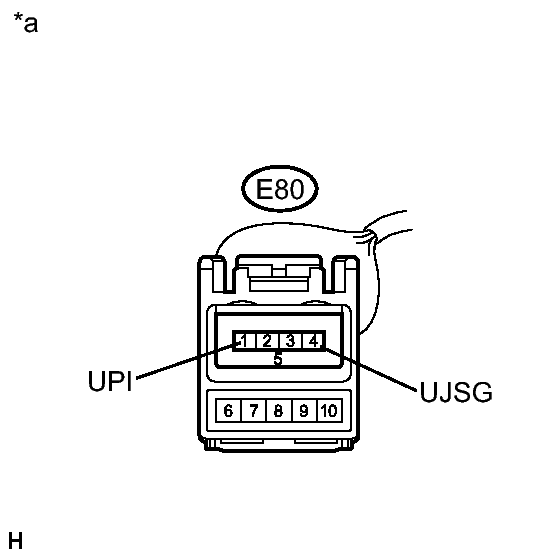

   Fig 1: Checking E80 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   E80-1 (UPI) - E80-4 (UJSG)	Ignition switch ACC	5 V

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to No. 1 Stereo Jack Adapter Assembly)

NG → See step   6

OK → See step   5

1. Disconnect the multi-media interface ECU connector.
   Fig 2: Checking E80 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

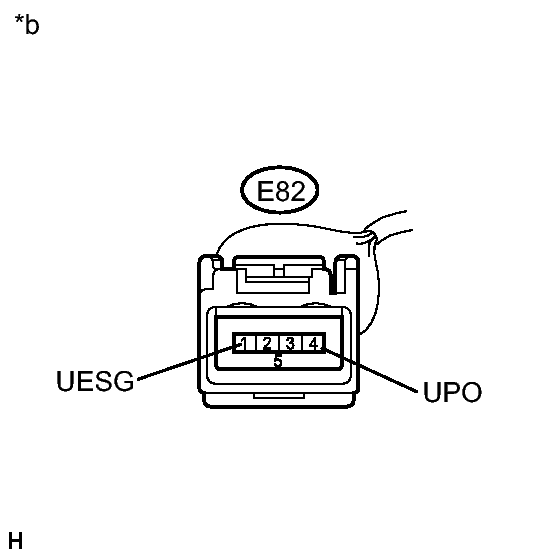

   Fig 3: Checking E82 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   E82-4 (UPO) - E80-1 (UPI)	Always	Below 1 Ω
   E82-1 (UESG) - E80-4 (UJSG)	Always	Below 1 Ω
   E80-1 (UPI) - Body ground	Always	10 kΩ or higher
   E80-4 (UJSG) - Body ground	Always	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to No. 1 Stereo Jack Adapter Assembly)
   *b	Front view of wire harness connector (to Multi-media Interface ECU)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   7
