DTC CB-13: USB Over Current Detection: Wiring Diagram

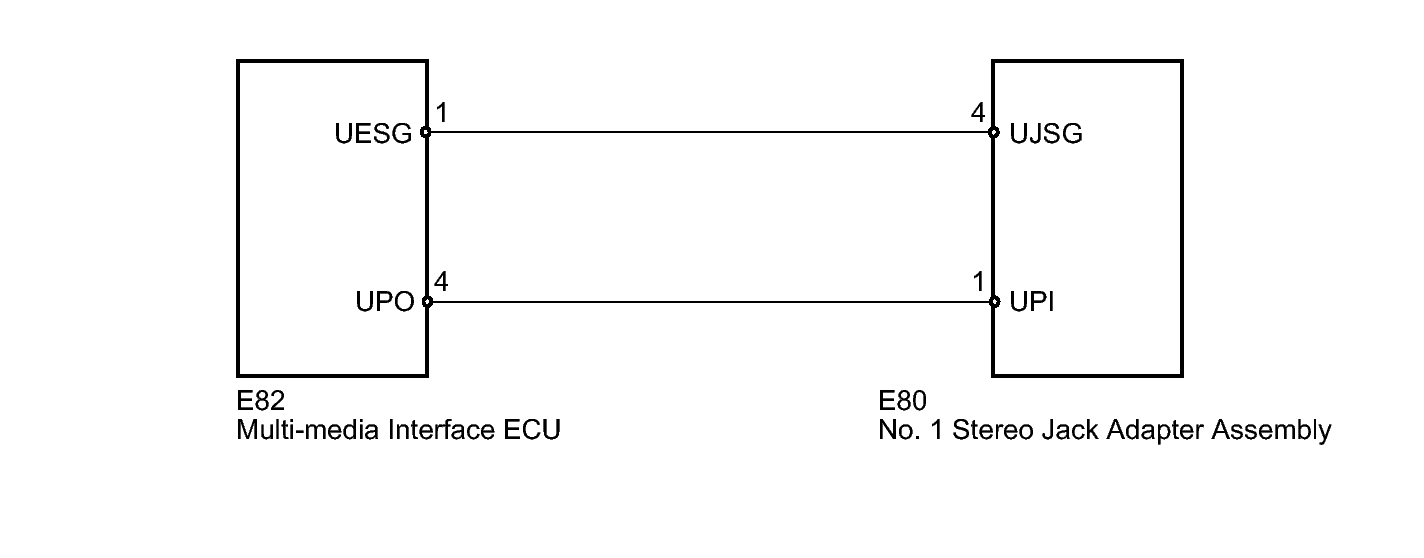

Fig 1: USB Circuit - Wiring Diagram
GTY292709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
