USB Audio System Recognition/Play Error: Wiring Diagram

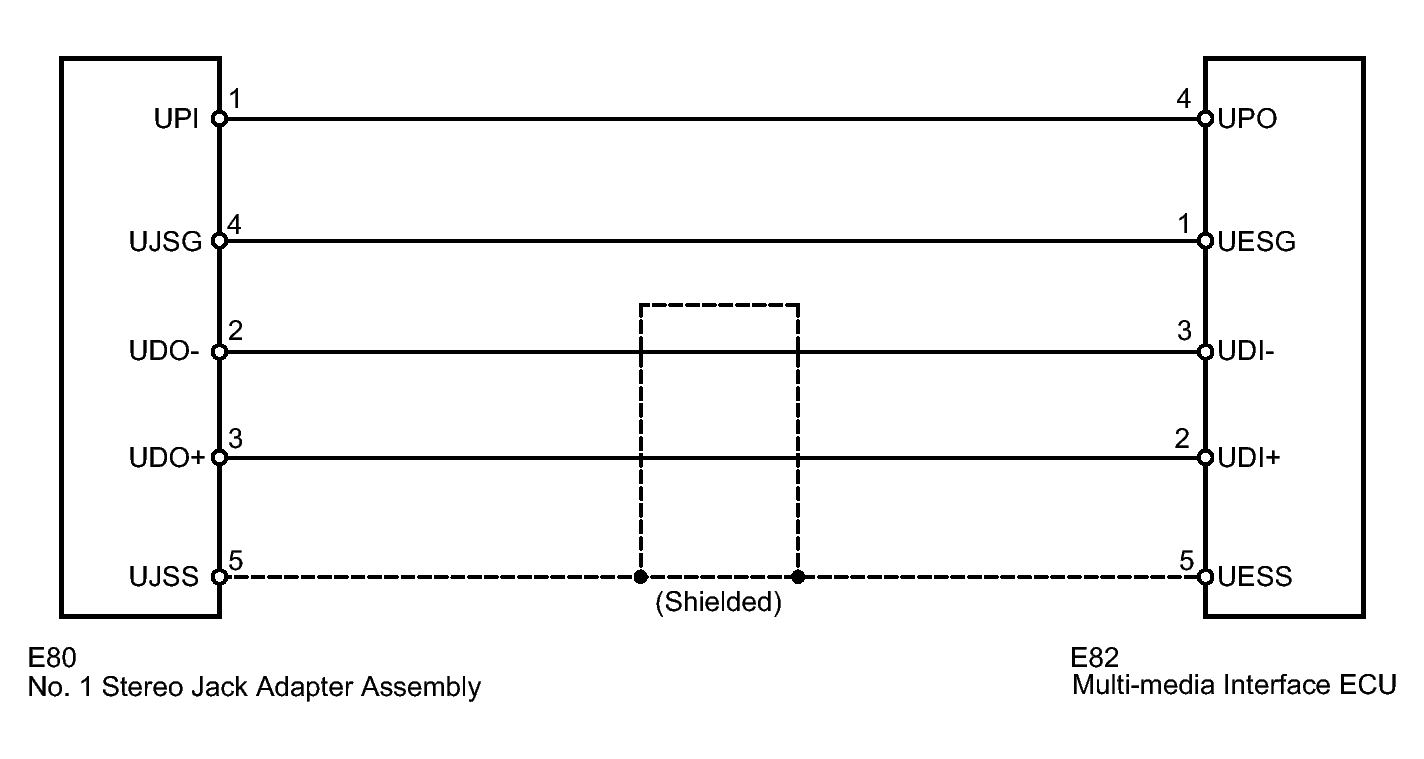

Fig 1: USB Audio System Recognition/Play Circuit - Wiring Diagram
GTY291995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
