Light Control Switch Circuit: Wiring Diagram

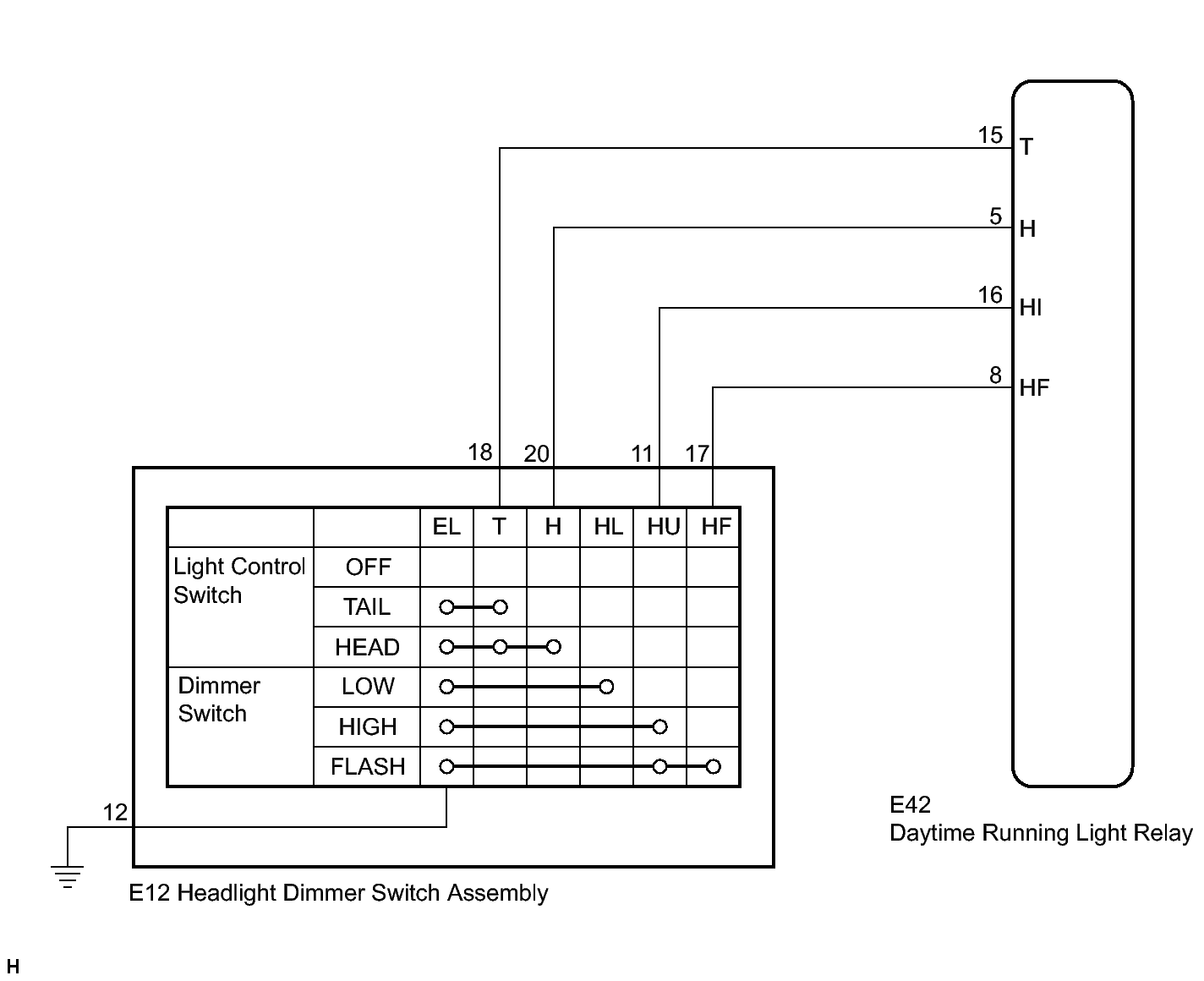

Fig 1: Identifying Light Control Switch Circuit Diagram
GTY227104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
