Section 190 (Air Conditioning System (Service Information)): Condenser: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL CONDENSER ASSEMBLY WITH RECEIVER
    1. Install the condenser assembly with receiver as shown in the illustration.

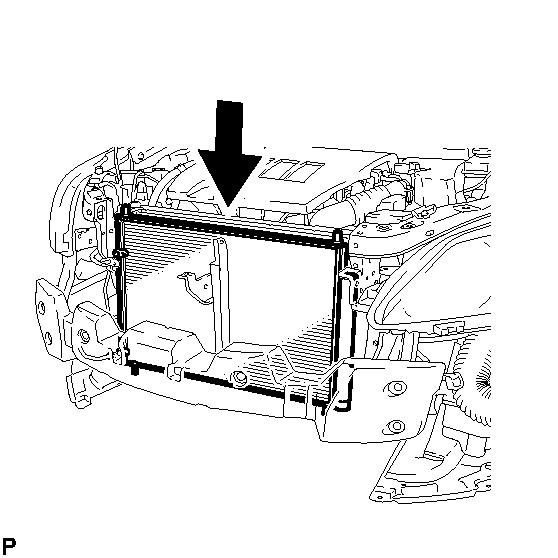

      Fig 1: Installing Condenser Assembly With Receiver
      GTY221778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      If the condenser is replaced with a new one, add compressor oil to the new condenser.

      Capacity

      40 cc (1.35 fl.oz.)

      Compressor oil

      ND-8 or equivalent

  2. CONNECT LIQUID PIPE SUB-ASSEMBLY
    1. Remove the attached vinyl tape from the tube and the connecting part of the cooler condenser assembly.
    2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the tube joint.

      Compressor oil

      ND-OIL 8 or equivalent

    3. Install the O-ring on the liquid pipe sub-assembly.
    4. Install the liquid pipe sub-assembly on the cooler condenser assembly with the bolt.

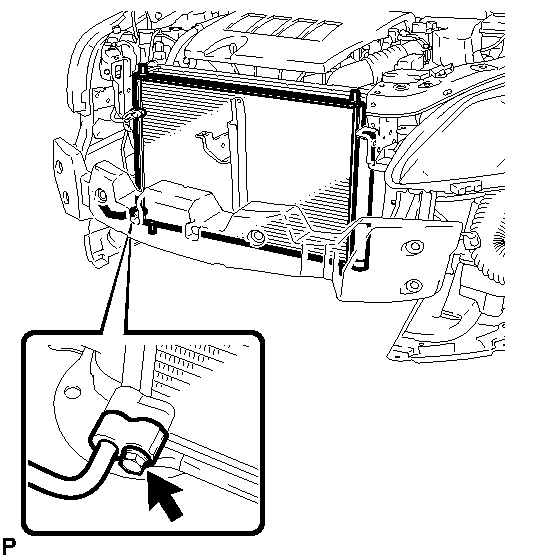

      Fig 2: Remove/Install Liquid Pipe Sub-Assembly
      GTY226146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  3. CONNECT DISCHARGE HOSE SUB-ASSEMBLY
    1. Remove the attached vinyl tape from the pipe and the connecting part of the cooler condenser assembly.
    2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the pipe joint.

      Compressor oil

      ND-OIL 8 or equivalent

    3. Install the O-ring on the discharge hose sub-assembly.
    4. Install the discharge hose sub-assembly on the cooler condenser assembly with the bolt.

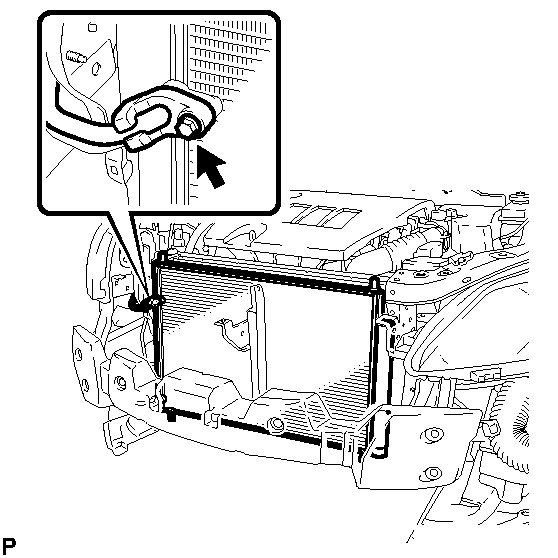

      Fig 3: Remove/Install Discharge Hose Sub-Assembly
      GTY225991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  4. CHARGE WITH REFRIGERANT  See step  2
  5. INSTALL NO. 2 FAN SHROUD (for 2AZ-FE)  . Refer to INSTALLATION - Step 4
  6. INSTALL NO. 2 FAN SHROUD (for 2ZR-FE)  . Refer to INSTALLATION - Step 4
  7. INSTALL UPPER RADIATOR SUPPORT SUB-ASSEMBLY (for 2AZ-FE)
    1. Install the upper radiator support sub-assembly with the 5 bolts.

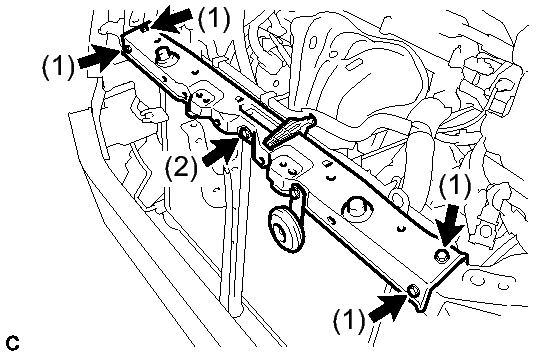

      Fig 4: Locating Upper Radiator Support Sub-Assembly With Bolts
      GTY212807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt (1)

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

      Bolt (2)

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

    2. Connect the horn connector.
      Fig 5: Locating Horn Connector
      GTY172289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL UPPER RADIATOR SUPPORT SUB-ASSEMBLY (for 2ZR-FE)
    1. Install the upper radiator support sub-assembly with the 5 bolts.

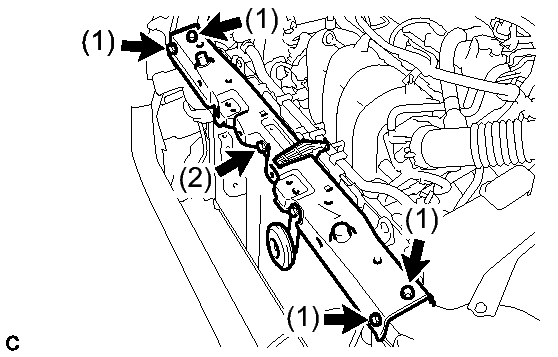

      Fig 6: Locating Upper Radiator Support Sub-Assembly With Bolts
      GTY247010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt (1)

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

      Bolt (2)

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

    2. Connect the horn connector.
      Fig 7: Locating Horn Connector
      GTY172289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. CONNECT WATER BY-PASS HOSE (for 2AZ-FE)
    1. Connect the water by-pass hose with the 2 clamps.

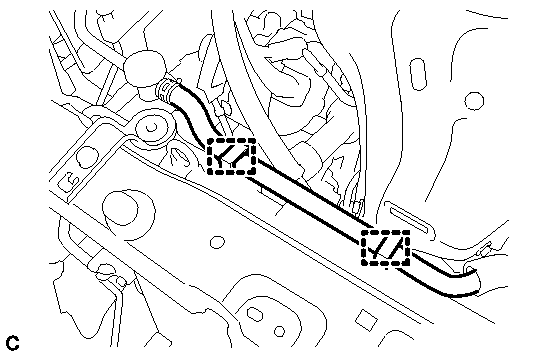

      Fig 8: View Of Water By-Pass Hose And Clamps
      GTY221495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. CONNECT WATER BY-PASS HOSE (for 2ZR-FE)
    1. Connect the water by-pass hose with the 3 clamps.

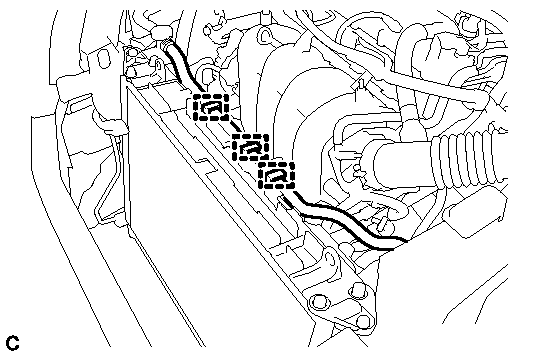

      Fig 9: View Of Water By-Pass Hose And Clamps
      GTY247008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL UPPER RADIATOR SUPPORT (for 2AZ-FE)  . Refer to INSTALLATION - Step 9
  12. INSTALL UPPER RADIATOR SUPPORT (for 2ZR-FE)  . Refer to INSTALLATION - Step 9
  13. INSTALL HOOD LOCK ASSEMBLY  . Refer to INSTALLATION - Step 3
  14. INSPECT HOOD SUB-ASSEMBLY  . Refer to ON-VEHICLE INSPECTION - Step 1
  15. ADJUST HOOD SUB-ASSEMBLY  . Refer to ADJUSTMENT - Step 1
  16. INSTALL FRONT BUMPER ASSEMBLY (except Sport Package)  . Refer to INSTALLATION - Step 1
  17. INSTALL FRONT BUMPER ASSEMBLY (for Sport Package)  . Refer to INSTALLATION - Step 2
  18. INSTALL RADIATOR GRILLE PROTECTOR  . Refer to INSTALLATION - Step 3
  19. INSTALL NO. 4 ENGINE UNDER COVER (for 2AZ-FE)  . Refer to INSTALLATION - Step 4
  20. WARM UP ENGINE  See step  3
  21. INSPECT FOR REFRIGERANT LEAK  See step  4
  22. ADJUST FOG LIGHT AIMING (w/ Fog Light)

    Refer to ADJUSTMENT
