Front Wiper Motor: Installation: Installation

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL WINDSHIELD WIPER MOTOR ASSEMBLY
1. Install the windshield wiper motor assembly with the 3 bolts.

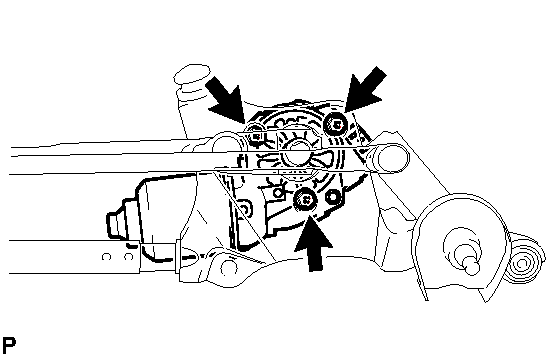

  Fig 1: Installing Windshield Wiper Motor Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
2. Apply MP grease to the crank arm pivot of the windshield wiper motor assembly.

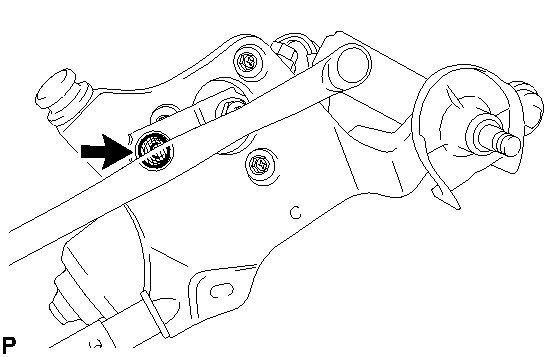

  Fig 2: Applying MP Grease To Crank Arm Pivot Of Windshield Wiper Motor Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the rod of the windshield wiper link assembly to the crank arm pivot of the windshield wiper motor assembly.

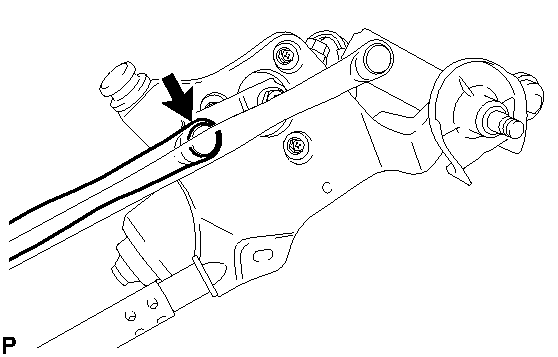

  Fig 3: Connecting Windshield Wiper Link Assembly Rod To Windshield Wiper Motor Assembly Crank Arm Pivot
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL WIPER MOTOR WIRE
1. Engage the clamp.

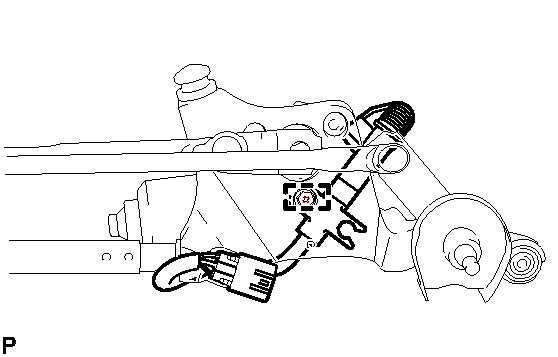

  Fig 4: Engaging Wiper Motor Wire Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.

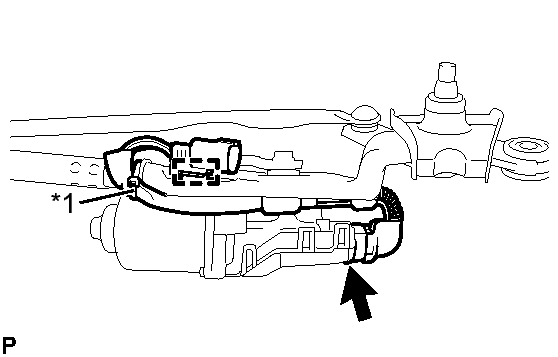

  Fig 5: Identifying Clamp And Wiper Motor Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Clamp
3. Engage the connector clamp.
4. Install a new clamp and the wiper motor wire.
INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
1. Install the windshield wiper motor and link assembly with the 2 bolts.

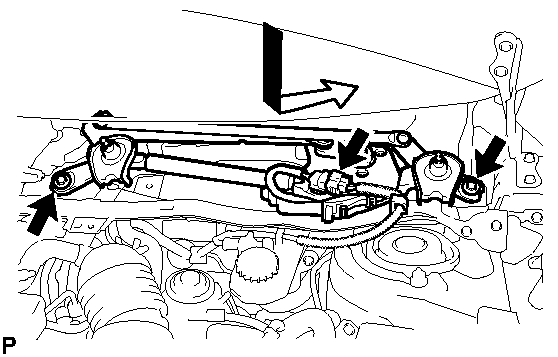

  Fig 6: Locating Windshield Wiper Motor And Link Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
2. Connect the connector.
INSTALL COWL TOP VENTILATOR LOUVER LH
1. Engage the clip and 8 claws to install the cowl top ventilator louver LH.

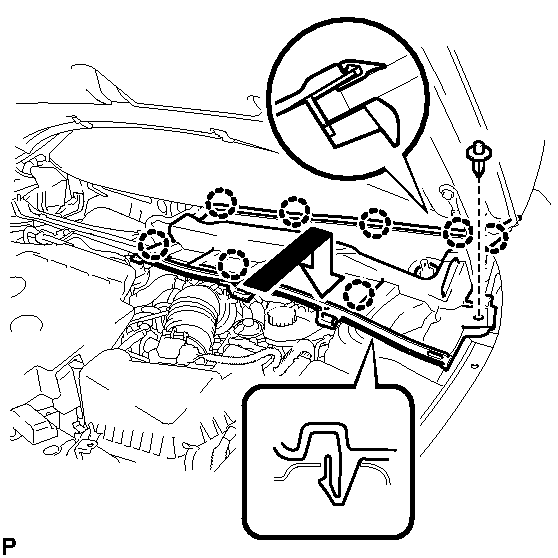

  Fig 7: Installing Cowl Top Ventilator Louver LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CENTER NO. 1 COWL TOP VENTILATOR LOUVER
1. Engage the clip and 14 claws to install the center No. 1 cowl top ventilator louver.

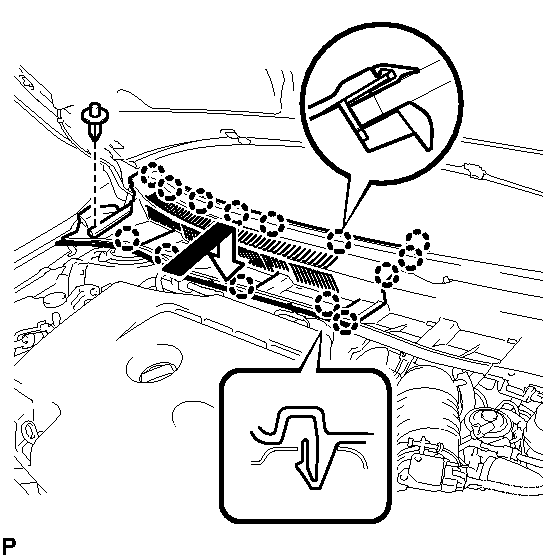

  Fig 8: Installing Center No. 1 Cowl Top Ventilator Louver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HOOD TO COWL TOP SEAL
1. Engage the 7 clips to install the hood to cowl top seal.

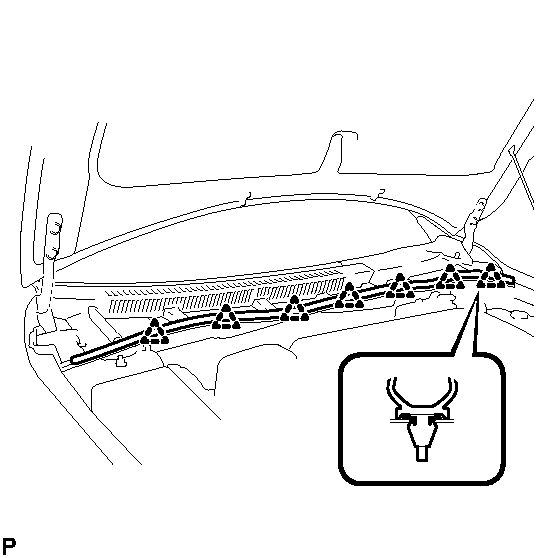

  Fig 9: Identifying Hood To Cowl Top Seal Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH

Operate the wiper and stop the windshield wiper motor at the automatic stop position.
Clean the wiper arm serrations.

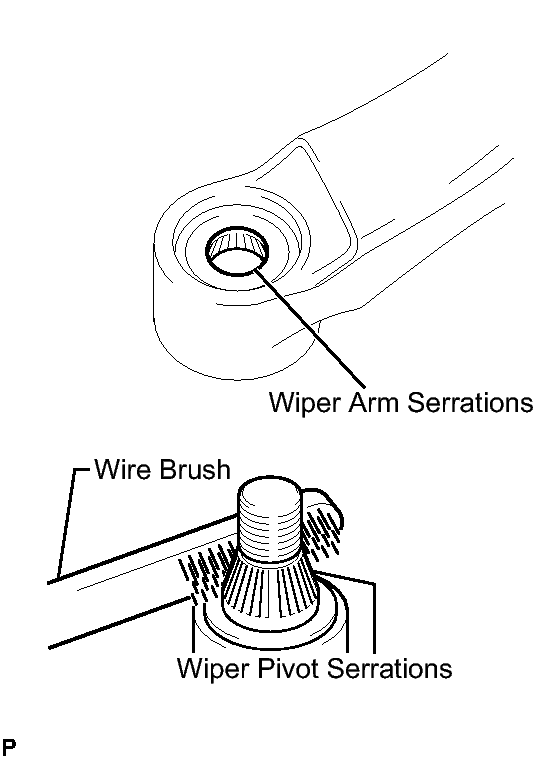

Fig 10: Cleaning Wiper Pivot Serrations Using Wire Brush
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
When reinstalling:
1. Clean the wiper pivot serrations with a wire brush.

Install the front wiper arm and blade assembly RH with the nut to the position shown in the illustration.

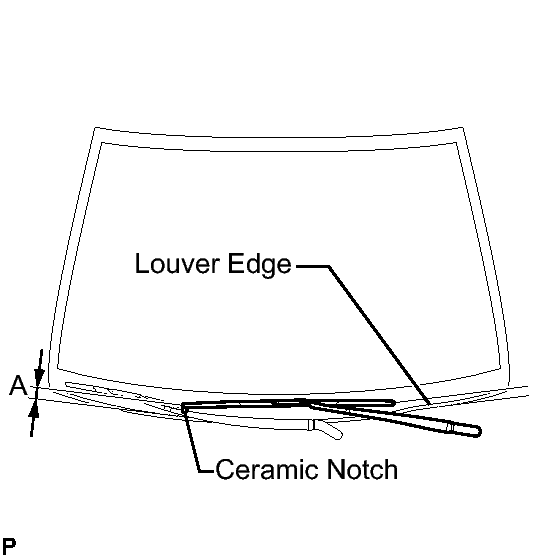

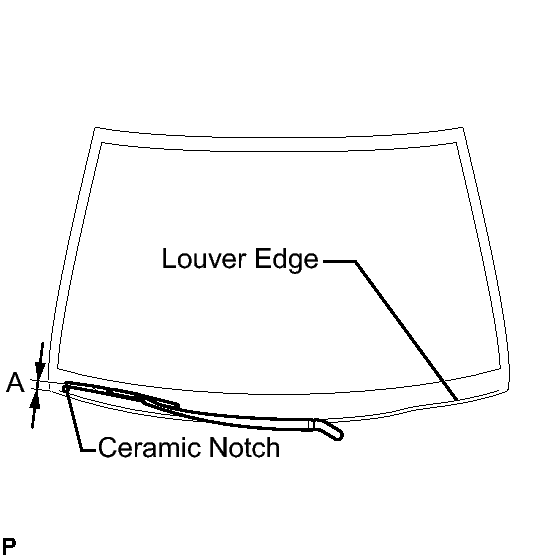

Fig 11: Identifying Front Wiper Arm And Blade Assembly Automatic Stop Position

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

HINT:

Hold the arm hinge by hand while fastening the nut.

Area	Measurement
A	27.5 to 42.5 mm (1.08 to 1.67 in.)

INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH

Operate the front wipers and stop the windshield wiper motor at the automatic stop position.
Clean the wiper arm serrations.

Fig 12: Cleaning Wiper Pivot Serrations Using Wire Brush
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
When reinstalling:
1. Clean the wiper pivot serrations with a wire brush.

Install the front wiper arm and blade assembly LH with the nut to the position shown in the illustration.

Fig 13: Identifying Front Wiper Arm And Blade Assembly Automatic Stop Position

Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

HINT:

Hold the arm hinge by hand while fastening the nut.

Area	Measurement
A	31.5 to 46.5 mm (1.24 to 1.83 in.)

Operate the front wipers while spraying washer fluid on the windshield glass. Make sure that the front wipers function properly and the wipers do not come into contact with the vehicle body.

INSTALL FRONT WIPER ARM HEAD CAP
1. Install the 2 front wiper arm head caps.

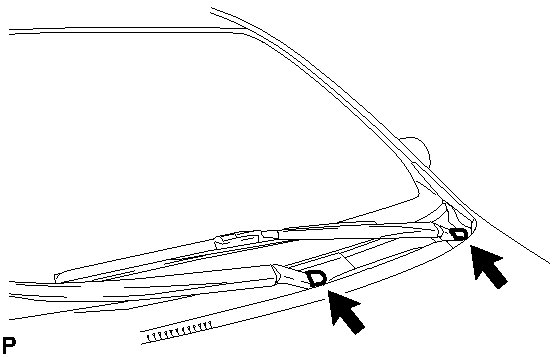

  Fig 14: Locating Windshield Wiper Arm Covers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
