Front Passenger Airbag Assembly: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL INSTRUMENT PANEL WIRE ASSEMBLY
    1. Install the clamp.
      Fig 1: Identifying Instrument Panel Wire Assembly And Clamp
      GTY205005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 airbag connectors.
      Fig 2: Locating Airbag Connectors Location
      GTY176855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the clamp and instrument panel wire assembly on the front passenger airbag assembly.
      NOTE:

      When connecting the airbag connector, take care not to damage the airbag wire harness.

  2. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
    1. Engage the 5 hooks.

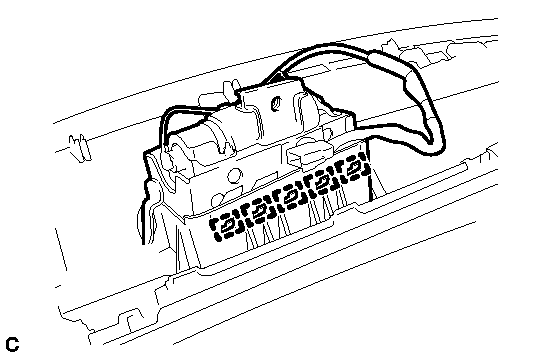

      Fig 3: Identifying Front Passenger Airbag Assembly And Hooks
      GTY205181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the front passenger airbag assembly with the 5 hooks on the instrument panel.

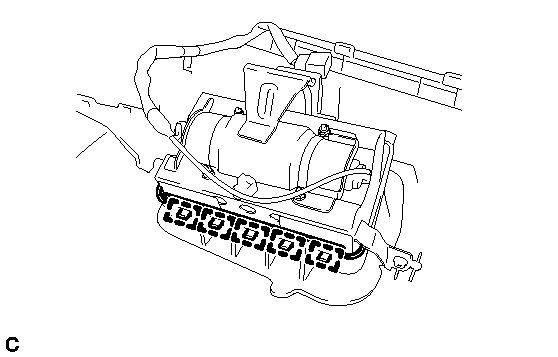

      Fig 4: Identifying Front Passenger Airbag Assembly With Hooks
      GTY205179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 screws.

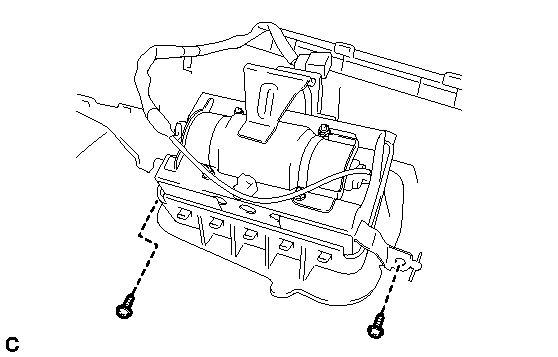

      Fig 5: Identifying Front Passenger Airbag Assembly And Screws
      GTY205153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 4 INSTRUMENT PANEL CUSHION (for TMC Made)  . Refer to REASSEMBLY - Step 14
  4. INSTALL NO. 3 HEATER TO REGISTER DUCT  . Refer to REASSEMBLY - Step 18
  5. INSTALL DEFROSTER NOZZLE ASSEMBLY  . Refer to REASSEMBLY - Step 21
  6. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 1
  7. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY
    1. Check that the ignition switch is off.
    2. Check that the cable is disconnected from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    3. Connect the connector.

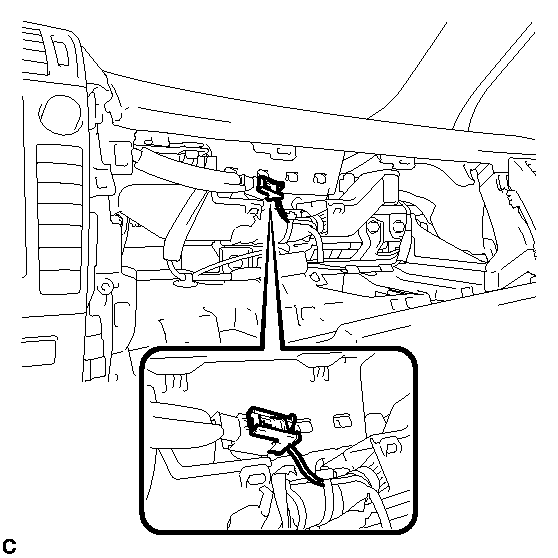

      Fig 6: Identifying Airbag Connector Location
      GTY202811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      When connecting the airbag connector, take care not to damage the airbag wire harness.

  8. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH  . Refer to INSTALLATION - Step 52
  9. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY  . Refer to INSTALLATION - Step 4
  10. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure for the RH side and LH side. Refer to INSTALLATION - Step 52 .

  11. INSTALL NO. 1 INSTRUMENT PANEL BOX DOOR SUB-ASSEMBLY  . Refer to INSTALLATION - Step 6
  12. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY  . Refer to INSTALLATION - Step 7
  13. INSTALL FRONT PILLAR GARNISH LH  . Refer to INSTALLATION - Step 61
  14. INSTALL FRONT PILLAR GARNISH RH  . Refer to INSTALLATION - Step 62
  15. INSTALL COMBINATION METER ASSEMBLY  . Refer to INSTALLATION - Step 1
  16. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY  . Refer to INSTALLATION - Step 2
  17. INSTALL CENTER INSTRUMENT PANEL REGISTER ASSEMBLY  . Refer to INSTALLATION - Step 12
  18. INSTALL INSTRUMENT PANEL FINISH PANEL END LH  . Refer to INSTALLATION - Step 13
  19. INSTALL INSTRUMENT PANEL FINISH PANEL END RH  . Refer to INSTALLATION - Step 14
  20. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH  . Refer to INSTALLATION - Step 15
  21. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL RH  . Refer to INSTALLATION - Step 16
  22. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  23. INSPECT SRS WARNING LIGHT
    1. Inspect the SRS warning light. Refer to DIAGNOSIS SYSTEM .
