Terminals Of ECM

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

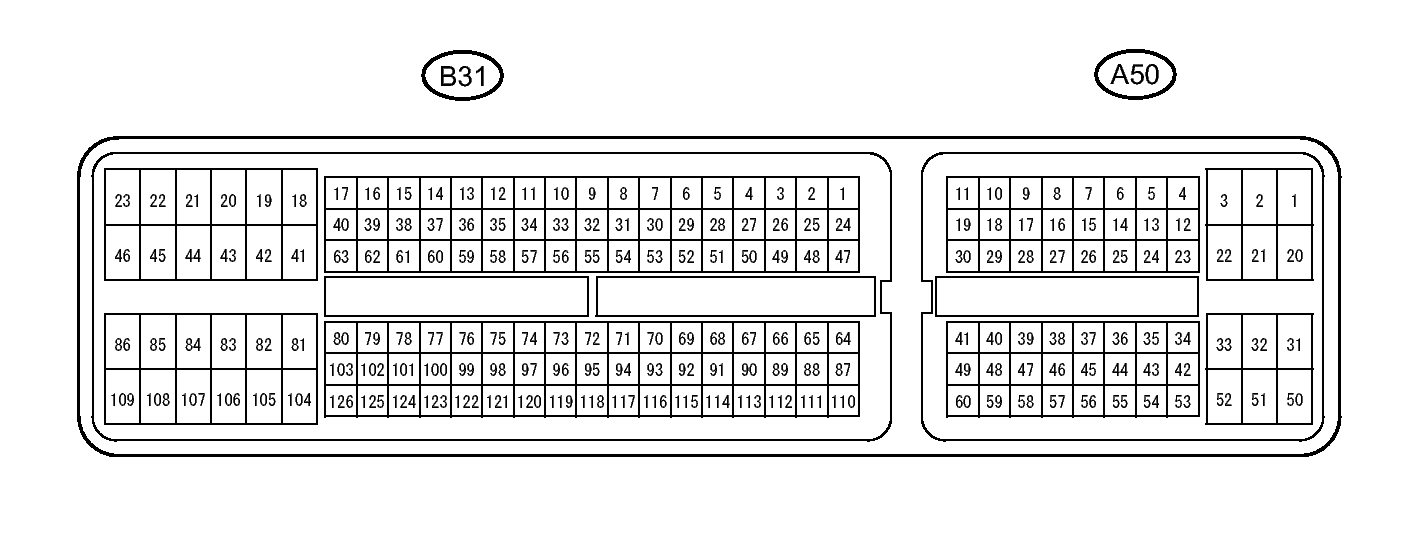

Fig 1: ECM Connector Terminal Identification
GTY182915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. CHECK ECM (2AZ-FE)
    Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
    A50-27 (TC) - B31-104 (E1) P - BR Body ground Ignition switch ON 11 to 14 V
    A50-27 (TC) - B31-104 (E1) P - BR Body ground Terminals TC and CG of DLC3 connected Below 1 V
    A50-36 (STP) - B31-104 (E1) L - BR Stop light signal Ignition switch ON, Brake pedal depressed 11 to 14 V
    A50-36 (STP) - B31-104 (E1) L - BR Stop light signal Ignition switch ON, Brake pedal released Below 1 V
    A50-40 (CCS) - B31-104 (E1) L-B - BR Cruise control main switch circuit Ignition switch ON 11 to 14 V
    A50-40 (CCS) - B31-104 (E1) L-B - BR Cruise control main switch circuit CANCEL switch ON 6.6 to 10.1 V
    A50-40 (CCS) - B31-104 (E1) L-B - BR Cruise control main switch circuit - (COAST)/SET switch ON 4.5 to 7.1 V
    A50-40 (CCS) - B31-104 (E1) L-B - BR Cruise control main switch circuit + (ACCEL)/RES (RESUME) switch ON 2.3 to 4.0 V
    A50-40 (CCS) - B31-104 (E1) L-B - BR Cruise control main switch circuit MAIN switch ON Below 1 V
    A50-35 (ST1-) - B31-104 (E1) R - BR Stop light signal Ignition switch ON, Brake pedal depressed Below 1 V
    A50-35 (ST1-) - B31-104 (E1) R - BR Stop light signal Ignition switch ON, Brake pedal released 11 to 14 V
    B31-56 (D)*1 - B31-104 (E1) LG - BR Clutch signal Ignition switch ON, Clutch pedal depressed Below 1 V
    B31-56 (D)*1 - B31-104 (E1) LG - BR Clutch signal Ignition switch ON, Clutch pedal released 11 to 14 V
    B31-56 (D)*2 - B31-104 (E1) P-G - BR D shift position switch signal Ignition switch ON, Shift lever in except D Below 1 V
    B31-56 (D)*2 - B31-104 (E1) P-G - BR D shift position switch signal Ignition switch ON, Shift lever in D 11 to 14 V
  2. CHECK ECM (2ZR-FE)
    Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
    A50-41 (TC) - B31-105 (E1) P - BR Body ground Ignition switch ON 11 to 14 V
    A50-41 (TC) - B31-105 (E1) P - BR Body ground Terminals TC and CG of DLC3 connected Below 1 V
    A50-36 (STP) - B31-105 (E1) L - BR Stop light signal Ignition switch ON, Brake pedal depressed 11 to 14 V
    A50-36 (STP) - B31-105 (E1) L - BR Stop light signal Ignition switch ON, Brake pedal released Below 1 V
    A50-40 (CCS) - B31-105 (E1) L-B - BR Cruise control main switch circuit Ignition switch ON 11 to 14 V
    A50-40 (CCS) - B31-105 (E1) L-B - BR Cruise control main switch circuit CANCEL switch ON 6.6 to 10.1 V
    A50-40 (CCS) - B31-105 (E1) L-B - BR Cruise control main switch circuit - (COAST)/SET switch ON 4.5 to 7.1 V
    A50-40 (CCS) - B31-105 (E1) L-B - BR Cruise control main switch circuit + (ACCEL)/RES (RESUME) switch ON 2.3 to 4.0 V
    A50-40 (CCS) - B31-105 (E1) L-B - BR Cruise control main switch circuit MAIN switch ON Below 1 V
    A50-35 (ST1-) - B31-105 (E1) R - BR Stop light signal Ignition switch ON, Brake pedal depressed Below 1 V
    A50-35 (ST1-) - B31-105 (E1) R - BR Stop light signal Ignition switch ON, Brake pedal released 11 to 14 V
    A50-47 (D)*1 - B31-105 (E1) LG - BR Clutch signal Ignition switch ON, Clutch pedal depressed Below 1 V
    A50-47 (D)*1 - B31-105 (E1) LG - BR Clutch signal Ignition switch ON, Clutch pedal released 11 to 14 V
    A50-47 (D)*2 - B31-105 (E1) P - BR D shift position switch signal Ignition switch ON, Shift lever in except D Below 1 V
    A50-47 (D)*2 - B31-105 (E1) P - BR D shift position switch signal Ignition switch ON, Shift lever in D 11 to 14 V
    • *1: for M/T
    • *2: for A/T
