Cruise Control Main Switch: Inspection: Inspection
WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

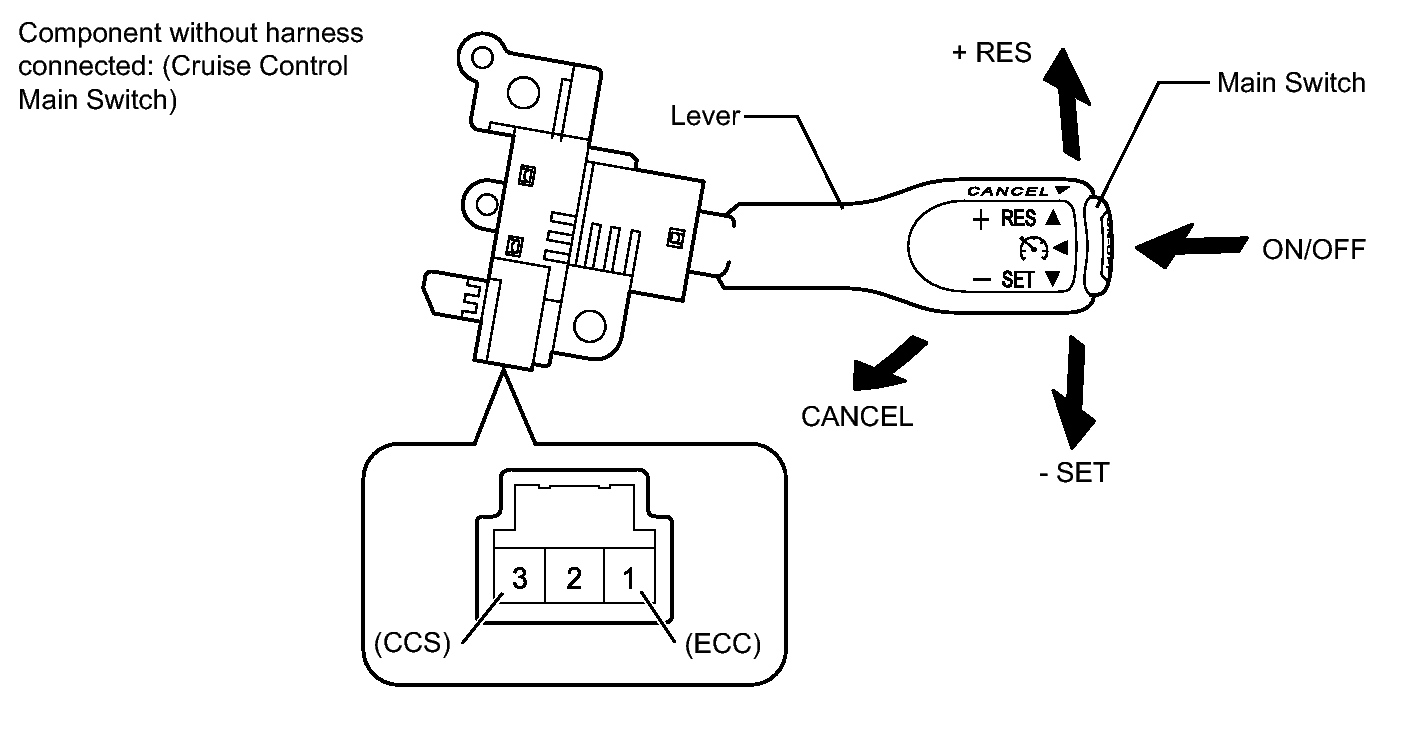

- INSPECT CRUISE CONTROL MAIN SWITCH
- Remove the cruise control main switch. Refer to REMOVAL .
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Switch Condition Specified Condition 1 (ECC) - 3 (CCS) Main Switch off 1 MΩ or higher Main Switch on Below 2.5 Ω + RES 235 to 245 Ω - SET 617 to 643 Ω CANCEL 1509 to 1571 Ω If the result is not as specified, replace the cruise control main switch.
