Valve Body Assembly: Reassembly: Reassembly

WARNING: This page is about a different variant/trim than selected.

INSTALL SHIFT SOLENOID VALVE SL1
1. Install the shift solenoid valve SL1 and lock plate to the valve body assembly with the bolt.

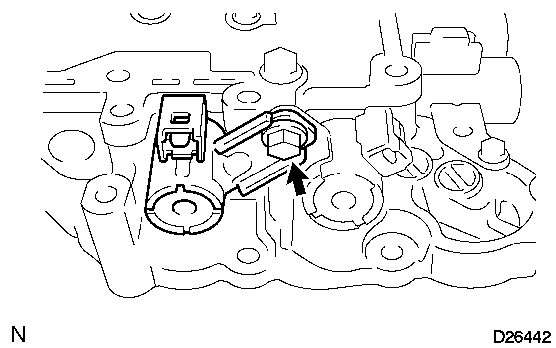

  Fig 1: Remove/Install Shift Solenoid Valve SL1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 6.6 N*m (67 kgf*cm, 58 in.*lbf)
INSTALL SHIFT SOLENOID VALVE SL2
1. Install the shift solenoid valve SL2 and lock plate to the valve body assembly with the bolt.

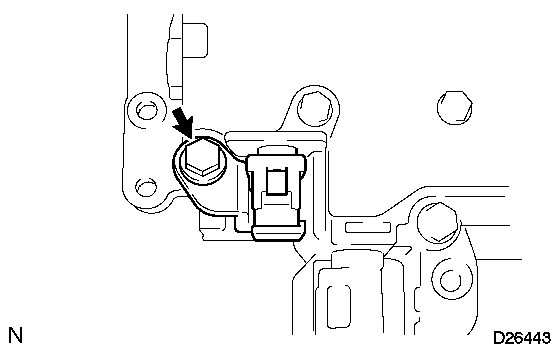

  Fig 2: Installing Shift Solenoid Valve SL2 And Lock Plate To Valve Body With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)
INSTALL SHIFT SOLENOID VALVE DSL
1. Install the shift solenoid valve DSL to the valve body assembly with the bolt.

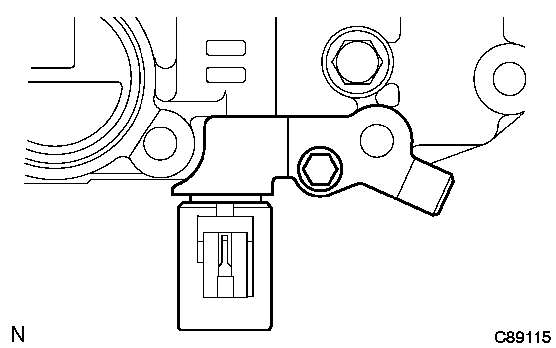

  Fig 3: Remove/Install Shift Solenoid Valve DSL
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)
INSTALL SHIFT SOLENOID VALVE SR
1. Install the shift solenoid valve SR to the valve body assembly.

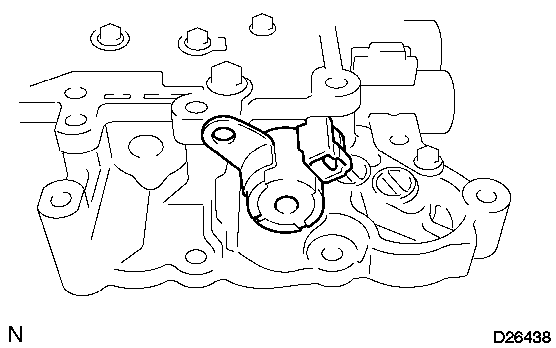

  Fig 4: Remove/Install Shift Solenoid Valve SR
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE S4
1. Install the shift solenoid valve S4 to the valve body assembly with the bolt.

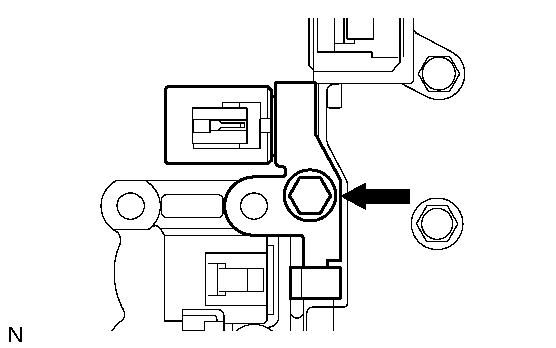

  Fig 5: Remove/Install Shift Solenoid Valve S4
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)
INSTALL SHIFT SOLENOID VALVE SL3
1. Install the shift solenoid valve SL3 to the valve body assembly.
INSTALL SHIFT SOLENOID VALVE SLT
1. Install the shift solenoid valve SLT and lock plate to the valve body assembly with the bolt.

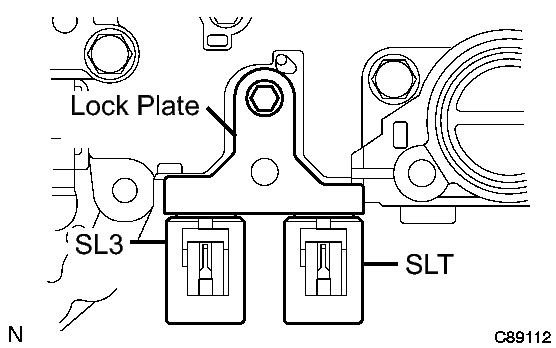

  Fig 6: Remove/Install Lock Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 6.6 N*m (67 kgf*cm, 58 in.*lbf)
