Automatic Transaxle Assembly: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
HINT:

See the steps from "Discharge Fuel System Pressure" through "Engine Assembly with Transaxle". Refer to REMOVAL .
INSTALL ENGINE HANGERS . Refer to REMOVAL - Step 60
REMOVE DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT
1. Remove the flywheel housing under cover.

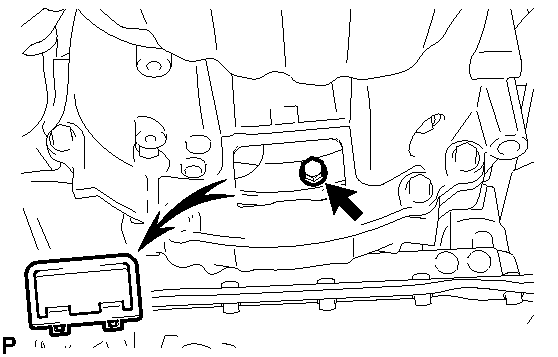

  Fig 1: Removing Automatic Transaxle Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the crankshaft to gain access and remove the 6 bolts while holding the crankshaft pulley bolt with a wrench.
  HINT:

  There will be one black colored bolt.
REMOVE FRONT ENGINE MOUNTING INSULATOR . Refer to REMOVAL - Step 61
REMOVE REAR ENGINE MOUNTING INSULATOR . Refer to REMOVAL - Step 63
REMOVE STARTER ASSEMBLY . Refer to REMOVAL - Step 9

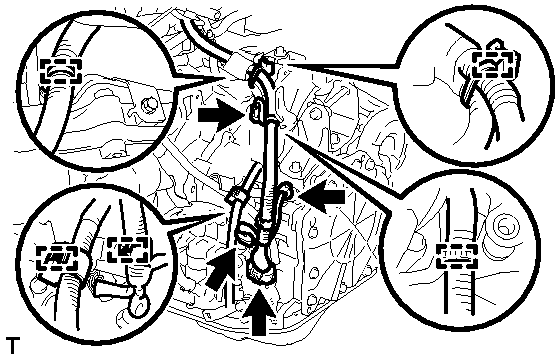

DISCONNECT WIRE HARNESS
1. Disconnect the park/neutral position switch connector.

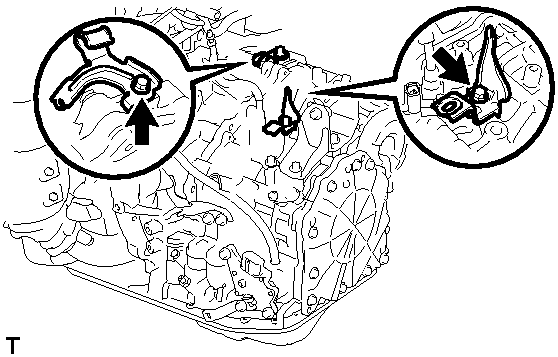

  Fig 2: Locating Park/Neutral Position Switch And Transmission Wire Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the transmission wire connector.
3. Disconnect the 2 speed sensor connectors.
4. Disconnect the 5 wire harness clamps.
5. Remove the bolt and wire harness bracket.

  Fig 3: Locating Wire Harness Bracket Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

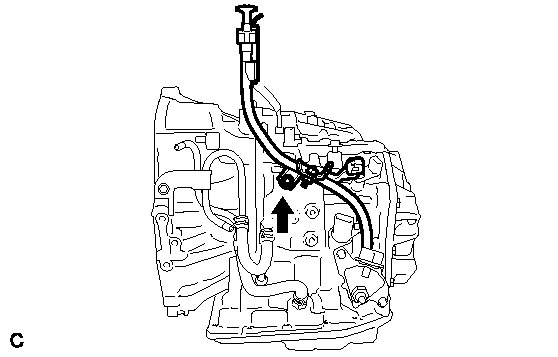

6. Remove the bolt and transmission control cable support.
REMOVE REAR ENGINE MOUNTING BRACKET
1. Remove the 2 bolts and mounting bracket.

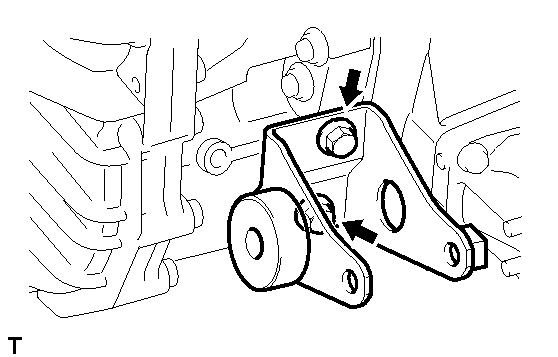

  Fig 4: Locating Rear Engine Mounting Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT ENGINE MOUNTING BRACKET
1. Remove the 3 bolts and mounting bracket.

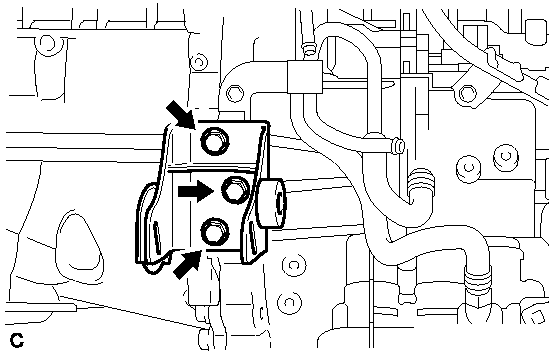

  Fig 5: Locating Front Engine Mounting Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

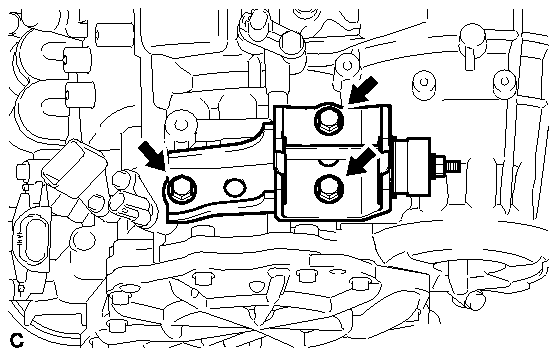

REMOVE ENGINE MOUNTING BRACKET LH
1. Remove the 3 bolts and mounting bracket.

  Fig 6: Locating Engine Mounting Bracket Bolts - LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSFER STIFFENER PLATE RH . Refer to REMOVAL - Step 8
REMOVE AUTOMATIC TRANSAXLE ASSEMBLY

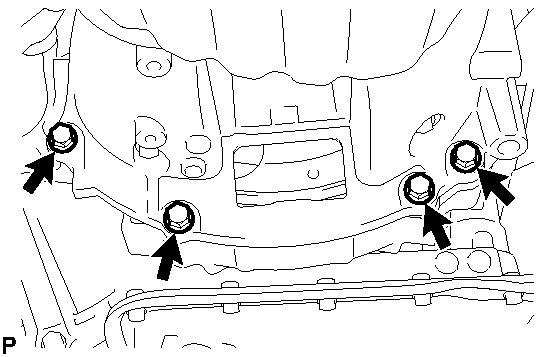

1. Remove the 4 lower side mounting bolts.

  Fig 7: Locating Lower Side Mounting Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 5 upper side mounting bolts.

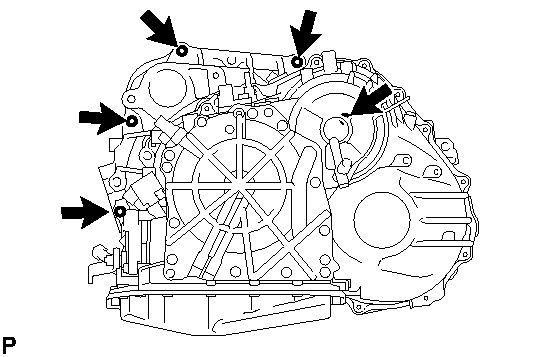

  Fig 8: Locating Automatic Transaxle Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Separate and remove the automatic transaxle.
REMOVE TRANSFER ASSEMBLY . Refer to REMOVAL - Step 10
REMOVE NO. 1 TRANSMISSION CONTROL CABLE BRACKET
1. Remove the 2 bolts and No. 1 transmission control cable bracket.

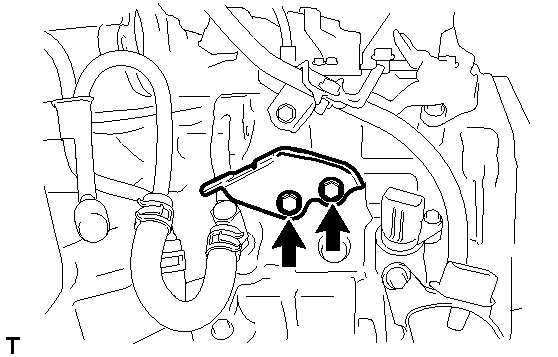

  Fig 9: Locating No. 1 Transmission Control Cable Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION OIL FILLER TUBE SUB-ASSEMBLY
1. Remove the transmission oil level gauge sub-assembly.

  Fig 10: Locating Bolt And Transmission Oil Filler Tube Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and transmission oil filler tube sub-assembly.
3. Remove the O-ring from the transmission oil filler tube sub-assembly.
REMOVE OIL COOLER TUBE
1. Remove the 2 hose clamps, bolt and oil cooler tube.

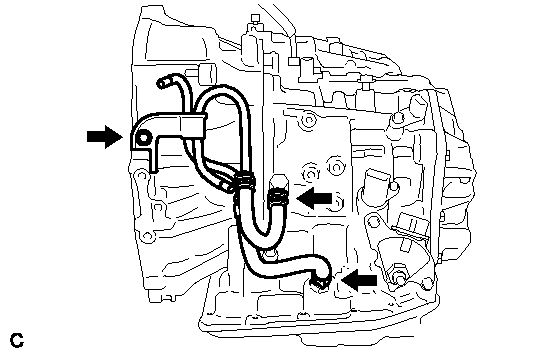

  Fig 11: Locating Hose Clamps And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SPEEDOMETER DRIVEN HOLE COVER SUB-ASSEMBLY
1. Remove the bolt and hole cover from the transaxle case.

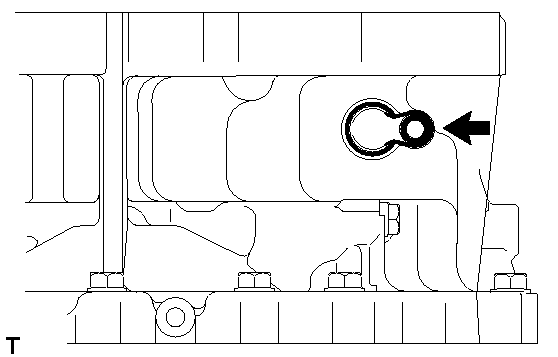

  Fig 12: Locating Hole Cover O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the O-ring from the hole cover.
REMOVE TORQUE CONVERTER ASSEMBLY
1. Remove the torque converter assembly from the automatic transaxle.
