Purge Valve: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL VACUUM SWITCHING VALVE
    1. Install the vacuum switching valve onto the air cleaner hose.

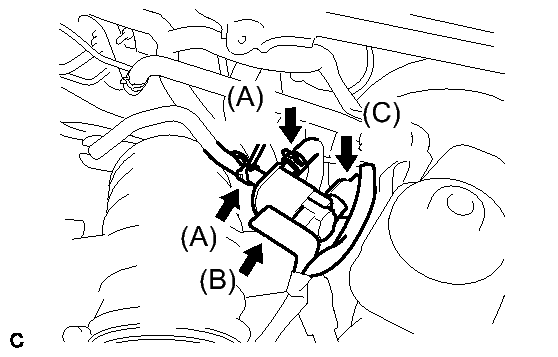

      Fig 1: Locating Vacuum Switching Valve, Wire Harness Clamp And Vacuum Switching Valve Connector
      GTY194567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 purge line hoses to the vacuum switching valve. (A)
    3. Connect the wire harness clamp. (B)
    4. Connect the vacuum switching valve connector. (C)
