Front Seat Inner Belt Assembly: Installation: Installation

INSTALL FRONT SEAT INNER BELT ASSEMBLY
1. Install the front seat inner belt assembly with the nut.

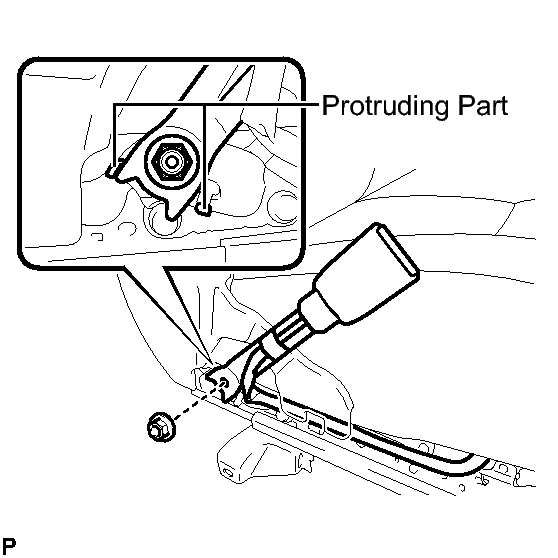

  Fig 1: Identifying Front Seat Inner Belt Assembly And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  NOTE:
  Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding part of the front seat adjuster.
2. Connect each connector and clamp.
INSTALL FRONT SEAT ASSEMBLY . Refer to INSTALLATION - Step 1
INSPECT FRONT SEAT SLIDE ADJUSTER LOCK . Refer to INSTALLATION - Step 2
INSTALL INNER SEAT TRACK COVER . Refer to INSTALLATION - Step 3
INSTALL INNER SEAT TRACK COVER (for 4WD RH Side) . Refer to INSTALLATION - Step 4
INSTALL OUTER SEAT TRACK COVER . Refer to INSTALLATION - Step 4
INSTALL FRONT SEAT HEADREST ASSEMBLY
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Front Seat Side Airbag)
INSPECT SRS WARNING LIGHT (w/ Front Seat Side Airbag)
Refer to DIAGNOSIS SYSTEM
