DTC B1810/53: Short in Driver Side Squib 2nd Step Circuit; DTC B1811/53: Open in Driver Side Squib 2nd Step Circuit; DTC B1812/53: Short to GND in Driver Side Squib 2nd Step Circuit; DTC B1813/53: Short to B+ in Driver Side Squib 2nd Step Circuit: Procedure

  1. CHECK CONNECTORS
    1. Turn the ignition switch off.

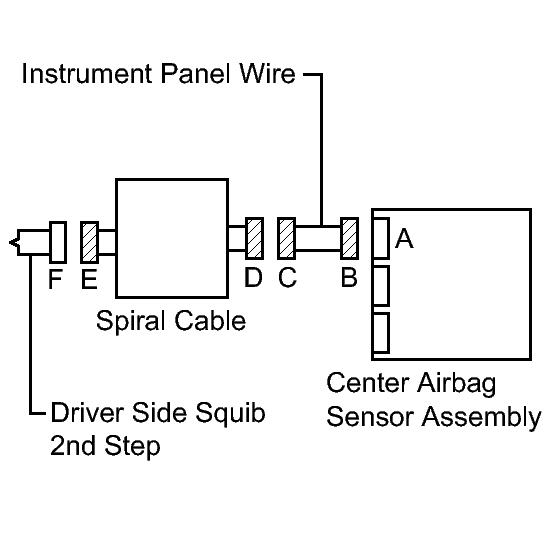

      Fig 1: Checking Connectors
      GTY128910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Check that the connectors are properly connected to the steering pad, spiral cable and center airbag sensor assembly.

      OK

      The connectors are properly connected.

      HINT:

      If the connectors are not connected securely, reconnect the connectors and proceed to the next inspection.

    4. Disconnect the connectors from the steering pad, spiral cable and center airbag sensor assembly.
    5. Check that the terminals of the connectors are not damaged.

      OK

      The terminals are not deformed or damaged.

    6. Check that the spiral cable connector (on the steering pad side) is not damaged.

      OK

      The lock button is not disengaged, and the claw of the lock is not deformed or damaged.

    7. Check that the short springs for the instrument panel wire and spiral cable with the activation prevention mechanism are not deformed or damaged.

      OK

      The short springs are not deformed or damaged.

    NG → REPLACE WIRE HARNESS

    OK: Go to next step

  2. CHECK STEERING PAD (DRIVER SIDE SQUIB 2ND STEP)
    1. Connect the instrument panel wire to the center airbag sensor assembly and spiral cable.

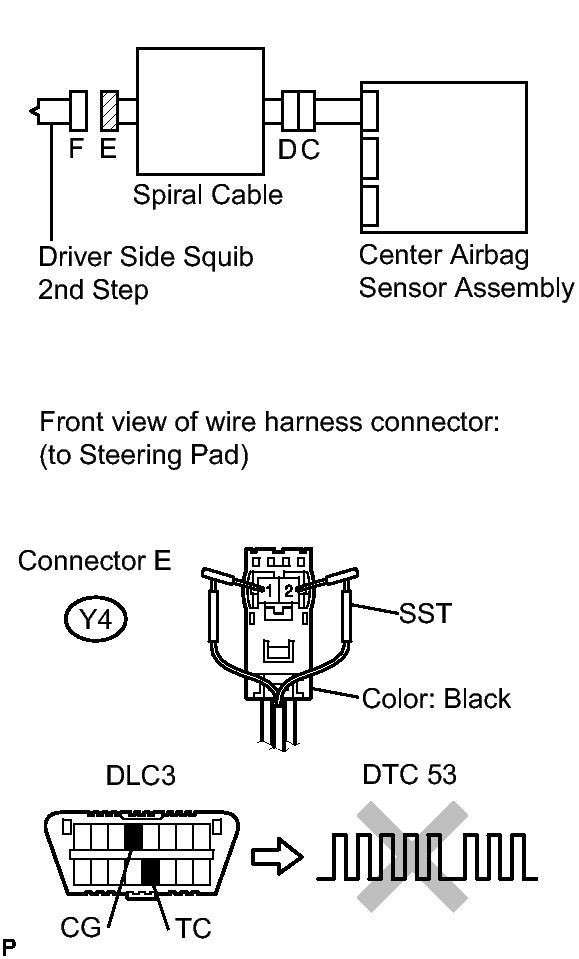

      Fig 2: Checking Steering Pad Using SST (Driver Side Squib 2nd Step)
      GTY204475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect SST (resistance 2.1 Ω) to connector E (black connector).
      WARNING:

      Never connect a tester to the steering pad (driver side squib 2nd step) for measurement, as this may lead to a serious injury due to airbag deployment.

      NOTE:
      • Do not forcibly insert SST into the terminals of the connector.
      • Insert SST straight into the terminals of the connector.
      • SST: 09843-18061
    3. Connect the cable to the negative (-) battery terminal.
    4. Turn the ignition switch to ON, and wait for at least 60 seconds.
    5. Clear the DTCs stored in the memory. Refer to DTC CHECK / CLEAR .
    6. Turn the ignition switch off.
    7. Turn the ignition switch to ON, and wait for at least 60 seconds.
    8. Check for DTCs. Refer to DTC CHECK / CLEAR .

      OK

      DTC B1810, B1811, B1812, B1813, or 53 is not output.

      HINT:

      Codes other than DTC B1810, B1811, B1812, B1813, and 53 may be output at this time, but they are not related to this check.

    NG → See step   4

    OK → See step   3

  3. REPLACE STEERING PAD. Refer to  REMOVAL
  4. CHECK DRIVER SIDE SQUIB 2ND STEP CIRCUIT
    1. Turn the ignition switch off.

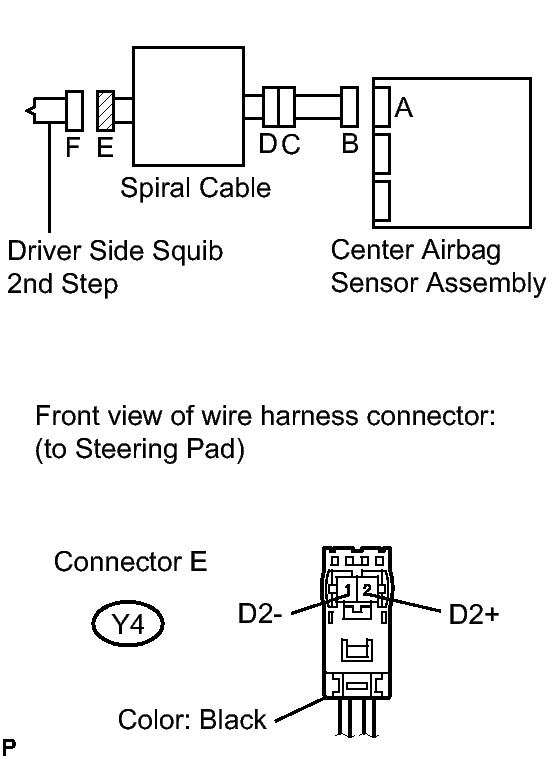

      Fig 3: Checking Driver Side Squib 2nd Step Circuit And Y4 Connector Terminals
      GTY204476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Disconnect SST from connector E.
    4. Disconnect the instrument panel wire from the center airbag sensor assembly.
    5. Check for a short to B+ in the circuit.
      1. Connect the cable to the negative (-) battery terminal.
      2. Turn the ignition switch to ON.
      3. Measure the voltage according to the value(s) in the table below.

        Standard Voltage

        Tester Connection Switch Condition Specified Condition
        Y4-2 (D2+) - Body ground Ignition switch ON Below 1 V
        Y4-1 (D2-) - Body ground Ignition switch ON Below 1 V
    6. Check for an open in the circuit.
      1. Turn the ignition switch off.
      2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
      3. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        Y4-2 (D2+) - Y4-1 (D2-) Always Below 1 Ω
    7. Check for a short to ground in the circuit.
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        Y4-2 (D2+) - Body ground Always 1 MΩ or higher
        Y4-1 (D2-) - Body ground Always 1 MΩ or higher
    8. Check for a short in the circuit.
      1. Release the activation prevention mechanism built into connector B. Refer to DIAGNOSIS SYSTEM .
      2. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        Y4-2 (D2+) - Y4-1 (D2-) Always 1 MΩ or higher

    NG → See step   6

    OK: Go to next step

  5. CHECK CENTER AIRBAG SENSOR ASSEMBLY
    1. Restore the released activation prevention mechanism of connector B to the original condition.

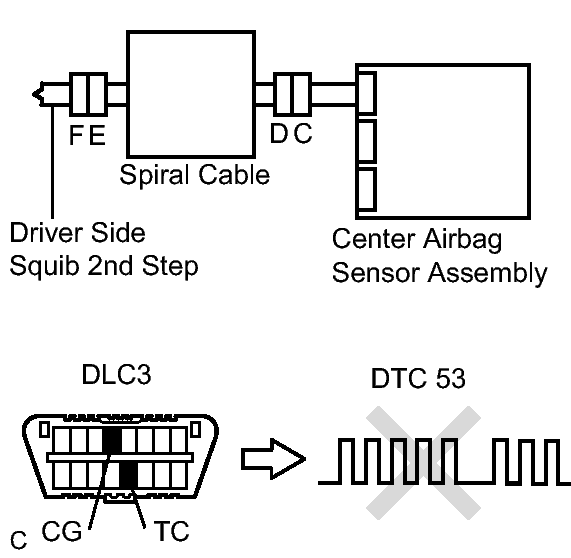

      Fig 4: Checking Center Airbag Sensor Assembly
      GTY141038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connectors to the steering pad and the center airbag sensor assembly.
    3. Connect the cable to the negative (-) battery terminal.
    4. Turn the ignition switch to ON, and wait for at least 60 seconds.
    5. Clear the DTCs stored in the memory. Refer to DTC CHECK / CLEAR .
    6. Turn the ignition switch off.
    7. Turn the ignition switch to ON, and wait for at least 60 seconds.
    8. Check for DTCs. Refer to DTC CHECK / CLEAR .

      OK

      DTC B1810, B1811, B1812, B1813, or 53 is not output.

      HINT:

      Codes other than DTC B1810, B1811, B1812, B1813, and 53 may be output at this time, but they are not related to this check.

    NG → See step   8

    OK → See step   9

  6. CHECK INSTRUMENT PANEL WIRE
    1. Restore the released activation prevention mechanism of connector B to the original condition.

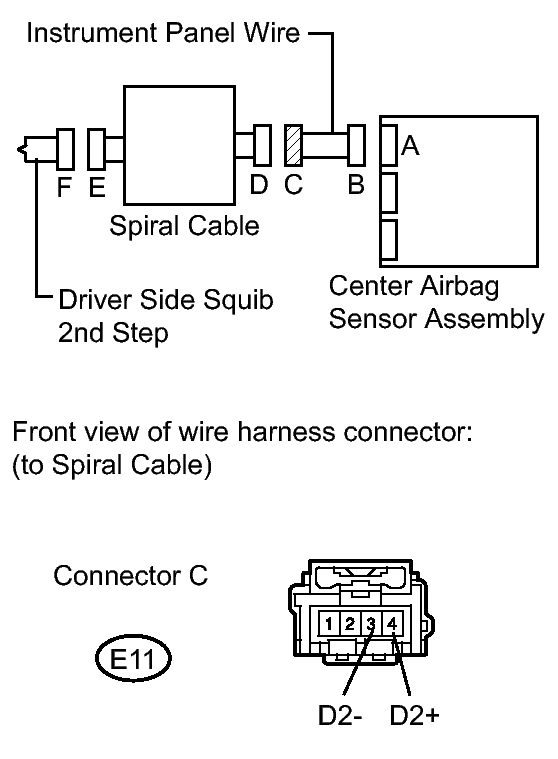

      Fig 5: Checking Instrument Panel Wire And E11 Connector Terminals
      GTY244383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the instrument panel wire from the spiral cable.
    3. Check for a short to B+ in the circuit.
      1. Connect the cable to the negative (-) battery terminal.
      2. Turn the ignition switch to ON.
      3. Measure the voltage according to the value(s) in the table below.

        Standard Voltage

        Tester Connection Switch Condition Specified Condition
        E11-4 (D2+) - Body ground Ignition switch ON Below 1 V
        E11-3 (D2-) - Body ground Ignition switch ON Below 1 V
    4. Check for an open in the circuit.
      1. Turn the ignition switch off.
      2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
      3. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        E11-4 (D2+) - E11-3 (D2-) Always Below 1 Ω
    5. Check for a short to ground in the circuit.
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        E11-4 (D2+) - Body ground Always 1 MΩ or higher
        E11-3 (D2-) - Body ground Always 1 MΩ or higher
    6. Check for a short in the circuit.
      1. Release the activation prevention mechanism built into connector B. Refer to DIAGNOSIS SYSTEM .
      2. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        E11-4 (D2+) - E11-3 (D2-) Always 1 MΩ or higher

    NG → REPLACE INSTRUMENT PANEL WIRE

    OK: Go to next step

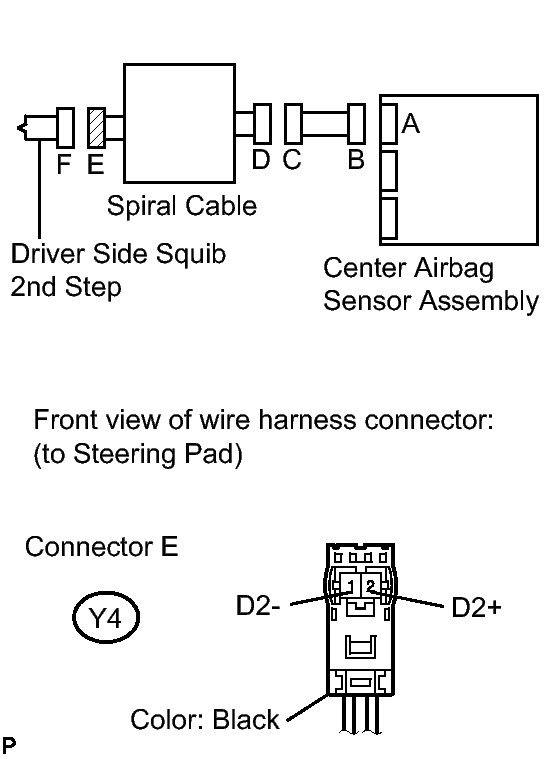

  7. CHECK SPIRAL CABLE
    1. Check for a short to B+ in the circuit.
      Fig 6: Checking Spiral Cable And Y4 Connector Terminals
      GTY185453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the cable to the negative (-) battery terminal.
      2. Turn the ignition switch to ON.
      3. Measure the voltage according to the value(s) in the table below.

        Standard Voltage

        Tester Connection Switch Condition Specified Condition
        Y4-2 (D2+) - Body ground Ignition switch ON Below 1 V
        Y4-1 (D2-) - Body ground Ignition switch ON Below 1 V
    2. Check for an open in the circuit.
      1. Turn the ignition switch off.
      2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
      3. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        Y4-2 (D2+) - Y4-1 (D2-) Always Below 1 Ω
    3. Check for a short to ground in the circuit.
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        Y4-2 (D2+) - Body ground Always 1 MΩ or higher
        Y4-1 (D2-) - Body ground Always 1 MΩ or higher
    4. Check for a short in the circuit.
      1. Release the activation prevention mechanism built into connector D. Refer to DIAGNOSIS SYSTEM .
      2. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        Y4-2 (D2+) - Y4-1 (D2-) Always 1 MΩ or higher

    NG → See step   10

    OK → See step   9

  8. REPLACE CENTER AIRBAG SENSOR ASSEMBLY. Refer to  REMOVAL
  9. USE SIMULATION METHOD TO CHECK. Refer to  DIAGNOSIS SYSTEM
  10. REPLACE SPIRAL CABLE. Refer to  REMOVAL
