Curtain Shield Airbag Assembly: Installation: Installation

1. Check that the ignition switch is off.
2. Check that the cable is disconnected from the negative (-) battery terminal.
   WARNING:

   Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

3. Temporarily install the new curtain shield airbag assembly to the body panel with the 5 hooks.
   NOTE:

   • If the curtain shield airbag assembly is removed, replace it with a new one.
   • Do not twist the curtain shield airbag assembly when installing it.
4. Install 4 new clips with the curtain shield airbag assembly to the body panel.

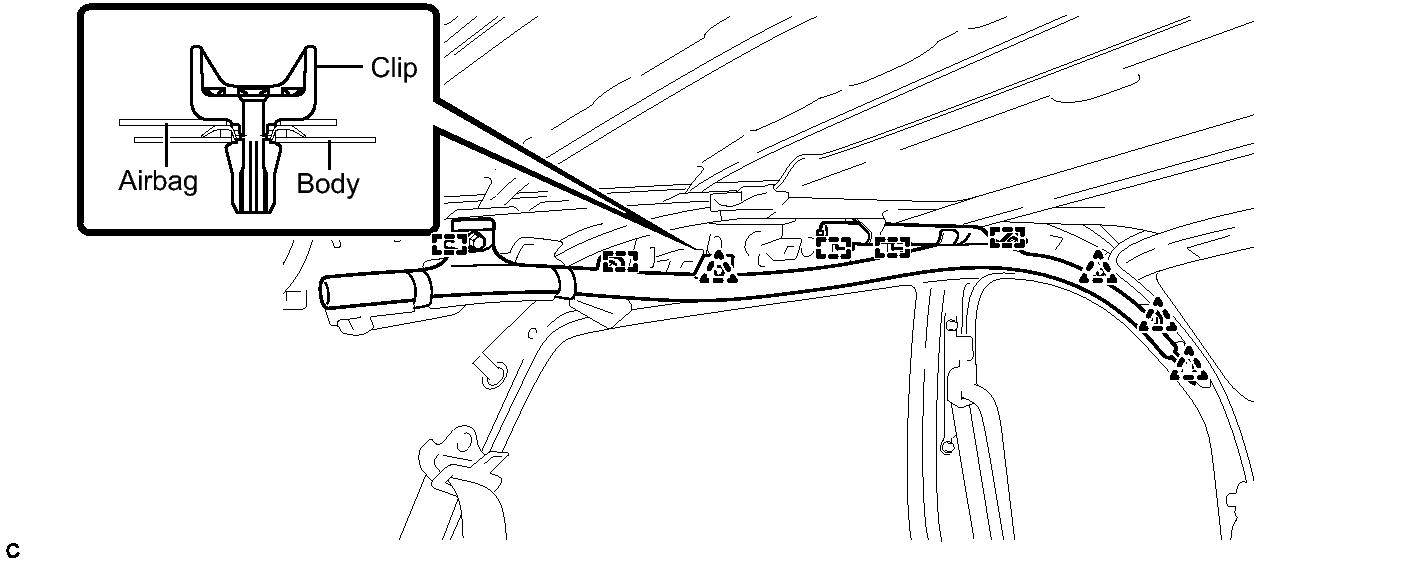

   Fig 1: Identifying Curtain Shield Airbag Assembly Hooks

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install 4 new pins as shown in the illustration.
   NOTE:

   Make sure that the pins of the clips are pushed in firmly.

6. Install the 5 bolts.

   Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

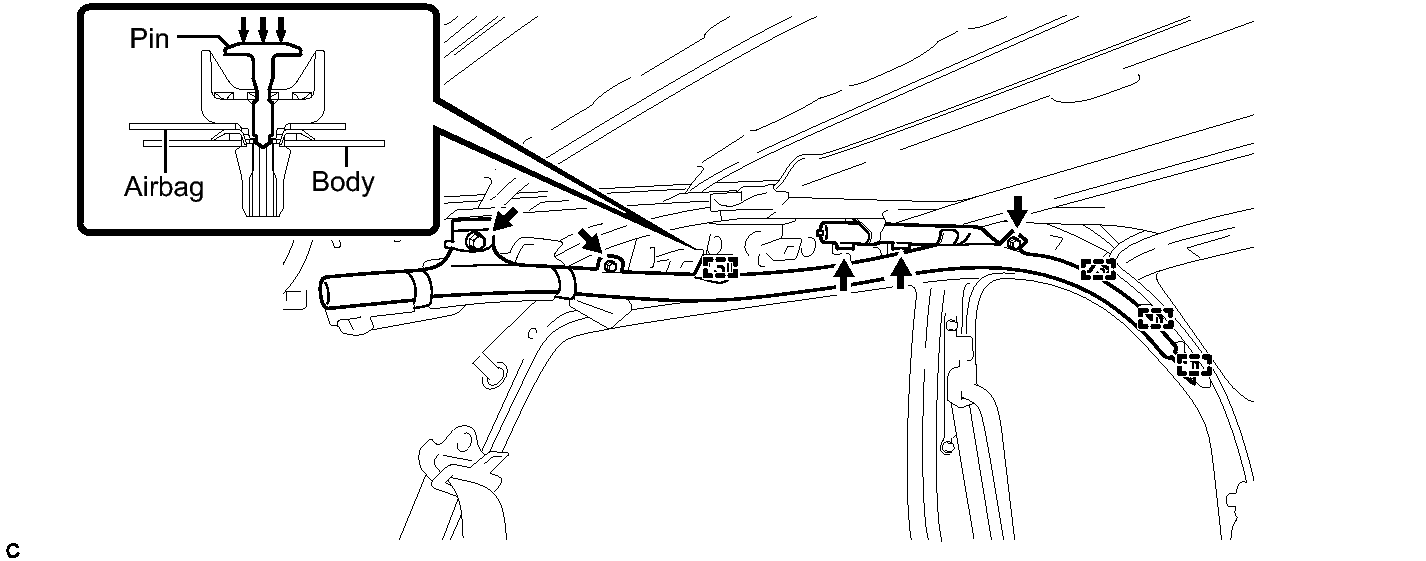

   Fig 2: Identifying Curtain Shield Airbag Assembly Pins

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Connect the curtain shield airbag connector.
   NOTE:

   When connecting the airbag connector, take care not to damage the airbag wire harness.

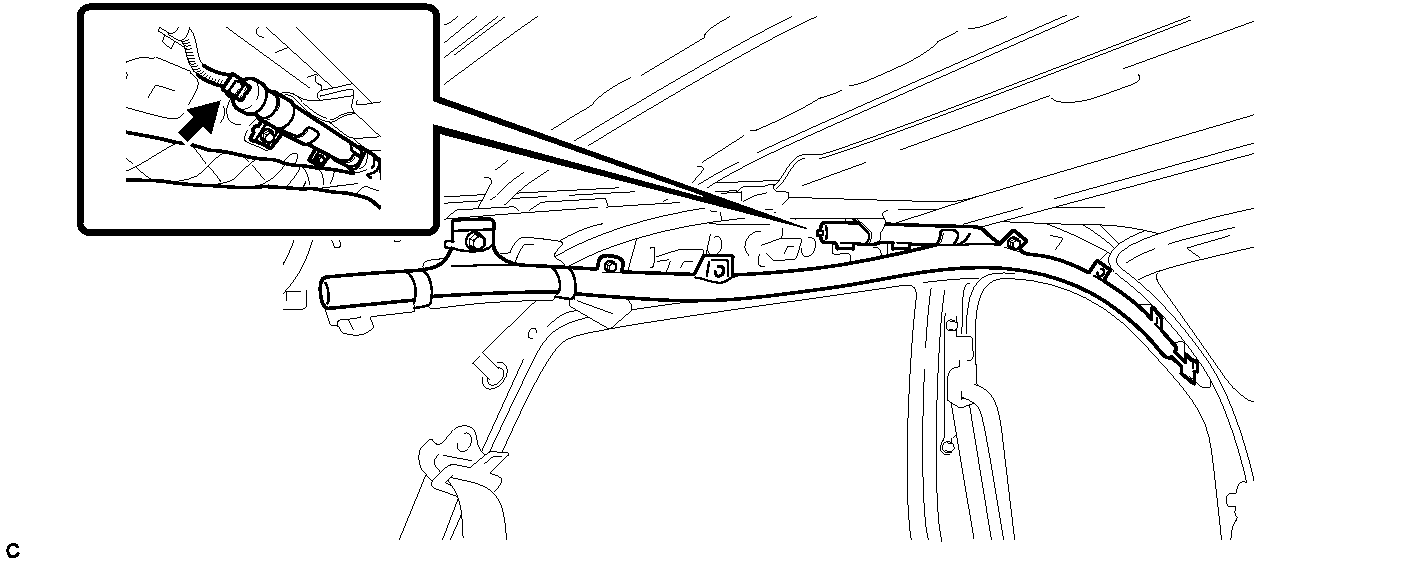

   Fig 3: Locating Curtain Shield Airbag Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Refer to the procedure from Install Roof Headlining Assembly. Refer to INSTALLATION .
