Clutch Switch: Installation: Installation

  1. INSTALL CLUTCH SWITCH (CRUISE CONTROL CANCEL SWITCH ASSEMBLY)
    1. Temporarily install the clutch switch (cruise control cancel switch assembly) with the nut.

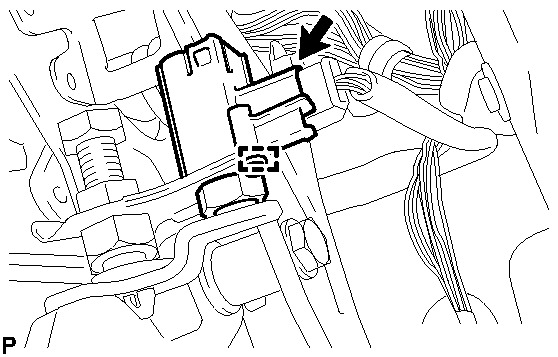

      Fig 1: Locating Clutch Switch Connector And Pin
      GTY236694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the pin and tighten the nut.

      Torque: 16 N*m (160 kgf*cm, 12 ft.*lbf)

    3. Connect the connector.
