Parts Location: Illustration

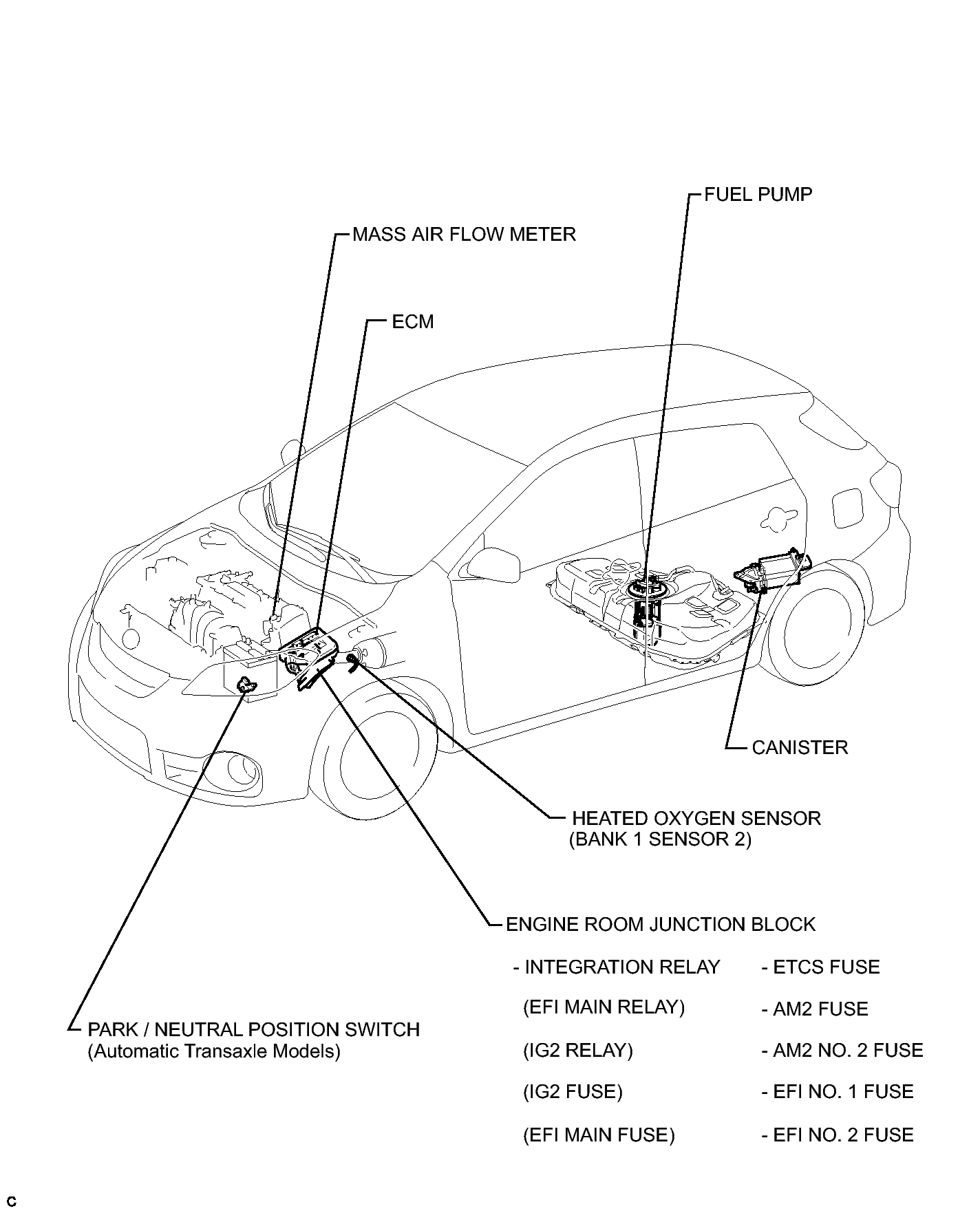

Fig 1: Identifying SFI System Components Location (1 Of 3)
GTY290064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying SFI System Components Location (2 Of 3)
GTY237686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying SFI System Components Location (3 Of 3)
GTY322542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
