ECU Power Source Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

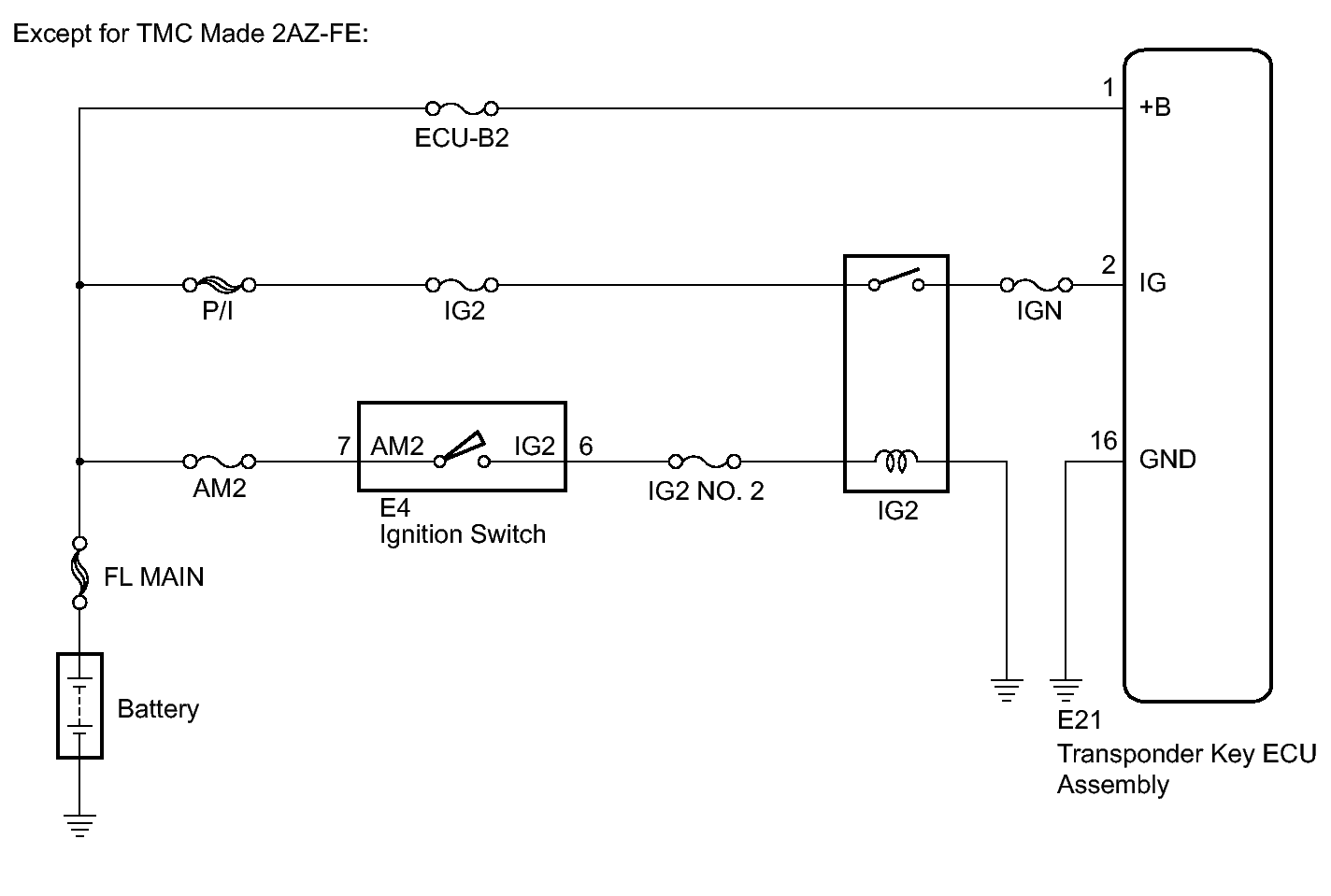

Fig 1: ECU Power Source Circuit Wiring Diagram (Except TMC Made 2AZ-FE
GTY187097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

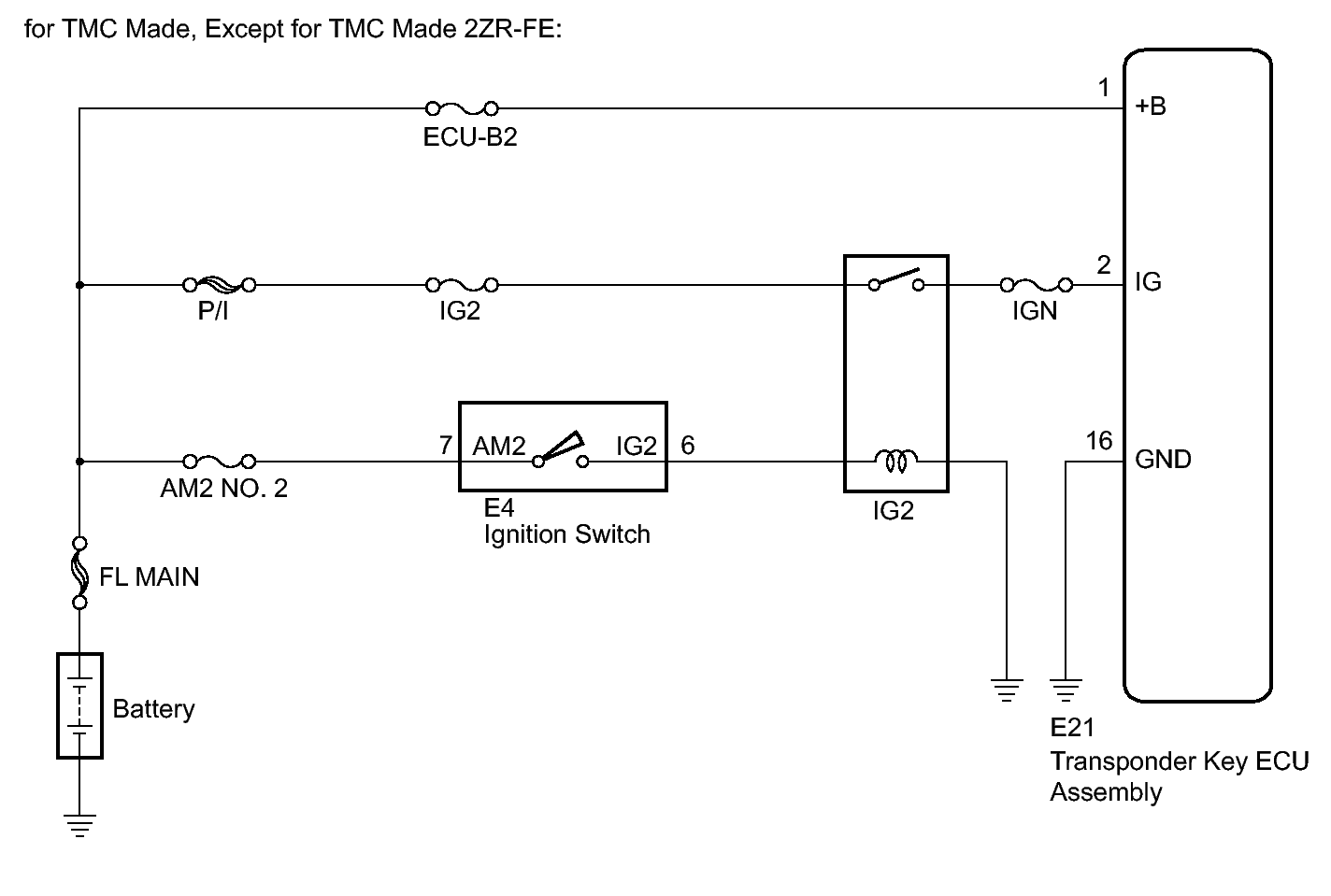

Fig 2: ECU Power Source Circuit Wiring Diagram (TMC Made Except TMC Made 2ZR-FE)
GTY168064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
